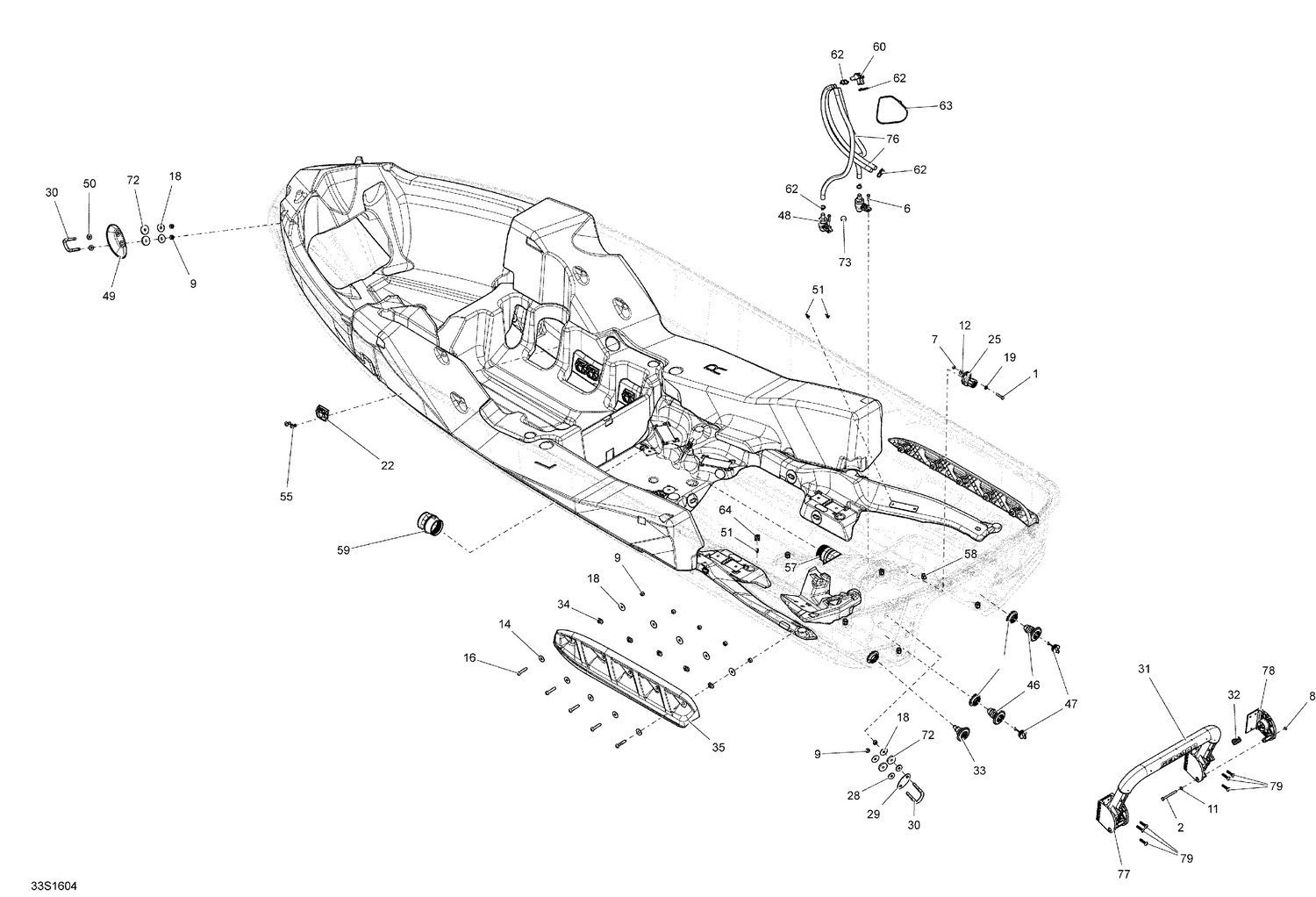

09- Hull
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207063060 | Hex. Screw M6 X 30 |
| 2 | 207066560 | Hex. Screw M6 x 65 |
| 6 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 7 | 232561200 | Brass Elastic Stop Nut M6 |
| 8 | 232561600 | Hex. Elastic Stop Nut M6 |
| 9 | 232581200 | Hex. Elastic Nut M8 Brass |
| 11 | 234061600 | Stainless Flat Washer M6 |
| 12 | 234062600 | Flat Washer M6, Stainless |
| 16 | 250000452 | Torx Screw M8 X 40, Stainless |
| 18 | 234082600 | Flat Washer 8 mm, Stainless |
| 18 | 250200175 | Flat Washer 8 mm, Stainless This part replaces 250200011. |
| 19 | 250200114 | Sealing Washer |
| 22 | 270000933 | Strap Retaining |
| 25 | 277001881 | Cable Adaptor Ass'y |
| 28 | 279000336 | Flat Washer This part replaces 279000164. |
| 29 | 291001386 | Black, Finition Plate |
| 30 | 292000933 | U-Clamp |
| 31 | 292001204 | Overmolded Bar |
| 32 | 292001259 | Spring |
| 33a | 292001825 | Plastic Nut |
| 34 | 292001349 | Spacer Sponson |
| 35 | 292001877 | LH Sponson |
| 35 | 292001878 | RH Sponson |
| 46 | 292001580 | Drain Ass'y |
| 46a | 292001825 | Plastic Nut |
| 47 | 292002022 | Plug Ass'y This part replaces 292001583. |
| 48 | 292001636 | Bailer Pick-up Ass'y |
| 49 | 292001867 | BOW CUP - Call your local BRP dealership |
| 50 | 293050001 | Flat Washer M8.5 x 18 |
| 51 | 293150037 | Avdel Rivet 3/16" |
| 55 | 293150123 | Pop Rivet 3/16" |
| 57 | 293450309 | Outer Hull Insert |
| 58 | Not | Available As Spare Part - Hull Insert |
| 59 | 293450355 | HULL INSERT - Call your local BRP dealership |
| 60 | 293710152 | Fitting Elbow 90° |
| 62 | 293750001 | Tie Wrap 94 mm |
| 63 | 293750008 | Tie Wrap 368 mm |
| 64 | 293750026 | Tie Rap Mount |
| 72 | 293830037 | Rubber Washer |
| 73 | 293830080 | Floating Ball |
| 76 | 219704356 | Was 275500008 Hose 12 mm |
| 77 | 292001509 | A Section Support |
