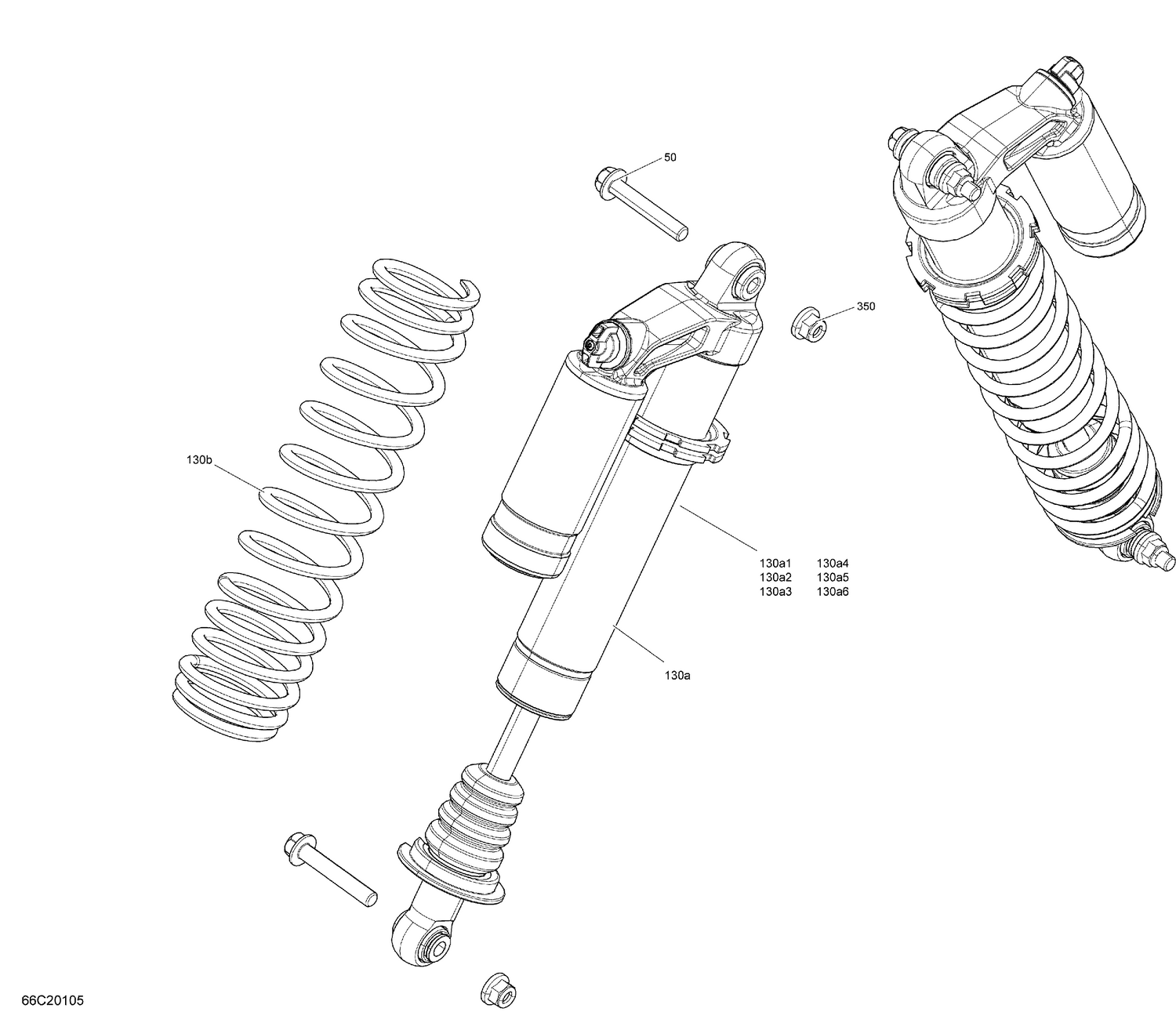

07- Front Shocks - LTD
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 50 | 207607046 | Hex. Flange Screw M10 X 70 |
| 130a | 706202741 | Front Shock |
| 130a1 | 715900329 | Spherical Bearing |
| 130a2 | 715900336 | Ball Journal |
| 130a3 | 715900331 | Protector |
| 130a4 | 715900268 | O-Ring Bushing |
| 130a5 | 715900252 | Retaining Ring |
| 130a6 | 715900476 | Reducer |
| 130b | 706203004 | Black, Front Spring |
