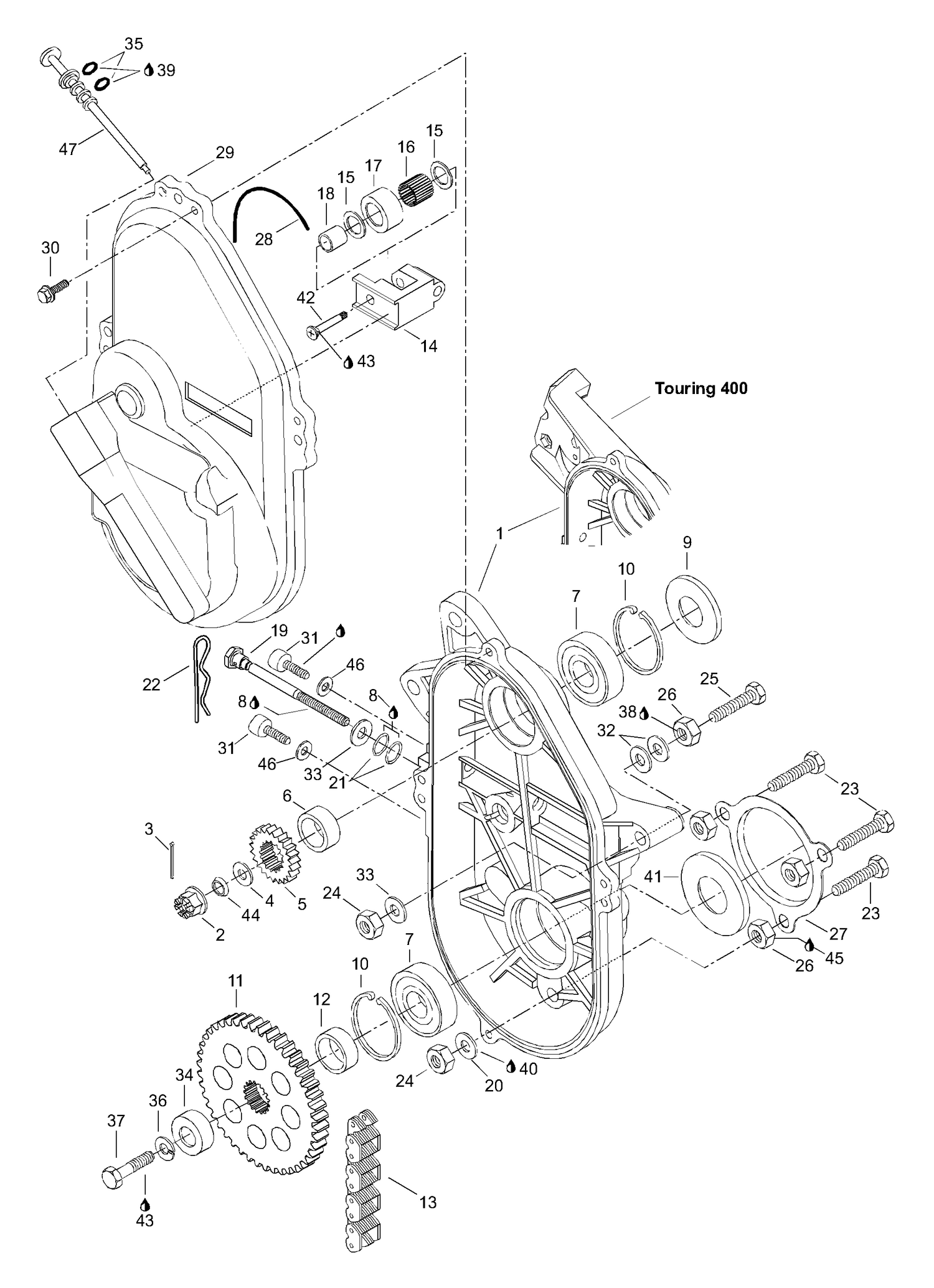

| Ref | Part Number | Description |
|---|
| 1 |
504151785 |
Chaincase |
| 2 |
232210414 |
HEX. CASTELLATED NUT M16 - Call your local BRP dealership |
| 3 |
371801300 |
Cotter pin |
| 4 |
504087100 |
Washer |
| 6 |
504093400 |
Shim |
| 7 |
293350115 |
Ball Bearing This part replaces 405404400. |
| 8 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
| 9 |
414882800 |
OIL SEAL - Call your local BRP dealership |
| 10 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 11 |
504070900 |
Sprocket (44-tooth) |
| 12 |
504146400 |
Bushing |
| 13 |
504151882 |
DRIVING CHAIN 70 M - Call your local BRP dealership |
| 14 |
504081000 |
MACHINED TENSIONER - Call your local BRP dealership |
| 15 |
504080300 |
WASHER - Call your local BRP dealership |
| 16 |
405403000 |
NEEDLE BEARING - Call your local BRP dealership |
| 17 |
414531300 |
ROLLER - Call your local BRP dealership |
| 18 |
504080200 |
SPACER - Call your local BRP dealership |
| 19 |
732601311 |
ADJUSTING SCREW - Call your local BRP dealership |
| 20 |
20073 |
Gasket-ring |
| 21 |
414484400 |
O-ring |
| 22 |
414575600 |
Hair Pin |
| 23 |
40862 |
Screw M10x45 |
| 24 |
33082 |
Nut elastic M10 |
| 25 |
40043 |
Screw M10x70 |
| 26 |
504083800 |
Spacer |
| 27 |
501022100 |
Protector |
| 28 |
414362300 |
O-ring |
| 29 |
080037100 |
CASTING COVER - Call your local BRP dealership |
| 30 |
40867 |
Self tapping s. M6x30 |
| 31 |
Not |
Available As Spare Part - Allen screw M8x10 - DOES NOT APPLY TO THIS MODEL |
| 32 |
504073700 |
WASHER - Call your local BRP dealership |
| 33 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 34 |
501026200 |
CAP - Call your local BRP dealership |
| 35 |
414969400 |
O-RING - Call your local BRP dealership |
| 36 |
20113 |
Spring washer |
| 37 |
40040 |
Screw M10x25 |
| 38 |
293800060 |
Loctite 243, 10ml |
| 39 |
413803300 |
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 40 |
413702700 |
Adhesive LOCTITE 515 - Call your local BRP dealership |
| 41 |
504152076 |
Seal Oil Ass'Y This part replaces 581101700. |
| 42 |
732601144 |
SCREW - Call your local BRP dealership |
| 43 |
293800005 |
Loctite 271, 10ml |
| 44 |
417000900 |
Spring washer |
| 45 |
413705400 |
Loctite 270 |
| 46 |
Not |
Available As Spare Part - Gasket ring - DOES NOT APPLY TO THIS MODEL |
