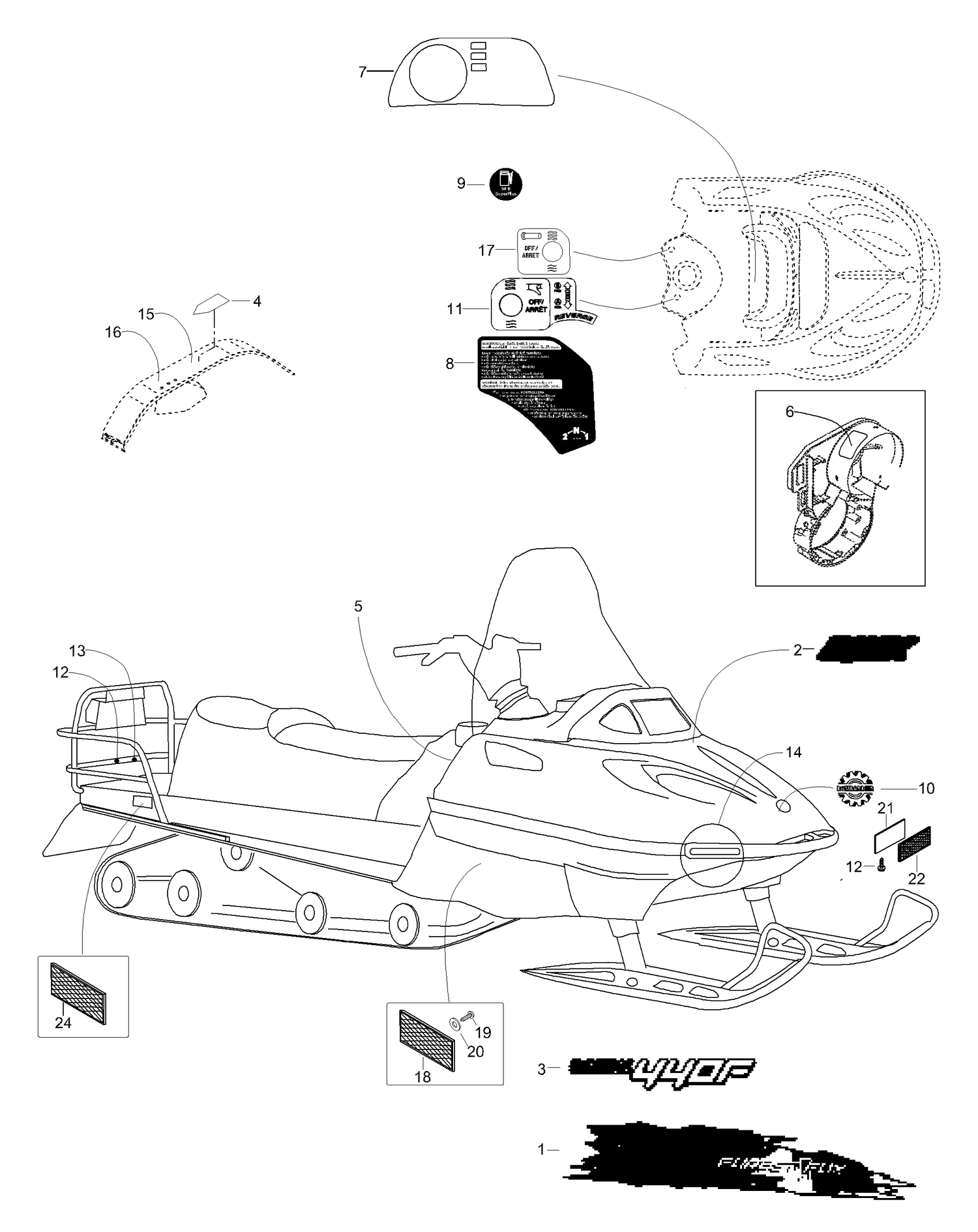

09- Decals
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605349630 | Hood side decal R.H. |
| 1 | 605349631 | Hood side decal L.H. |
| 2 | 605349632 | Front decal, hood |
| 3 | 605349633 | Label, ROTAX 443 |
| 4 | 5447014 | Belt Quart Decal |
| 5 | 5447012 | Label, oil check |
| 6 | 5447016 | Fan Belt Decal |
| 7 | 5346239 | Dash decal |
| 8 | 5346801 | Dash decal |
| 9 | 5447019 | Fuel decal |
| 10 | 516008738 | Logo 48mm "BRP" This part replaces 516000983. |
| 11 | 516000262 | Heat thump decal |
| 12 | 5447930 | Instruction decal |
| 13 | 605448799 | PULLING BAR DECAL - Call your local BRP dealership |
| 14 | 861805523 | Kit Yellow Rear Reflector This part replaces 418001009. |
| 15 | 5447124 | Instruction decal |
| 16 | 605448801 | Instruction decal |
| 17 | 414898500 | Heat grip decal |
| 18 | 414510200 | REFLECTOR, AMBER - Call your local BRP dealership |
| 19 | 40070 | Slot sc. M5 x 10DIN7985m4.6Zne(1=10pcs) - Call your local BRP dealership |
| 20 | 20018 | Washer |
| 21 | 5446916 | Bracket |
| 22 | 21118 | Reflector, bright |
| 23 | 40888 | Screw |
