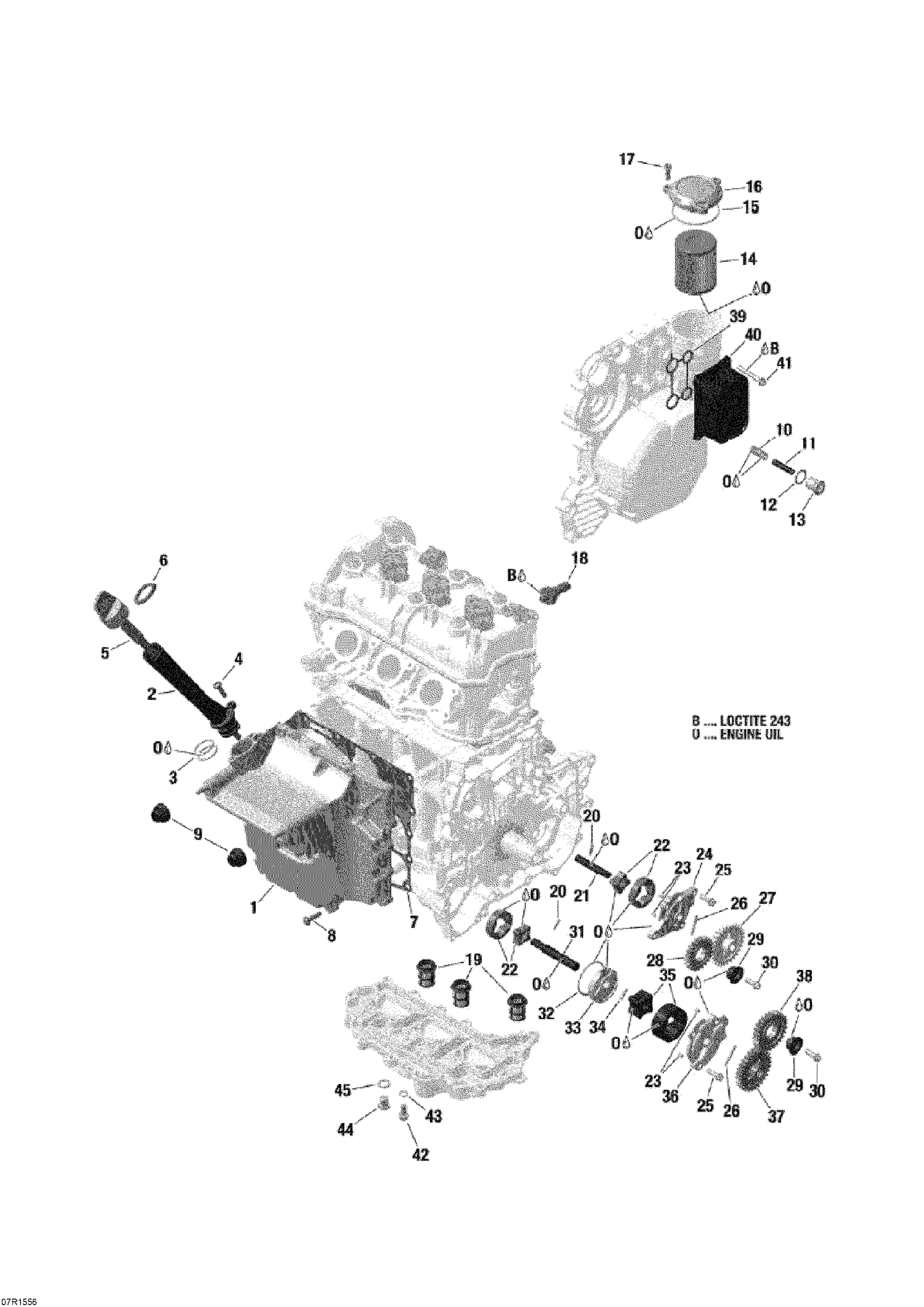

02- Engine Lubrication _07R1556
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| B | Not | Available As Spare Part - Loctite 243, 10 ml |
| 1 | 420656700 | COVER - Call your local BRP dealership |
| 2 | 420656900 | Oil Filler Tube |
| 4 | 420441386 | Torx Flange Screw M6 X 20 |
| 8 | 420841549 | Torx Flange Screw M6 X 25 |
| 9 | 420860150 | Rubber Grommet |
| 10 | 420256591 | Pressure Regulating Piston This part replaces 420256517. |
| 11 | 420239445 | Spring |
| 13 | 420441372 | Plug Screw |
| 14 | 420956124 | Oil Filter |
| 16 | 420612135 | Oil Filter cover This part replaces 420612132. |
| 17 | 420440207 | Torx Flange Screw M6 X 20 |
| 18 | 420256915 | Oil Pressure Switch |
| 19 | 420656680 | Oil Sieve |
| 20 | 420232731 | Needle Pin |
| 21 | 420820120 | Oil Pump Shaft |
| 22 | 420256348 | Oil Pump Rotor |
| 23 | 420929075 | Needle Pin |
| 24 | 420911080 | Oil Pump Cover |
| 25 | 420440207 | Torx Flange Screw M6 X 20 |
| 26 | 420232431 | Needle Pin |
| 27 | 420834882 | Oil Pump Gear, 29 Teeth |
| 28 | 420835400 | Gear 22 Teeths This part replaces 420835054. |
| 29 | 420947394 | Spacer |
| 30 | 420440207 | Torx Flange Screw M6 X 20 |
| 31 | 420837916 | Oil Pump Shaft |
| 33 | 420611950 | Oil Pump Cover |
| 34 | 420632221 | Needle Pin This part replaces 420632220. |
| 35 | 420256836 | Oil Pump Rotor |
| 36 | 420611980 | Oil Pump Cover |
| 37 | 420834887 | Oil Pump Gear, 28 Teeth |
| 38 | 420835321 | Idle Gear, 26 Teeth This part replaces 420835320. |
| 40 | 420656698 | Oil Water Heat Exchanger This part replaces 420656697. |
| 41 | 420440324 | Torx Flange Screw M6 X 45 |
| 42 | 420440852 | Torx Flange Screw M8 X 16 |
| 44 | 420241701 | Plug Screw M12 x 1,5 This part replaces 420241700. |
