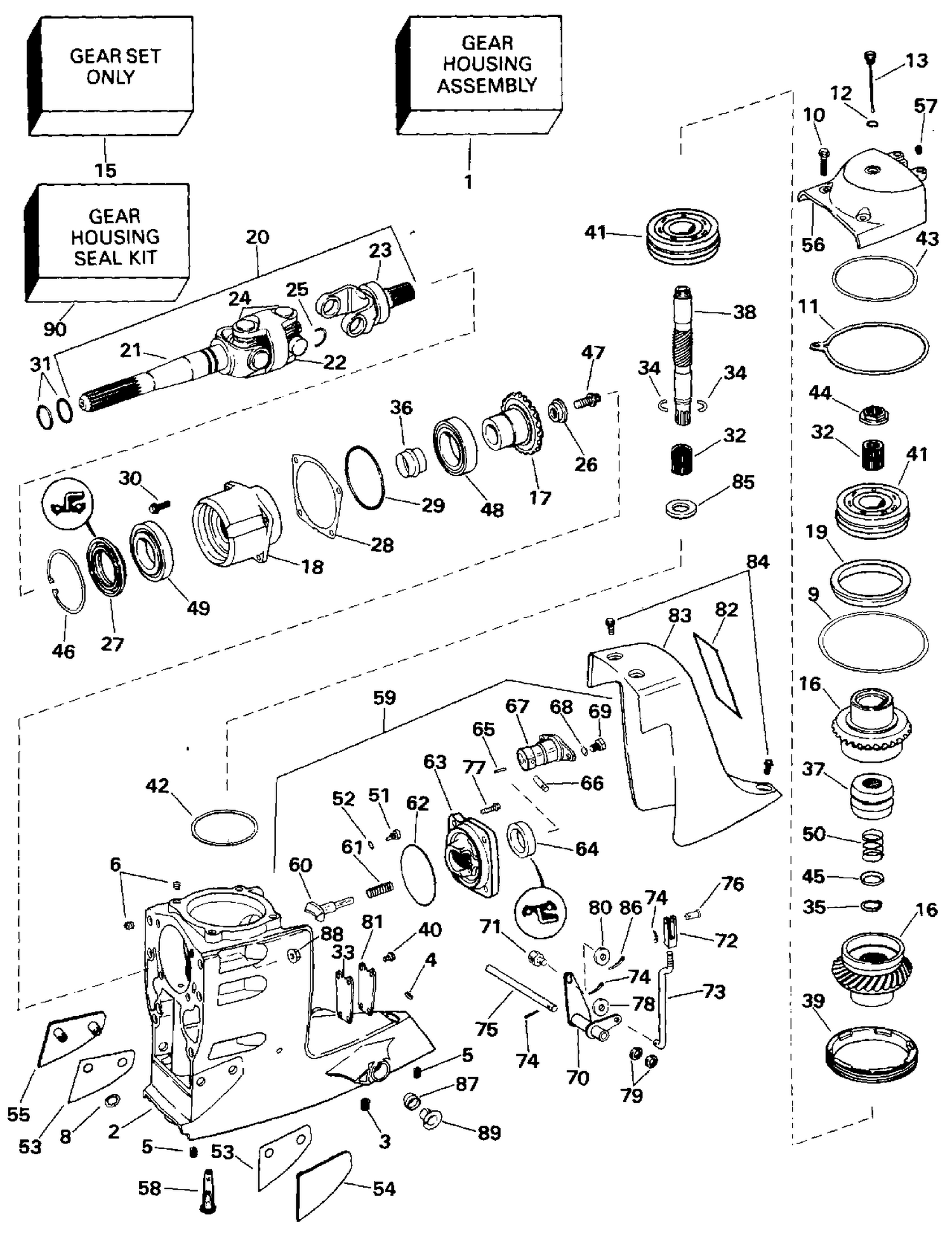

UPPER GEAR HOUSING

UPPER GEAR HOUSING

Parts (99)

RefPart NumberDescription
1 3857007 GEAR HOUSING ASSY., 22:23 This part replaces 3850966.
2 3854389 GEAR HOUSING & INSERTS
3 3852541 INSERT, 7/16 -14
4 3852567 INSERT
5 0910935 INSERT, 3/8-16 This part replaces 3852515.
6 0910901 INSERT This part replaces 3852513.
8 0910953 RETAINER RING, Thrust plate This part replaces 3852516.
9 3852363 SHIM, Upper bearing, 0.002 in.
9 3852364 SHIM, Upper bearing, 0.003 in.
9 3852365 SHIM, Upper bearing, 0.004 in.
9 3852366 SHIM, Upper bearing, 0.005 in.
9 3852367 SHIM, Upper bearing, 0.010 in.
10 3850629 SCREW, Top cover
11 3852317 GASKET, Top cover
13 3852297 ROD, Oil indicator
16 DRIVE GEAR
17 PINION GEAR
18 3852267 BEARING CARRIER, Pinion
19 3852269 RING, Upper bearing support
20 3860842 U-Joint Ay This part replaces 3852384.
21 0912212 SHAFT, Yoke This part replaces 3850815.
22 0912213 DOUBLE CENTER This part replaces 3850813.
23 3850814 STUB, Yoke
24 3850812 U-JOINT
25 3850757 RETAINER, U-joint
26 3852310 RETAINER, Pinion gear
27 3852272 SEAL, U-joint to bearing carrier
28 3852355 SHIM, Bearing carrier, 0.003 in.
28 3852356 SHIM, Bearing carrier, 0.004 in.
28 3852357 SHIM, Bearing carrier, 0.005 in.
28 3852358 SHIM, Bearing carrier, 0.010 in.
29 3852308 O-RING, Bearing carrier
30 0341013 SCREW, Cover This part replaces 3852454.
31 3852565 O-RING, U-joint
32 3852390 BEARING, Drive gear
33 3852279 GASKET, Water passage
34 3852295 C-CLIP, Upper driveshaft
35 3852299 C-CLIP, Spring
36 3852304 SLEEVE, Pretension
38 3852292 DRIVESHAFT, Upper
39 3852262 RING, Bearing retainer
40 3852373 SCREW, Water passage
41 3857176 BEARING, Drive gear This part replaces 3852389.
42 3852368 SHIM, Lower bearing, 0.002 in.
42 3852369 SHIM, Lower bearing, 0.003 in.
42 3852370 SHIM, Lower bearing, 0.004 in.
42 3852371 SHIM, Lower bearing, 0.005 in.
42 3852372 SHIM, Lower bearing, 0.010 in.
43 3852368 SHIM, Lower bearing, 0.002 in.
43 3852369 SHIM, Lower bearing, 0.003 in.
43 3852370 SHIM, Lower bearing, 0.004 in.
43 3852371 SHIM, Lower bearing, 0.005 in.
43 3852372 SHIM, Lower bearing, 0.010 in.
44 3852301 NUT, Upper driveshaft, 0.000 in.
44 3852302 NUT, Upper driveshaft, 0.008 in.
44 3852303 NUT, Upper driveshaft, 0.016 in.
44 3852375 NUT, Upper driveshaft, 0.024 in.
45 3852298 SPACER, Spring
46 3852307 C-CLIP, Seal
47 3852309 SCREW, Pinion gear retainer
48 3850852 BEARING, Pinion to inner carrier
49 3850853 BEARING, Pinion to outer carrier
50 3852296 SPRING, Clutch cone to shaft
51 3854539 SCREW, Gearcase plug This part replaces 3852152.
53 3852563 SHIM, Thrust plate, 0.015 in.
54 3852561 PLATE, Thrust, port
55 3852562 PLATE, Thrust, starboard
56 3854401 COVER, Upper gearcase, top This part replaces 3852388.
57 3852567 INSERT
58 3854021 Screen Ay
59 3857012 Shift Ay This part replaces 3852410.
60 0839646 SHOE, Shift
61 0814184 SPRING, Shift shoe
62 0925093 O-RING, Shift actuator
63 3855785 HOUSING, Shift actuator This part replaces 0839505.
64 0853858 SEAL, Shift actuator
65 0951924 PIN, Tension
66 0942871 PIN, Eccentric piston
67 3856008 PISTON, Eccentric This part replaces 0897816.
68 0897871 SHIM, Shift shoe stop
69 0897711 SCREW, Shift shoe stop
70 3857460 ROD & BRACKET, Shift This part replaces 3852276.
71 3852329 CUBE, Cable to bellcrank
72 3852328 FORK, Shift link
73 3852278 LINK, Bellcrank to piston
75 3852277 PIN, Bellcrank
76 3852330 PIN, Shift link to piston
77 3856742 SCREW, Shift housing This part replaces 3852353.
78 0329241 RONDELLE This part replaces 3852193.
80 3854184 WASHER, Shift
81 3852280 PLATE, Water passage
82 3850518 DECAL, Cover
83 3852386 COVER, Gear housing, rear
84 3852568 SCREW, Cover
85 3852294 RING, Spacer
86 0302858 GOUPILLE, fendue - Tringlerie de verrouillage de marche arrière This part replaces 3854480.
87 3853424 GROMMET, Pivot pin
88 3853329 LOCKNUT, Transom plate
89 3853423 BUSHING, Pivot pin
