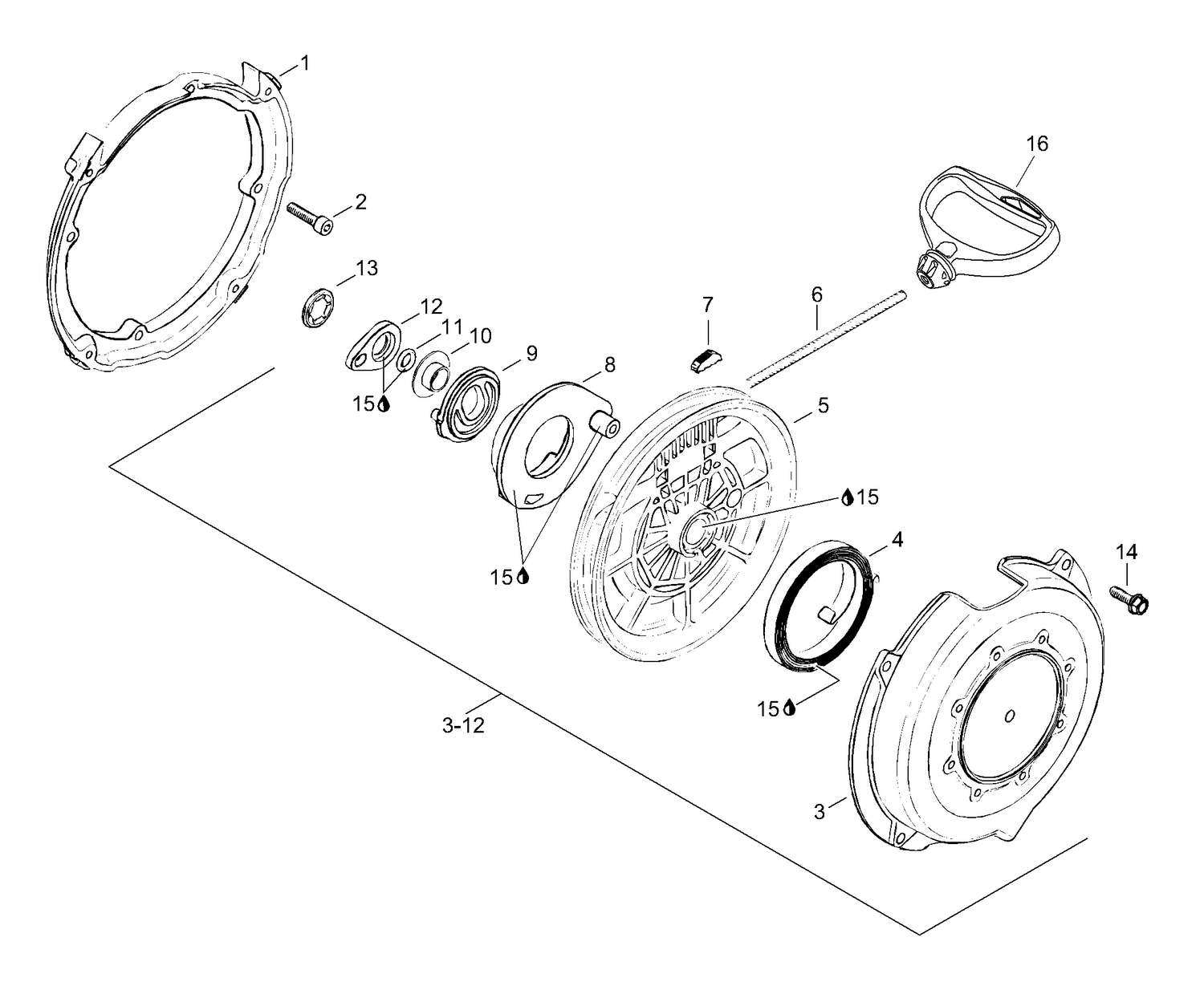

04- Rewind Starter
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420810955 | Connecting Flange This part replaces 420810952. |
| 2 | 420840403 | Socket Head Screw M6 X 22 This part replaces 420840401. |
| 3 | 420811340 | Starter housing assy |
| 4 | 420939115 | Rewind Spring Ass'y |
| 5 | 420852480 | Rope sheave |
| 6 | 412500100 | Starter rope (30 m) |
| 6 | 412500200 | Starter Rope This part replaces 420852491. |
| 7 | 420852070 | Key |
| 8 | 420852296 | Pawl |
| 9 | 420852305 | PAWL LOCK - Call your local BRP dealership This part replaces 420852303. |
| 10 | 420847926 | Stage Sleeve This part replaces 420847925. |
| 11 | 420250400 | O-ring |
| 12 | 420852520 | Lock lever |
| 13 | 420845560 | Locking element |
| 14 | 420941251 | SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 15 | 420897061 | Silicon compound |
