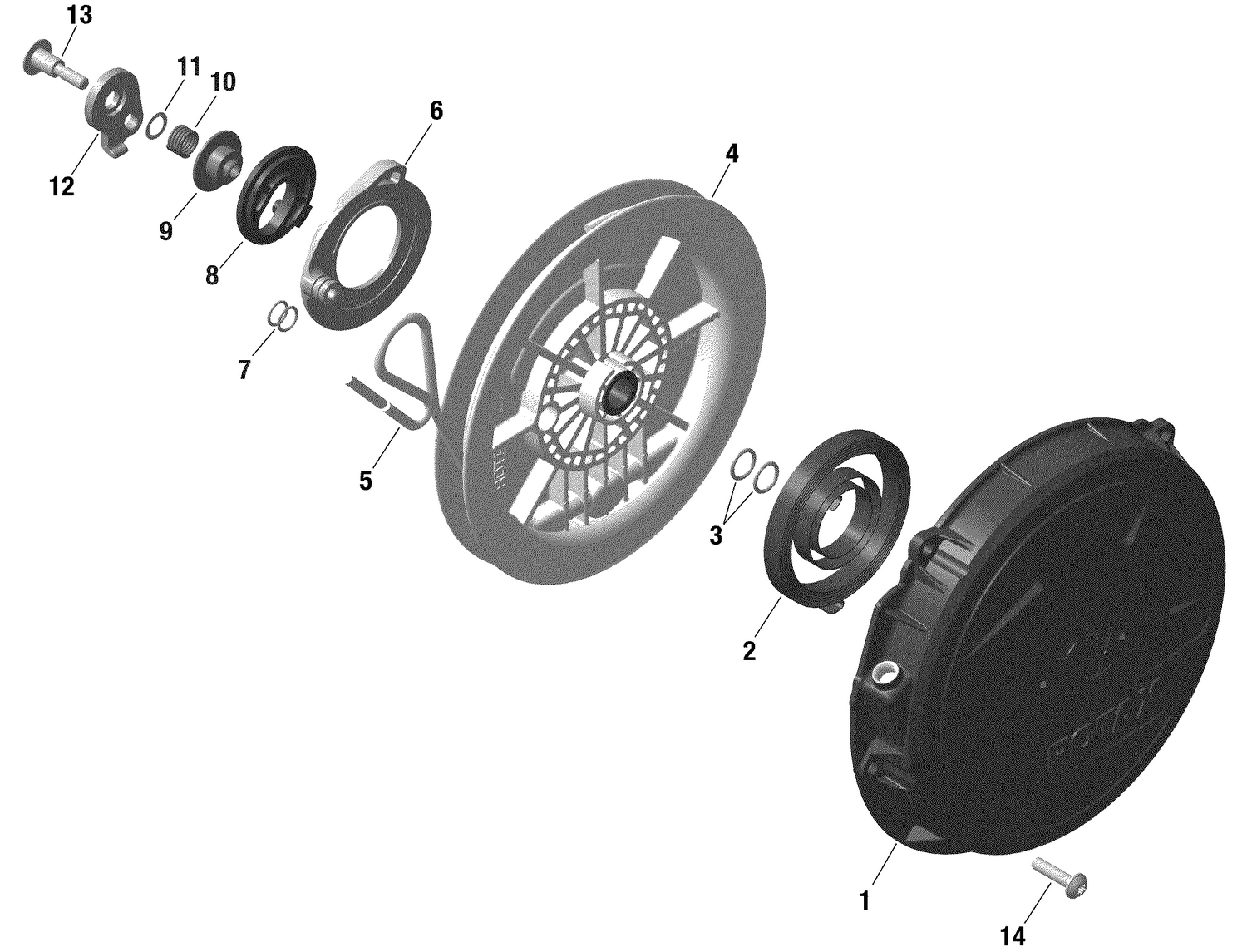

01- Rotax - Rewind Starter
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420912121 | Starter Housing |
| 2 | 420939115 | Rewind Spring |
| 3 | 420950811 | O-Ring |
| 4 | 420852015 | Sheave |
| 5 | 219704403 | Was 412500100 Rope-Starter |
| 7 | 420950951 | O-Ring |
| 8 | 420852640 | Pawl Lock |
| 9 | 420847928 | Step Collar |
| 10 | 420238962 | Compression Spring |
| 11 | 420227948 | Thrust Washer |
| 12 | 420852523 | Lock Lever |
| 13 | 420440502 | Bearing Screw M6 X 12.5 |
