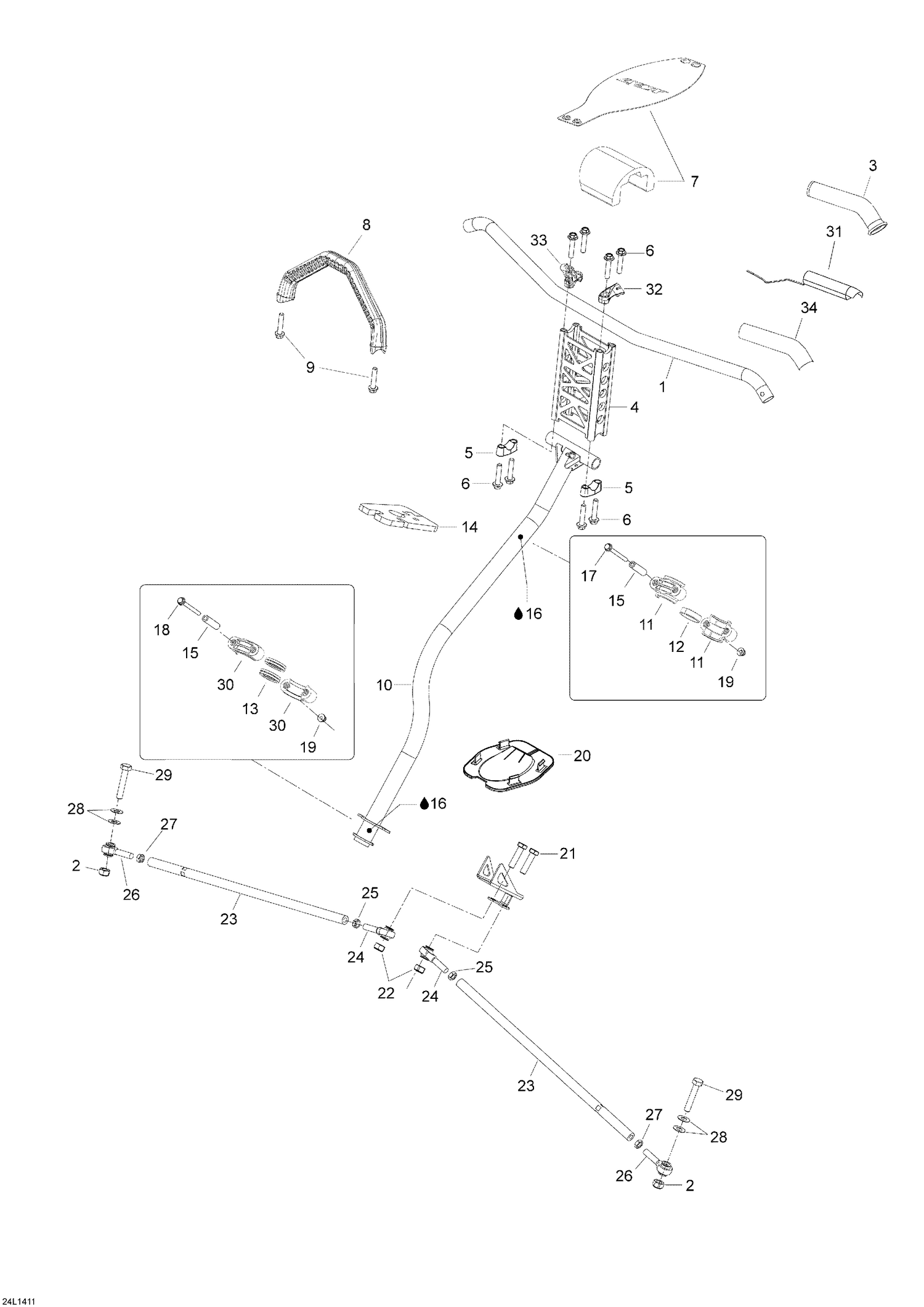

07- Steering System
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152723 | Black, Handle Bar |
| 2 | 232500416 | Elastic Stop Nut M10 |
| 3 | 506152486 | Grip |
| 4 | 506152530 | BLACK HANDLE BAR EXTENSION - Call your local BRP dealership |
| 5 | 506152751 | Steering Support This part replaces 506152395. |
| 6 | 250000285 | Hex Flanged Screw M8 x 40 |
| 7 | 506152649 | Steering Pad |
| 8 | 506152460 | Steering strap |
| 9 | 250000770 | Socket Head Screw M6 x 20 This part replaces 250000335. |
| 10 | 506152962 | Steering Column This part replaces 506152584. |
| 11 | 506152508 | Half-Housing Upper |
| 12 | 506152509 | VIBRAT. GASKET upper |
| 13 | 506152518 | Lower Vibration Ring |
| 14 | 506152404 | Cushion |
| 15 | 506152297 | Housing Bushing |
| 16 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 17 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 18 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 19 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 20 | 506152163 | Plate |
| 21 | 207004044 | Hex. Screw M10 X 40 |
| 22 | 232500416 | Elastic Stop Nut M10 |
| 23 | 506152498 | Tie Rod |
| 24 | 506152081 | Ball Joint (LH THREAD) |
| 25 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 26 | 506152019 | Ball Joint (RH THREAD) |
| 27 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 28 | 506152194 | Washer |
| 29 | 207005544 | Hex Screw M10 X 55 |
| 30 | 506152217 | Half housing lower |
| 31 | 506152798 | Element Chauff.*Heated Film This part replaces 506152665. |
| 32 | 506152556 | Support |
| 33 | 506152555 | Support |
