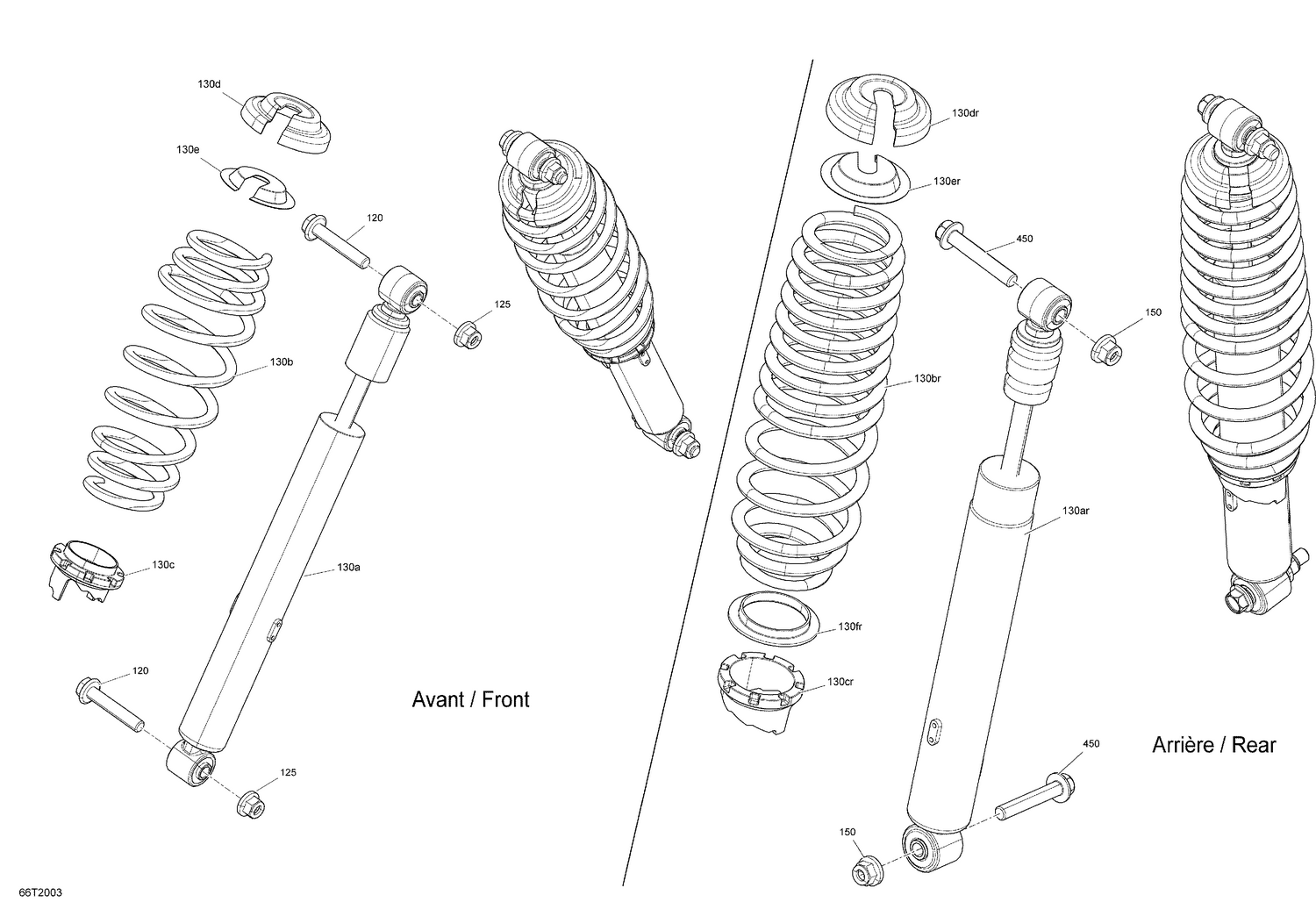

08- Shocks - Mossy Oak Edition
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 207605546 | Hex. Flange Screw M10 X 55 |
| 125 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 130a | 706201170 | Front Shock |
| 130ar | 706000958 | Rear Shock |
| 130b | 706202394 | Black, Spring |
| 130br | 706002427 | Black, Spring |
| 130c | 505073625 | Adjustment Cam |
| 130cr | 505073625 | Adjustment Cam |
| 130d | 706200881 | Spring Stopper |
| 130dr | 706200881 | Spring Stopper |
| 130e | 706200785 | Cap |
| 130er | 706200785 | Cap |
| 130fr | 503187500 | Spring Guide |
| 150 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
