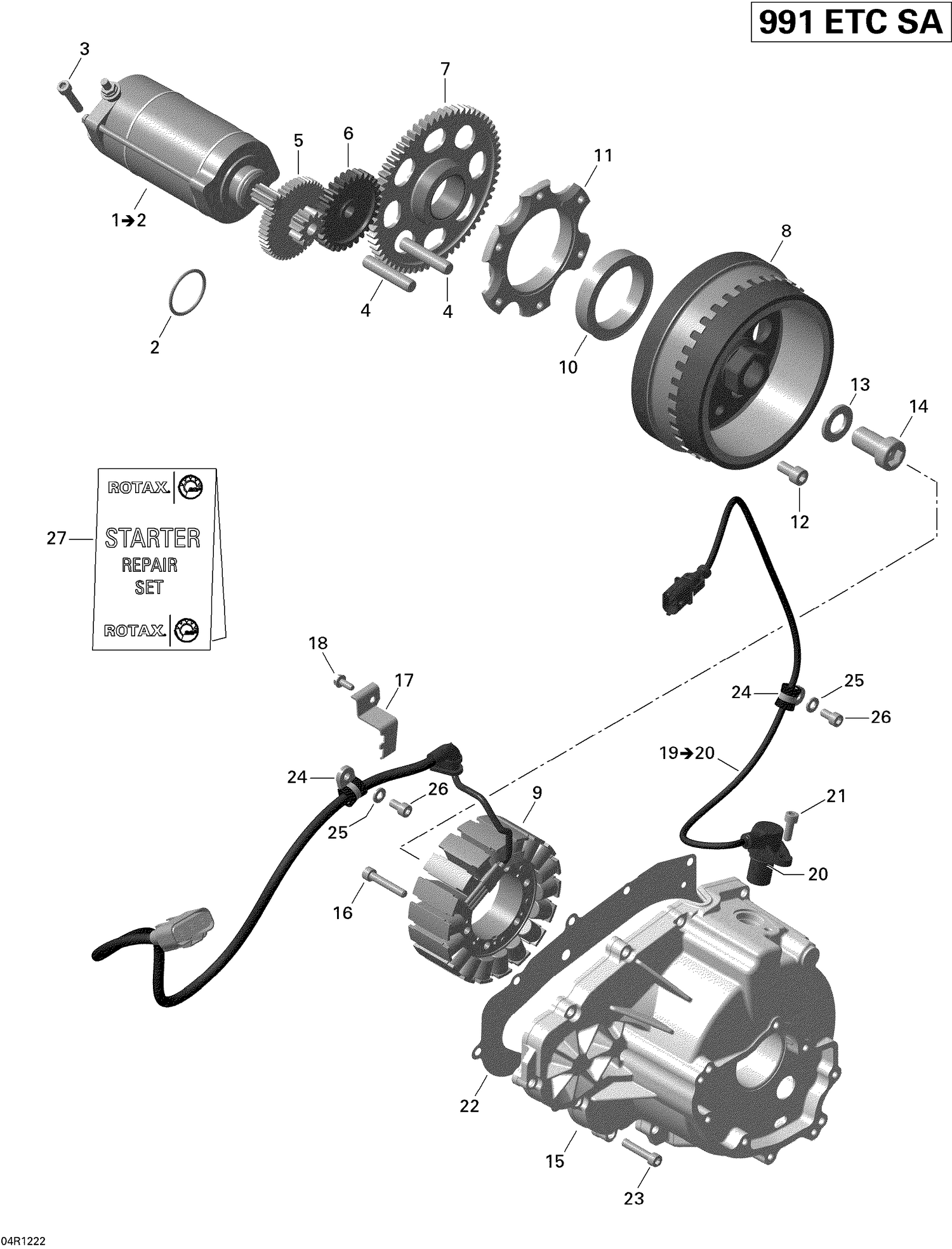

03- Magneto And Electric Starter
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420250140 | O-Ring |
| 3 | 420840882 | Allen Screw M6 X 30 |
| 4 | 420229302 | Location Pin 10 M6x50 |
| 5 | 420634741 | Starter Double Gear 11/49 T |
| 6 | 420634605 | Starter Intermediate Gear, 30 Teeth |
| 7 | 420634593 | Gear, 64 Teeth This part replaces 420634595. |
| 8 | 420685515 | Magneto |
| 9 | 420685500 | Stator Plate |
| 10 | 420659110 | Sprag Clutch |
| 11 | 420659129 | Clutch Sprag Housing This part replaces 420659124. |
| 12 | 420641594 | Socket Head Screw M8 X 16 This part replaces 420641590. |
| 13 | 420627270 | Shim |
| 14 | 420241542 | Socket Head Screw M16 X 30 This part replaces 420241540. |
| 15 | 420611315 | Ignition Cover |
| 16 | 420241813 | SOCKET HEAD SCREW M6 X 35, STAINLESS - Call your local BRP dealership |
| 17 | 420251165 | INNER CABLE COVER - Call your local BRP dealership |
| 18 | 420941935 | Taptite Screw M5 x 12 |
| 20 | 420431580 | O-Ring |
| 21 | 420241237 | Socket Head Screw M6 x 16 This part replaces 420241236. |
| 22 | 420650341 | Gasket |
| 23 | 205063044 | Socket Head Screw M6 X 30 |
| 24 | 414176000 | Open Clamp |
| 25 | 420827961 | FLAT WASHER - Call your local BRP dealership |
