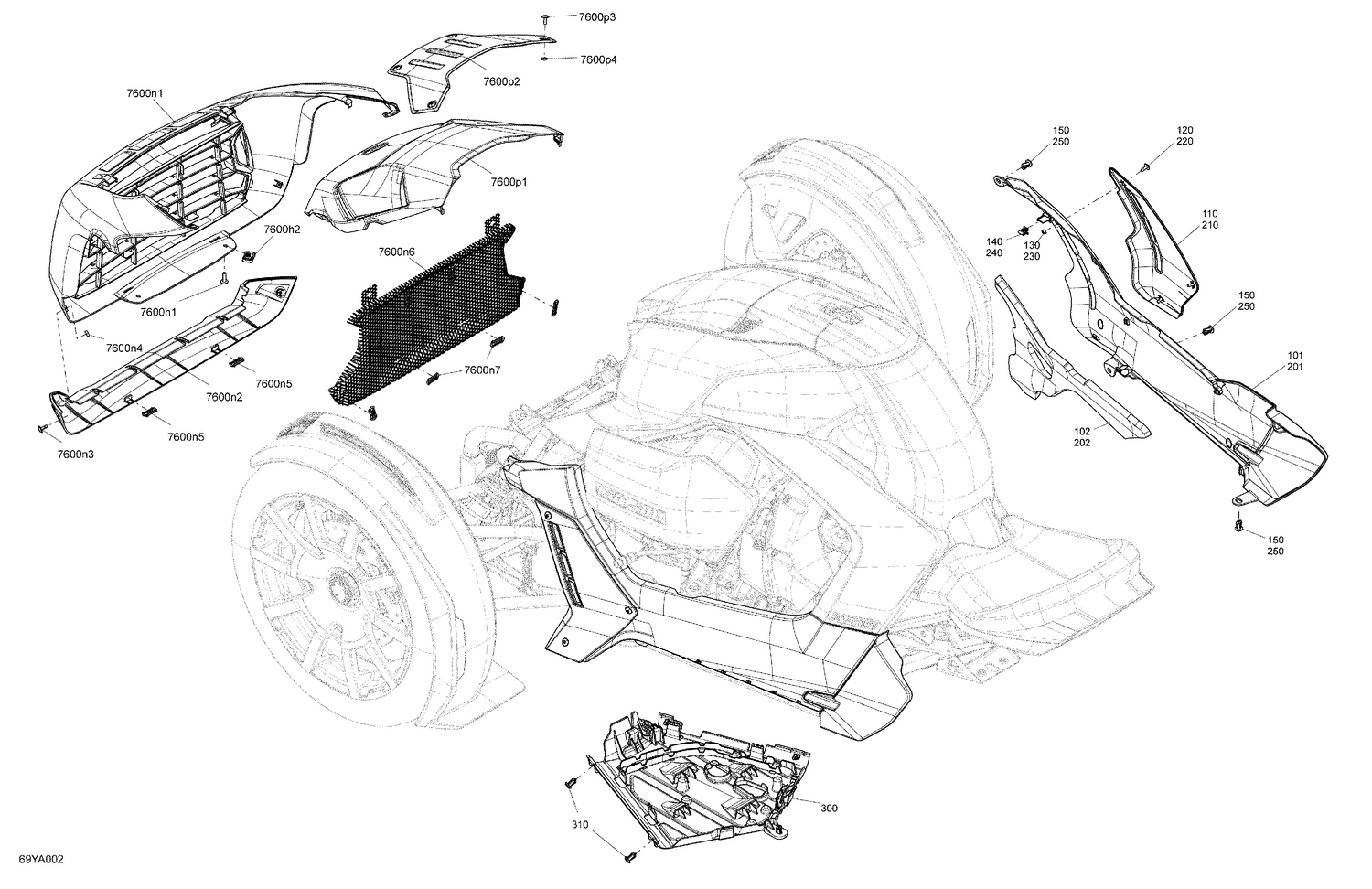

07- Body - Lower Section
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 101 | 219800526 | LH Rocker Panel Kit This part replaces 705013333. |
| 102 | 705013940 | LH Rocker Acoustic Foam |
| 110 | 705015739 | Sterling Silver Satin, LH Trim |
| 120 | 250001059 | Torx Truss Head Screw W Nylon M5X14 |
| 130 | 232852411 | Square Nut M5 X 0.8 |
| 140 | 517302785 | Edge Clip |
| 150 | 293150230 | Tuflok Plastic Rivet |
| 201 | 219800527 | RH Rocker Panel Kit This part replaces 705013334. |
| 202 | 705013941 | Acoustic Foam |
| 210 | 705015740 | Sterling Silver Satin, RH Trim |
| 220 | 250001059 | Torx Truss Head Screw W Nylon M5X14 |
| 230 | 232852411 | Square Nut M5 X 0.8 |
| 240 | 517302785 | Edge Clip |
| 250 | 293150230 | Tuflok Plastic Rivet |
| 300 | 705012364 | Skid Plate |
| 310 | 293150230 | Tuflok Plastic Rivet |
| 7600h1 | 250000722 | Torx Screw M6 X 20 |
| 7600h2 | 250100208 | Panel Nut M6 X 1.0 |
| 7600n1 | 705013345 | Deep Black, Front Fascia |
| 7600n2 | 705013450 | Front Trim, Sterling Silver Satin |
| 7600n3 | 250001059 | Torx Truss Head Screw W Nylon M5X14 |
| 7600n4 | 232852411 | Square Nut M5 X 0.8 |
| 7600n5 | 705004838 | Flat Clip |
| 7600n6 | 705013347 | Black Epoxy, Protective Steel Grille |
| 7600n7 | 705004838 | Flat Clip |
| 7600p1 | 705013349 | Deep Black, Hood |
| 7600p2 | 705013451 | Hood Accent, Sterling Silver Satin |
| 7600p3 | 250001059 | Torx Truss Head Screw W Nylon M5X14 |
