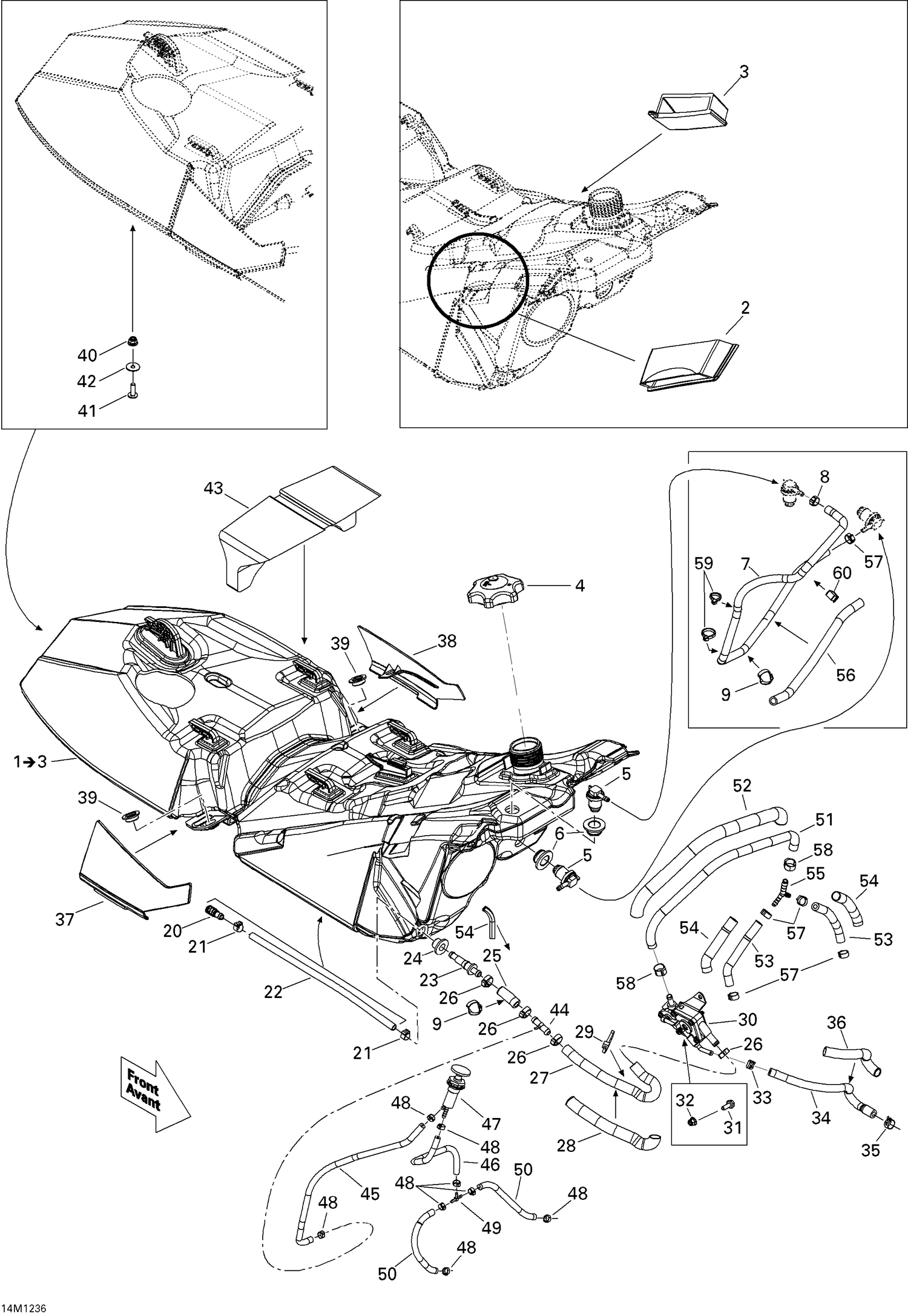

02- Fuel System
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 513033471 | RH Panel Clip |
| 3 | 513033472 | LH Panel Clip |
| 4 | 513033752 | Fuel Tank Cap This part replaces 513033103. |
| 5 | 513033859 | Remote Vent This part replaces 513033517. |
| 6 | 513033596 | Grommet |
| 7 | 513033565 | Hose |
| 8 | 293650025 | Oetiker Gear Clamp |
| 9 | 414115200 | Tie-Rap 180 mm |
| 20 | 414872100 | Fuel Filter Strainer |
| 21 | 513033010 | Norma Spring Clamp |
| 22 | 219704391 | Polyurethane Hose 1000mm Long This part replaces 513033332. |
| 23 | 414872700 | Male Connector |
| 24 | 513033435 | Grommet |
| 25 | 513033444 | HOSE 9.53MM ID - 40MM - Call your local BRP dealership |
| 26 | 293650053 | Crimp Clamp |
| 27 | 513033439 | FORMED HOSE - Call your local BRP dealership |
| 28 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 29 | 414115200 | Tie-Rap 180 mm |
| 30 | 513033669 | Fuel Pump |
| 31 | 207661644 | Hex. Flange Screw M6 X 16 |
| 32 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 33 | 414415200 | Spring Clamp |
| 34 | 513033111 | FORMED HOSE - Call your local BRP dealership |
| 35 | 513033029 | Universal Spring Clamp |
| 36 | 219704400 | Was 409901800 Tubing (13 mm) |
| 37 | 513033418 | RH Cap |
| 38 | 513033419 | LH Cap |
| 39 | 513033326 | Shoulder Bushing |
| 40 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 41 | 207162044 | Hex. Screw M6 X 20 |
| 42 | 224060201 | Flat Washer |
| 43 | 513033528 | FOAM - Call your local BRP dealership |
| 44 | 415119300 | T-Fitting |
| 45 | 709000665 | HOSE - Call your local BRP dealership This part replaces 513033423. |
| 46 | 709000665 | HOSE - Call your local BRP dealership This part replaces 513033423. |
| 47 | 513033441 | Primer |
| 48 | 293650043 | Oetiker Gear Clamp |
| 49 | 414222400 | T-Fitting |
| 50 | 709000665 | HOSE - Call your local BRP dealership This part replaces 513033423. |
| 51 | 219704612 | Hose 3000Mm Long This part replaces 219704441. |
| 52 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 53 | 513033565 | Hose |
| 54 | 219704400 | Was 409901800 Tubing (13 mm) |
| 55 | 513033672 | Y Connector |
| 56 | 219704400 | Was 409901800 Tubing (13 mm) |
| 57 | 293650025 | Oetiker Gear Clamp |
| 58 | 293650125 | Oetiker Clamp |
| 59 | 293750002 | Tie Wrap 142 mm |
