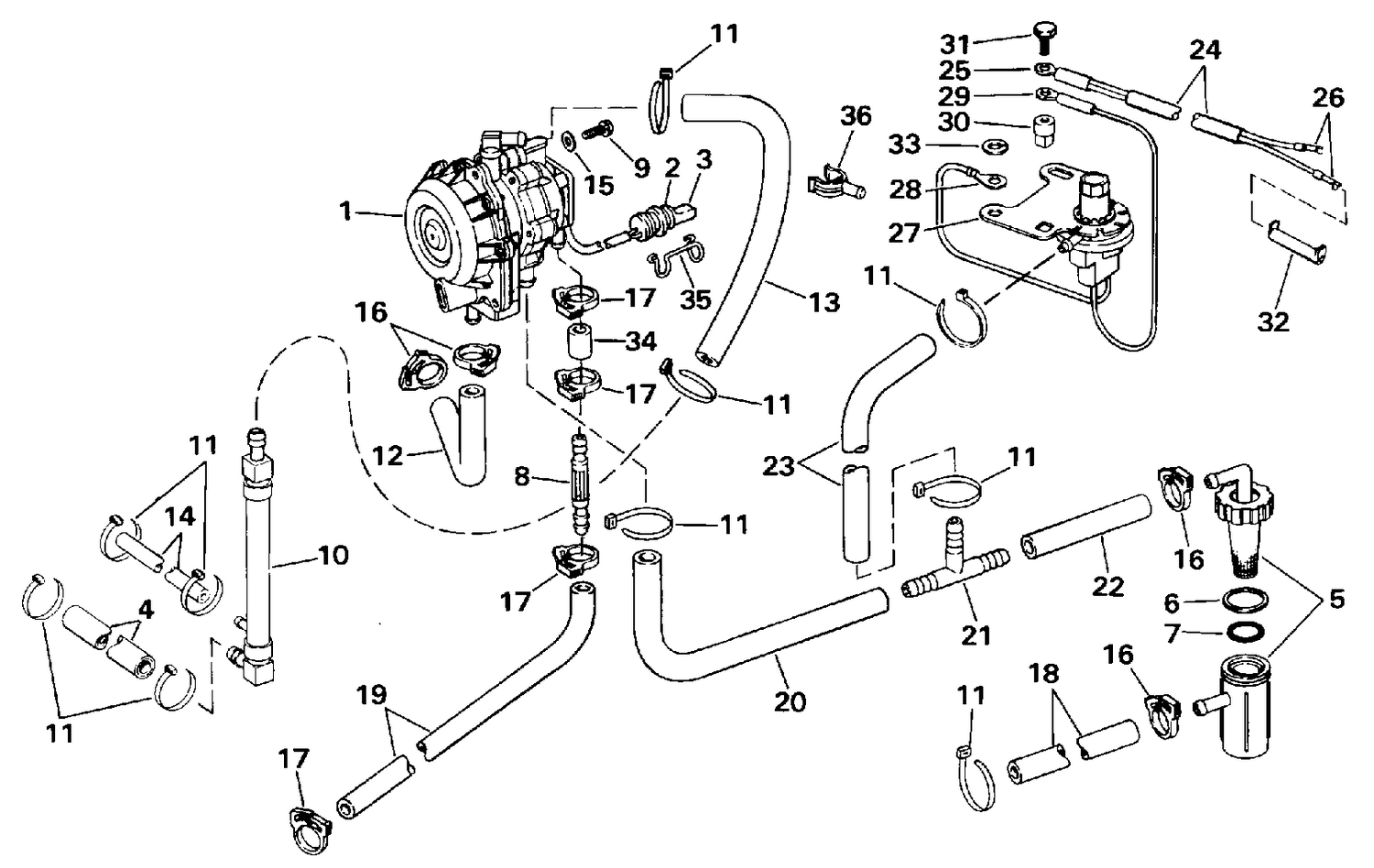

| Ref | Part Number | Description |
|---|
| 1 |
5007423 |
Kit Ay This part replaces 0174433. |
| 4 |
HOSE, |
Fuel manifold to carb. 102mm (4") |
| 5 |
0397715 |
FILTER, Fuel |
| 8 |
0331623 |
FILTER AND HOSE ASSY. |
| 11 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 12 |
0332851 |
FLEXIBLE D’IMPULSIONS |
| 13 |
0332851 |
FLEXIBLE D’IMPULSIONS |
| 14 |
HOSE, |
Manifold to primer 382 (15") |
| 17 |
0322654 |
PINCE RAPIDE, flexible d'huile |
| 18 |
HOSE, |
Connector to filter 250mm (10") |
| 19 |
HOSE, |
Fuel connector to sight tube 356mm (14") |
| 20 |
HOSE, |
Filter to fuel pump 390mm (15-3/8") |
| 21 |
0329603 |
TEE, Fuel hose |
| 22 |
HOSE, |
Fuel filter to tee 127mm (5") |
| 23 |
HOSE, |
Tee to vacuum switch 382mm (15") |
| 24 |
0582639 |
LEAD, Vacuum switch |
| 27 |
0394936 |
VACUUM SWITCH |
| 30 |
0328600 |
TERMINAL GROMMET |
| 31 |
0330448 |
SCREW, Switch lead |
| 34 |
HOSE, |
Sight tube to pump 38mm (1-1/2") |
| 35 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
