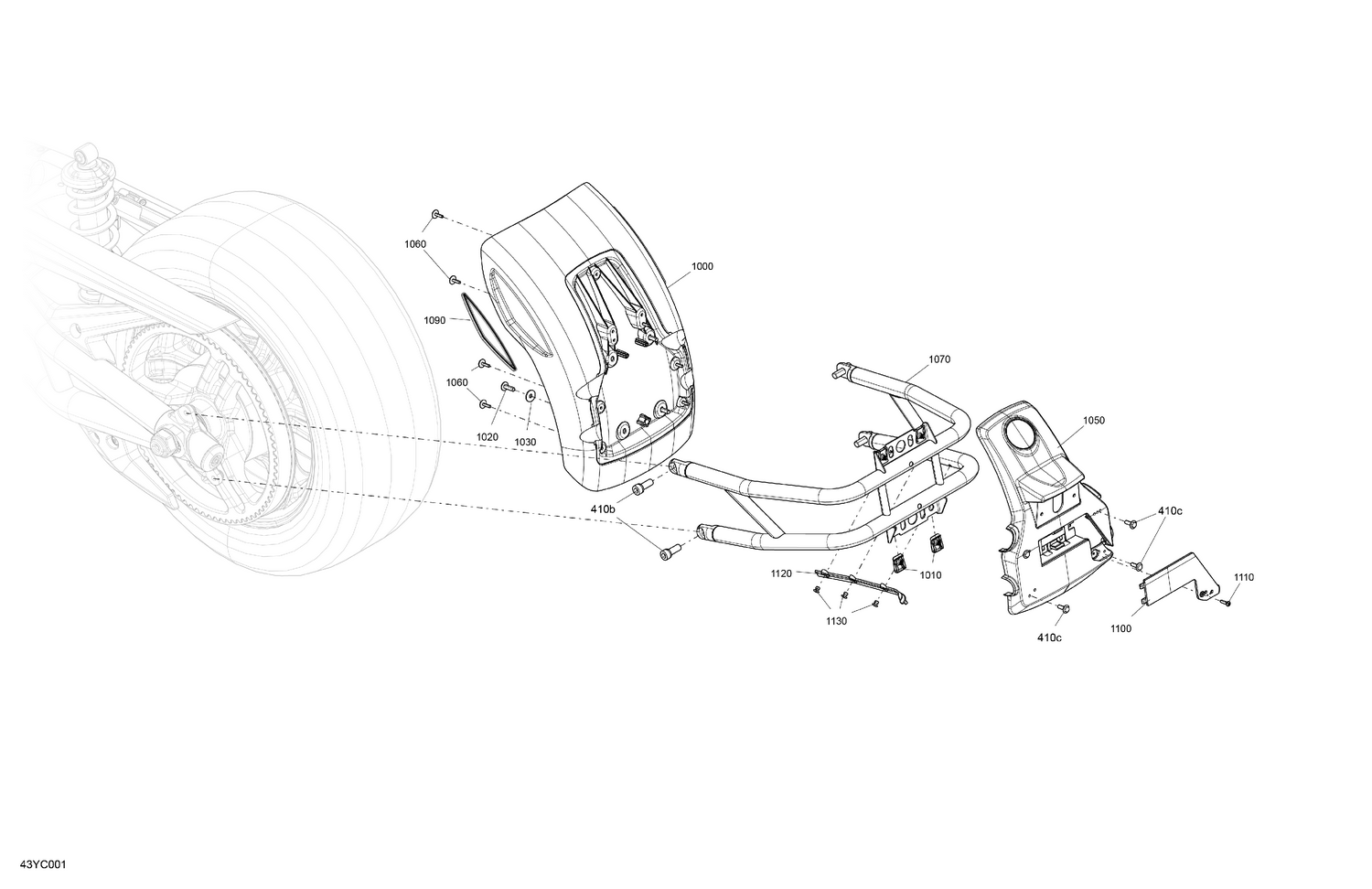

07- Body - Rear Fender
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 410b | 205502560 | Allen Screw S.GRIP M10 X 25 |
| 1000 | 705011661 | Rear Fender |
| 1010 | 250100208 | Panel Nut M6 X 1.0 |
| 1020 | 250000705 | Torx Truss Screw M6 X 20 |
| 1030 | 250200082 | Flat Washer |
| 1050 | 705009197 | Rear Fender Moulding |
| 1060 | 250000725 | Screw M4 X 16 |
| 1070 | 705008249 | Carbon Black Rear Fender Support |
| 1090 | 705003412 | Red, Lateral Reflector |
| 1100 | 705008990 | Cover Moulding |
| 1110 | 250000287 | Flange Torx Screw K40 X 16 |
| 1120 | 706202219 | Cable Cap |
| 1130 | 293150102 | Rivet 3/16" |
