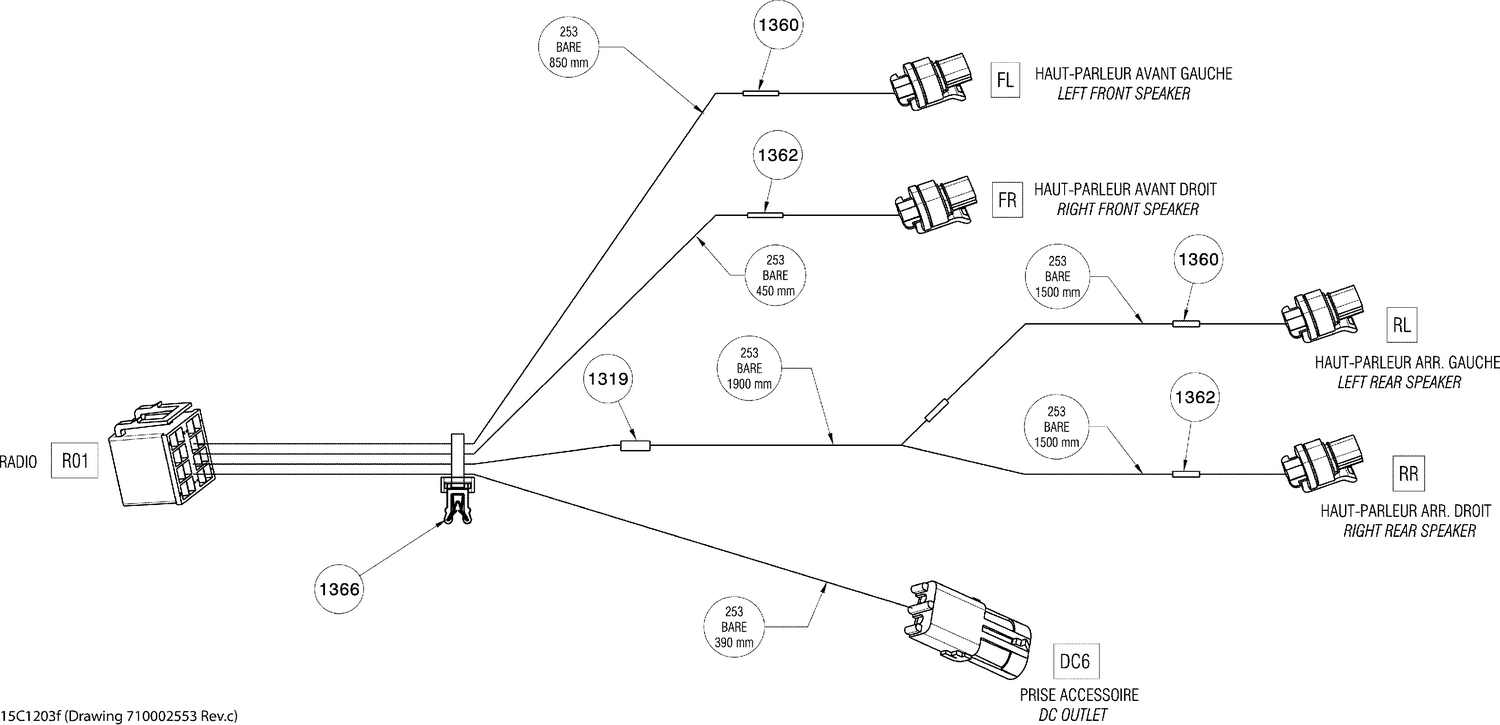

10- Electrical Harness Radio
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| DC6 | 278000217 | Female Housing, 2 Circuits |
| DC6 | 278000218 | Wire Seal |
| DC6 | 278000222 | Male Terminal |
| FL | 515177192 | Female Housing, 2 Circuits |
| FL | 710000925 | Terminal |
| FL | 710001153 | Seal Wire |
| FR | 515177192 | Female Housing, 2 Circuits |
| FR | 710000925 | Terminal |
| FR | 710001153 | Seal Wire |
| R01 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| R01 | 710002725 | Terminal |
| R01 | 710002726 | Housing |
| RL | 515177192 | Female Housing, 2 Circuits |
| RL | 710000925 | Terminal |
| RL | 710001153 | Seal Wire |
| RR | 515177192 | Female Housing, 2 Circuits |
| RR | 710001153 | Seal Wire |
| 226 | 278000222 | Male Terminal |
| 231 | 278000217 | Female Housing, 2 Circuits |
| 242 | 278000218 | Wire Seal |
| 253 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 387 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 753 | 710000925 | Terminal |
| 843 | 710001153 | Seal Wire |
| 1287 | 515177192 | Female Housing, 2 Circuits |
| 1319 | 710002720 | Adhesive Tape |
| 1325 | 710002726 | Housing |
| 1327 | 710002725 | Terminal |
| 1360 | 710002834 | Adhesive Tape |
| 1362 | 710002836 | Adhesive Tape |
| 1366 | 710002899 | Clip Tie-Rap |
