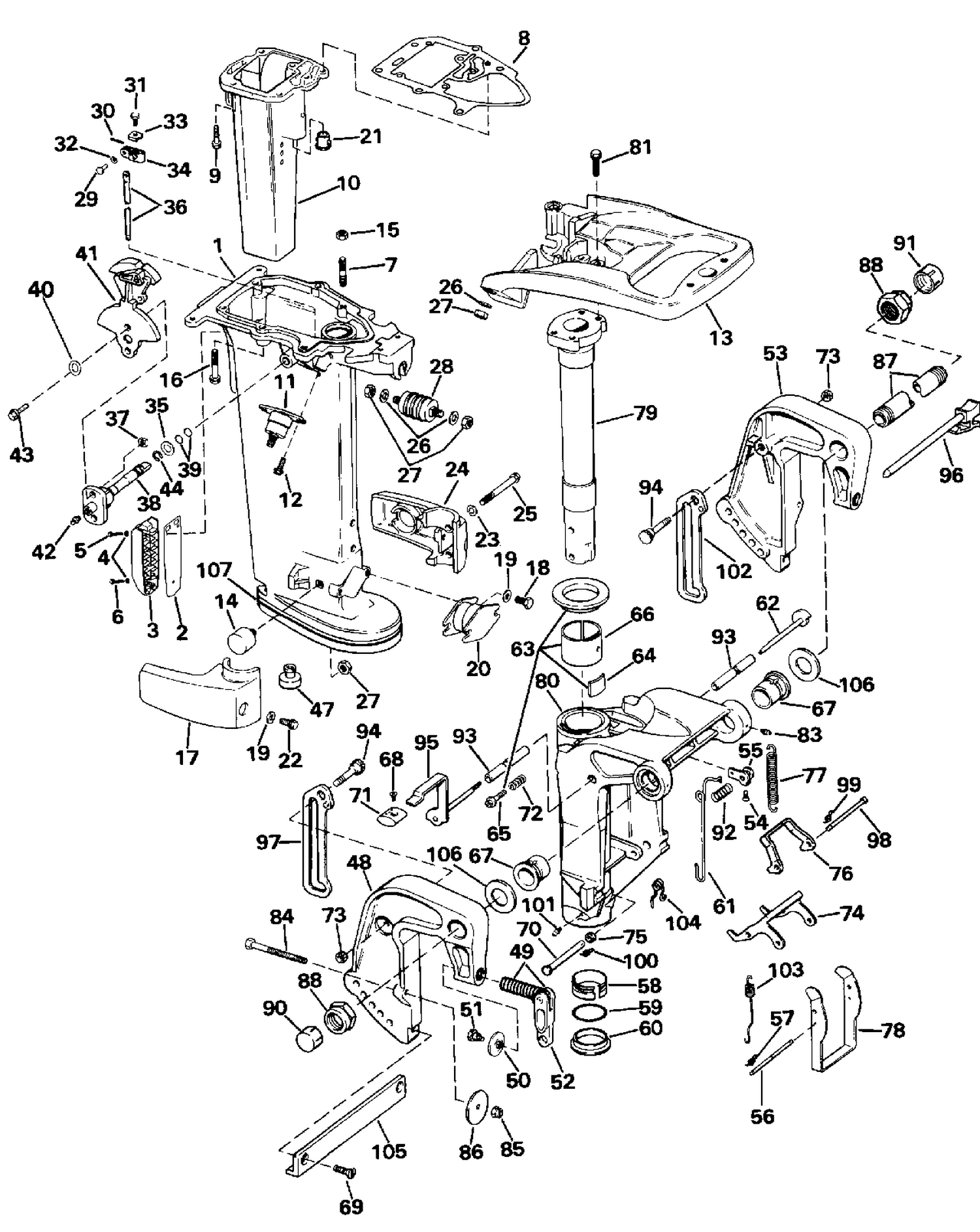

| Ref | Part Number | Description |
|---|
| 1 |
0436192 |
EXHAUST HOUSING Assy 15" This part replaces 0432429. |
| 1 |
0436193 |
EXHAUST HOUSING Assy This part replaces 0432428. |
| 2 |
0335078 |
GASKET, Cover to exh. hsg |
| 3 |
0334519 |
COVER, Exhaust relief |
| 10 |
0336258 |
EXHAUST TUBE, Inner |
| 11 |
0303879 |
MOUNT Rubber, upper side, std. only |
| 13 |
0335430 |
BRACKET, Steering |
| 14 |
0321470 |
MOUNT, Rubber, lower side |
| 15 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 16 |
0324816 |
SCREW, Anode |
| 17 |
0323109 |
HOUISING,Lower mount,stbd. |
| 18 |
0309942 |
SCREW, Anchor bracket |
| 19 |
0303886 |
LOCKWASHER |
| 20 |
0321469 |
MOUNT, Rubber, lower front |
| 22 |
0309942 |
SCREW, Anchor bracket |
| 23 |
0304144 |
LOCK WASHER |
| 24 |
0323108 |
HOUSING, Lower mount port |
| 25 |
0342540 |
SCREW, Exhaust housing to ext. This part replaces 0316440. |
| 26 |
0303884 |
RONDELLE |
| 28 |
0331812 |
MOUNT, Rubber, upper front |
| 31 |
0308017 |
SCREW, Bellcrank to shift lever |
| 32 |
0304380 |
RONDELLE ÉLASTIQUE |
| 33 |
0319537 |
CLIP |
| 34 |
0322092 |
LEVER, Shift rod |
| 35 |
0303775 |
WAHSER, Lever to hsg |
| 36 |
0325540 |
SHIFT ROD, Upper |
| 38 |
0394574 |
ADJ. LEVER & SHAFT ASSY |
| 41 |
0335342 |
ACTUATOR CAM, Shift |
| 43 |
0317581 |
SCREW, Actuator cam |
| 44 |
0315786 |
RETAINER, Knob |
| 47 |
0326071 |
BUMPER, Mount housing |
| 48 |
0342536 |
STERN BRACKET, Assy., stbd. This part replaces 0325683. |
| 49 |
0391421 |
CLAMP SCREW & HANDLE |
| 49 |
0433675 |
CLAMP SCR. & HAND. ASSY. |
| 53 |
0342535 |
STERN BRACKET, Assy., port This part replaces 0325682. |
| 54 |
0319108 |
SCREW BELCRANK |
| 55 |
0319695 |
BELL CRANK |
| 56 |
0322945 |
PIN, Link shallow water drive |
| 58 |
0309967 |
BUSHING, Pilot shaft, lower |
| 60 |
0309966 |
THRUST WASHER, Lower swivel bracket |
| 61 |
0319696 |
ROD, Reverse lock |
| 62 |
0388661 |
CAM & SHIFT ASSY., Tilt lock |
| 63 |
0397736 |
BLOCK ASSY., Friction |
| 67 |
0319787 |
BUSHING |
| 68 |
0319227 |
SCREW, Knob |
| 69 |
0324579 |
SCREW |
| 70 |
0322947 |
HEAD ASSY. |
| 71 |
0328048 |
KNOB, Tilt & reverse lock lever |
| 74 |
0322949 |
LINK, Reverse lock |
| 75 |
0303887 |
WASHEER, Pin to swivel bracket |
| 76 |
0322950 |
LEVER, Reverse lock |
| 77 |
0315078 |
SPRING, Reverse lock |
| 78 |
0338657 |
LINK, Shallow water drive This part replaces 0320426. |
| 79 |
0329648 |
PILOT SHAFT |
| 80 |
0323158 |
BRACKET, Rubber, lower side |
| 87 |
0351896 |
TILT TUBE This part replaces 0321511. |
| 88 |
0335554 |
CROU, tube de relevage |
| 90 |
0317894 |
CACHE, tube de relevage |
| 92 |
0319694 |
SPRING, Tilt lock |
| 93 |
0319693 |
BUSHING, Tilt lock |
| 94 |
0319692 |
PIN TILT LOCK |
| 95 |
0388662 |
LEVEER & SHAFT, Lock |
| 96 |
0436387 |
TILT PIN This part replaces 0391271. |
| 98 |
0326943 |
PIN, Link to lock lever |
| 103 |
0319697 |
SPRING REVERSE LOCK |
| 104 |
0322946 |
SPRING, Shallow water drive |
| 105 |
0357240 |
TIE BAR, Stern bracket This part replaces 0319709. |
| 106 |
0319699 |
THRUST WASHER, Stern bracket |
| 107 |
0212022 |
DECAL, Evinrude |
| 0432294 |
0432294 |
SCREW & NUT ASSEMBLY |
