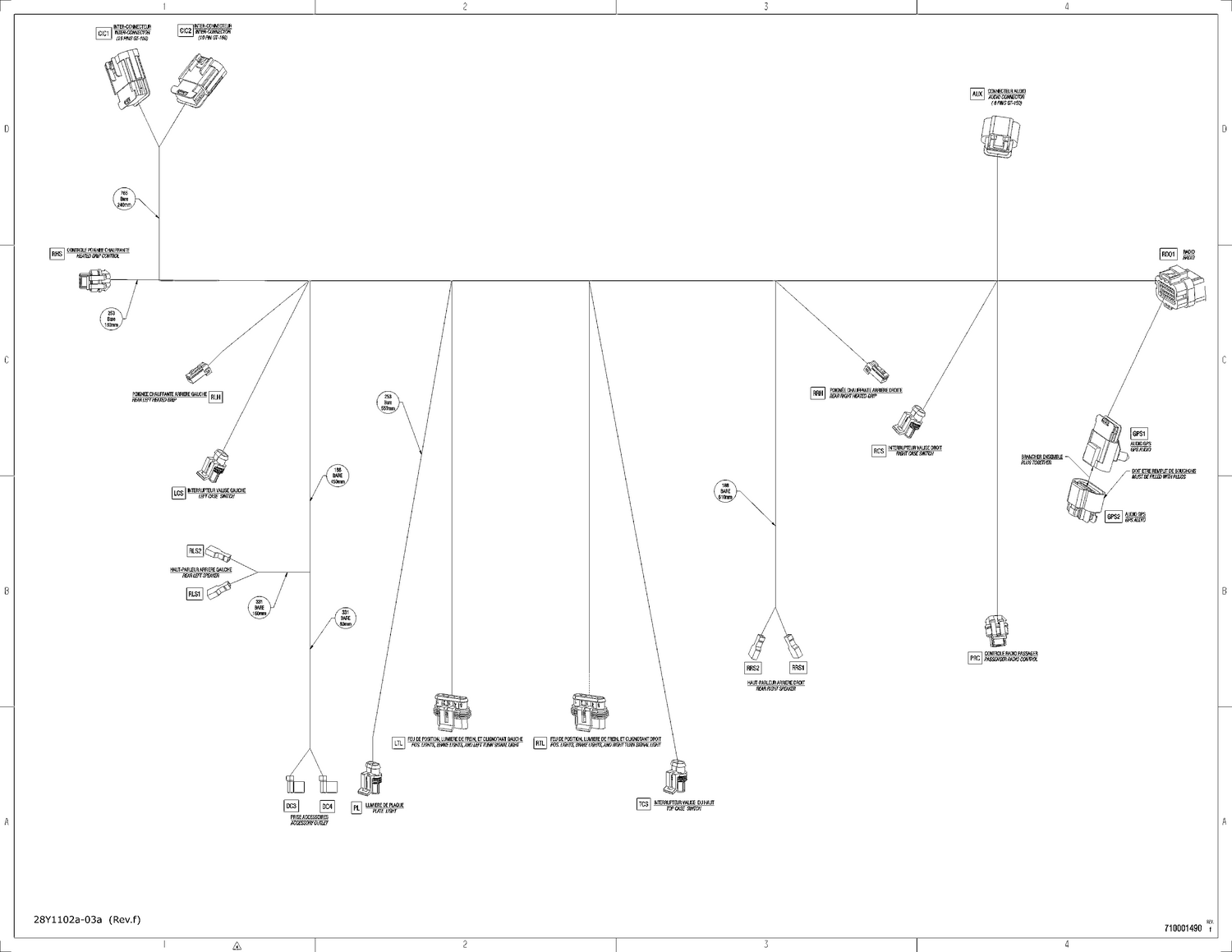

10- Electrical Harness , Cargo
Parts (70)
| Ref | Part Number | Description |
|---|---|---|
| AUX | 710001225 | Cap |
| AUX | 710001229 | Terminal |
| AUX | 710001233 | Seal |
| AUX | 710001928 | Housing |
| CIC1 | 710001224 | Terminal |
| CIC1 | 710001225 | Cap |
| CIC1 | 710001227 | Housing |
| CIC1 | 710001332 | Seal Wire |
| CIC1 | 710001863 | TERMINAL - Call your local BRP dealership |
| CIC2 | 710001224 | Terminal |
| CIC2 | 710001225 | Cap |
| CIC2 | 710001332 | Seal Wire |
| CIC2 | 710001863 | TERMINAL - Call your local BRP dealership |
| CIC2 | 710001952 | Housing |
| DC3 | 710000038 | Female Terminal |
| DC3 | 710000488 | Coding Tape, Red |
| DC4 | 710000038 | Female Terminal |
| GPS1 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| GPS1 | 710001224 | Terminal |
| GPS1 | 710001225 | Cap |
| GPS1 | 710001231 | Housing |
| GPS1 | 710001233 | Seal |
| GPS1 | 710002006 | Holder |
| GPS2 | 710001225 | Cap |
| GPS2 | 710001232 | Housing |
| LCS | 409209500 | Female Housing, 2 Circuits |
| LCS | 515176621 | Wire Seal |
| LCS | 710001340 | Female Terminal |
| LTL | 278001013 | Wire Seal |
| LTL | 278001014 | Female Terminal |
| LTL | 515176621 | Wire Seal |
| LTL | 710000780 | Connector |
| LTL | 710001340 | Female Terminal |
| PL | 409209500 | Female Housing, 2 Circuits |
| PL | 515176621 | Wire Seal |
| PL | 710001340 | Female Terminal |
| PRC | 278002387 | Female Terminal Housing 3 Circuits |
| PRC | 710000926 | Seal |
| PRC | 710001164 | Female Terminal |
| R1 | 710000482 | SHRINK TUBING - Call your local BRP dealership |
| R1 | 710002069 | RESISTOR - Call your local BRP dealership |
| RCS | 409209500 | Female Housing, 2 Circuits |
| RCS | 515176621 | Wire Seal |
| RCS | 710001340 | Female Terminal |
| RDO1 | 515176345 | Plug |
| RDO1 | 515176348 | Female Terminal |
| RDO1 | 710001849 | Housing |
| RDO1 | 710001908 | TERMINAL - Call your local BRP dealership |
| RHS | 278002387 | Female Terminal Housing 3 Circuits |
| RHS | 710001153 | Seal Wire |
| RHS | Not | Available As Spare Part - Terminal |
| RLH | 515175231 | Female Terminal |
| RLH | 515175658 | Female Housing, 2 Circuits |
| RLS1 | 710000082 | Female Terminal |
| RLS2 | 409010700 | Female Terminal |
| RRH | 515175231 | Female Terminal |
| RRH | 515175658 | Female Housing, 2 Circuits |
| RRS1 | 710000082 | Female Terminal |
| RRS2 | 409010700 | Female Terminal |
| RTL | 278001013 | Wire Seal |
| RTL | 278001014 | Female Terminal |
| RTL | 515176621 | Wire Seal |
| RTL | 710000780 | Connector |
| RTL | 710001340 | Female Terminal |
| TCS | 409209500 | Female Housing, 2 Circuits |
| TCS | 515176621 | Wire Seal |
| 188 | 409902000 | Tubing 12 mm |
| 253 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 331 | 219704446 | PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership |
| 765 | Not | Available As Spare Part - Adhesive Tape |
