Home / BRP / JOHNSON / 1977 / 175 / 175TL77S 1977 / MOTOR COVER

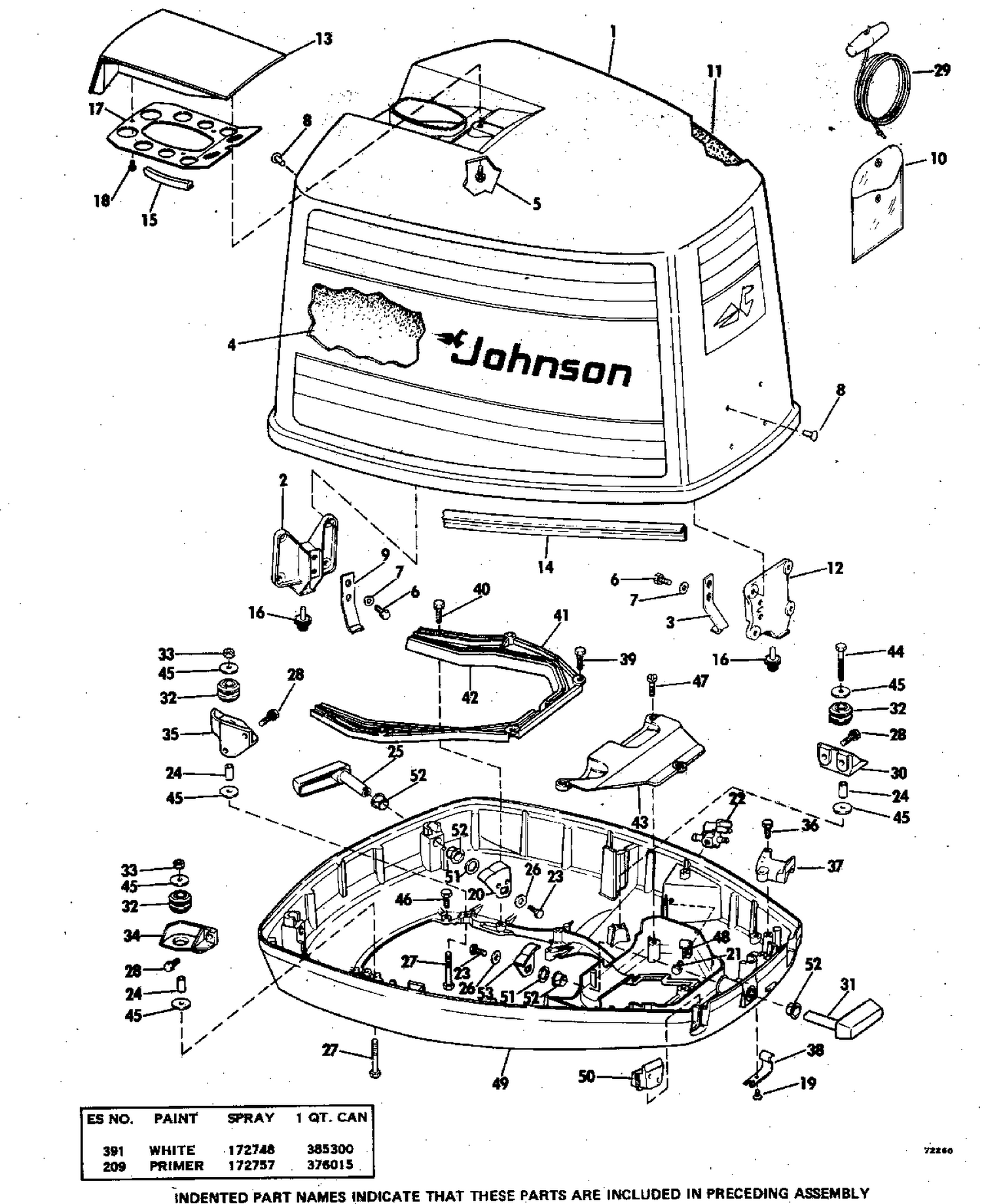

MOTOR COVER

MOTOR COVER

Parts (45)

RefPart NumberDescription
1 0387915 MOTOR COVER ASSY.,175 HP
1 0387916 MOTOR COVER ASSY.,200 HP
2 0394976 LOCATING BRACKET, Rear This part replaces 0206322.
4 0325172 SOUND BLANKET, Side This part replaces 0321257.
5 0324644 SCREW, Solecoid mounting This part replaces 0316194.
7 0306407 LOCCKWASHER,Cover latch
10 0314494 BAG EMERGENCY STARTER ROPE
11 0321256 SOUND BLANKET, Top
12 0389971 LOCATING BARCKET, Front This part replaces 0207513.
13 0206489 TILT HANDLE
14 0328686 SEAL, Engine cover This part replaces 0321255.
17 0206520 AIR INLET BAFFLE
18 0316195 SCREW
19 0310539 SCREW, Clamp choke solenoid
20 0323169 HOOK, Lower rear port This part replaces 0315177.
21 0309405 SCREW
22 0393334 CONNECTEUR, carburant - mâle This part replaces 0376154.
23 0552062 SCREW, Clamp
24 0302406 SLEEVE
25 0383685 LATCH HANDEL ASSY., Rear
27 0306493 SCREW, Regulator mounting
28 0328695 CLAMP, Engine cable This part replaces 0323480.
29 0378347 CORDE DE LANCEUR
30 0315111 SUPPORT, Front
31 0383641 LATCH HANDEL ASSY., Front
32 0316354 ENGINE COVER SUPPORT GROMMET
33 0311375 NUT
34 0315113 SUPORT, Stbd, rear
35 0315112 SUPPORT, Port rear
36 0307151 SCREW
37 0318849 CLAMP, Instrument cable
38 0333739 RETAINER, Fuel hose to cover This part replaces 0318313.
39 0328695 CLAMP, Engine cable This part replaces 0323480.
40 0309405 SCREW
41 0392494 FRAME AND SEAL ASSY This part replaces 0387443.
42 0318258 SEAL Cover
43 0319223 COVER ASSY.,Air entrance
44 0303398 VIS, support This part replaces 0302030.
46 0328695 CLAMP, Engine cable This part replaces 0323480.
47 0328695 CLAMP, Engine cable This part replaces 0323480.
49 0434288 ENGINE COVER, Lower This part replaces 0320509.
50 0320834 GROMMET
53 0323170 HOOK Front and stbd., rear This part replaces 0315178.
0388378 0388378 DECAL SET,175 HP only
0388379 0388379 DECAL SET,200 HP only
