Parts Catalog

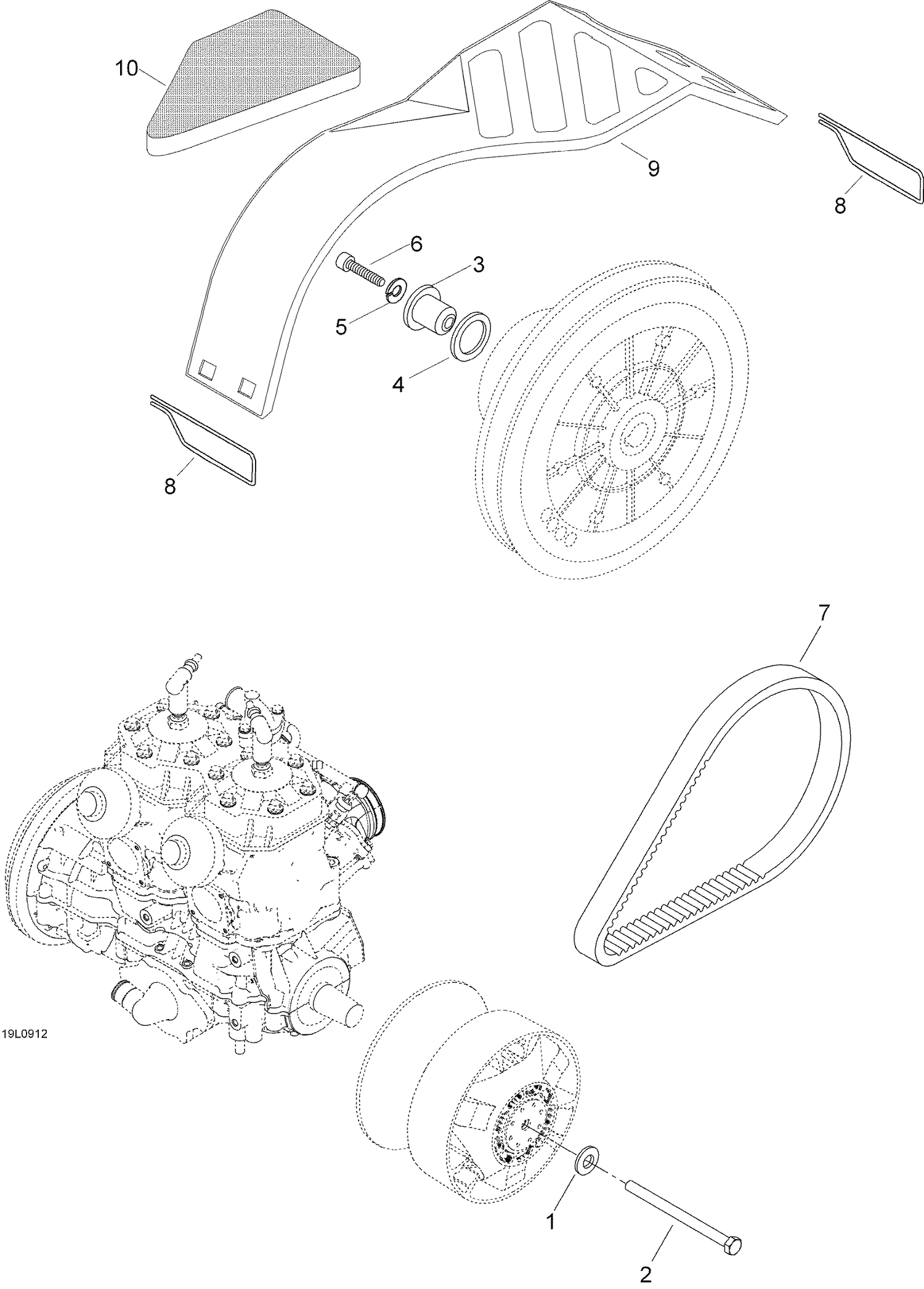

05- Pulley System

Parts (9)

Ref	Part Number	Description
1	20110	Lock washer M14
2	417300285	Screw
3	5443765	Sleeve
4	3125351	Shim
5	20014	Lock washer A8
6	40290	Socket head screw M8 x 55
7	605348425	Drive belt
8	5442726	Pin
9	605149860	BELT GUARD - Call your local BRP dealership
