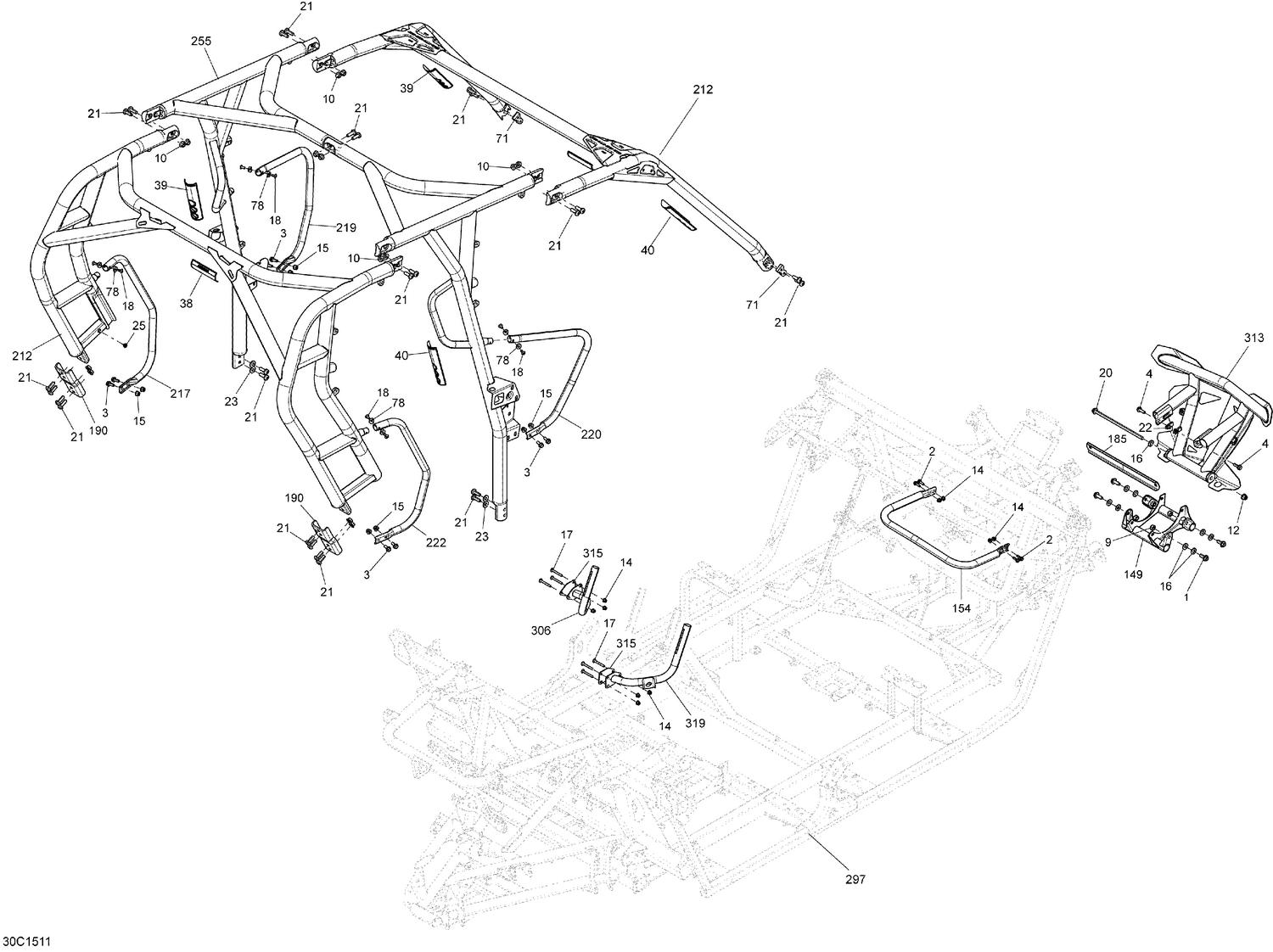

| Ref | Part Number | Description |
|---|
| 1 |
207602546 |
Hex. Flange Screw M10 X 25 |
| 2 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 3 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 4 |
207382544 |
SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership |
| 9 |
232500416 |
Elastic Stop Nut M10 |
| 10 |
233101464 |
Hex. Elastic Flange Nut , M10 X 1.5 |
| 12 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 14 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 15 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 16 |
234201474 |
Conical Spring Washer 10 mm |
| 17 |
250000317 |
Torx Screw M6 X 50 |
| 18 |
250000789 |
Torx Truss M6X14 This part replaces 250000439. |
| 20 |
250000597 |
Hex. Flange Screw |
| 21 |
250000848 |
Screw Pan M10 X 30 This part replaces 250000624. |
| 22 |
250100118 |
Panel Nut M8 X 1.25 |
| 23 |
250200154 |
Washer |
| 25 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 38 |
704903492 |
Warning Label |
| 39 |
704903679 |
Warning Label |
| 40 |
704903680 |
Warning Label |
| 71 |
705203415 |
Binding Block |
| 78 |
705202223 |
Offset Washer |
| 149 |
705203296 |
DIFFERENTIAL SUPPORT - Call your local BRP dealership |
| 154 |
705203332 |
Black Handle |
| 185 |
705203454 |
FRONT SUSPENSION LINK - Call your local BRP dealership |
| 190 |
705203514 |
Rear Hand Mounting |
| 217 |
705204062 |
MANTA GREEN LH REAR PROTECTOR TUBE - Call your local BRP dealership |
| 219 |
705204066 |
MANTA GREEN LH SIDE PROTECTOR TUBE - Call your local BRP dealership |
| 220 |
705204067 |
MANTA GREEN RH SIDE PROTECTOR TUBE - Call your local BRP dealership |
| 222 |
705204063 |
MANTA GREEN RH REAR PROTECTOR TUBE - Call your local BRP dealership |
| 255 |
715003902 |
Black Central Cage Kit This part replaces 705204021. |
| 297 |
703501013 |
BLACK MAX FRAME ASS'Y - Call your local BRP dealership This part replaces 705204216. |
| 315 |
705204606 |
Steel Plate |
