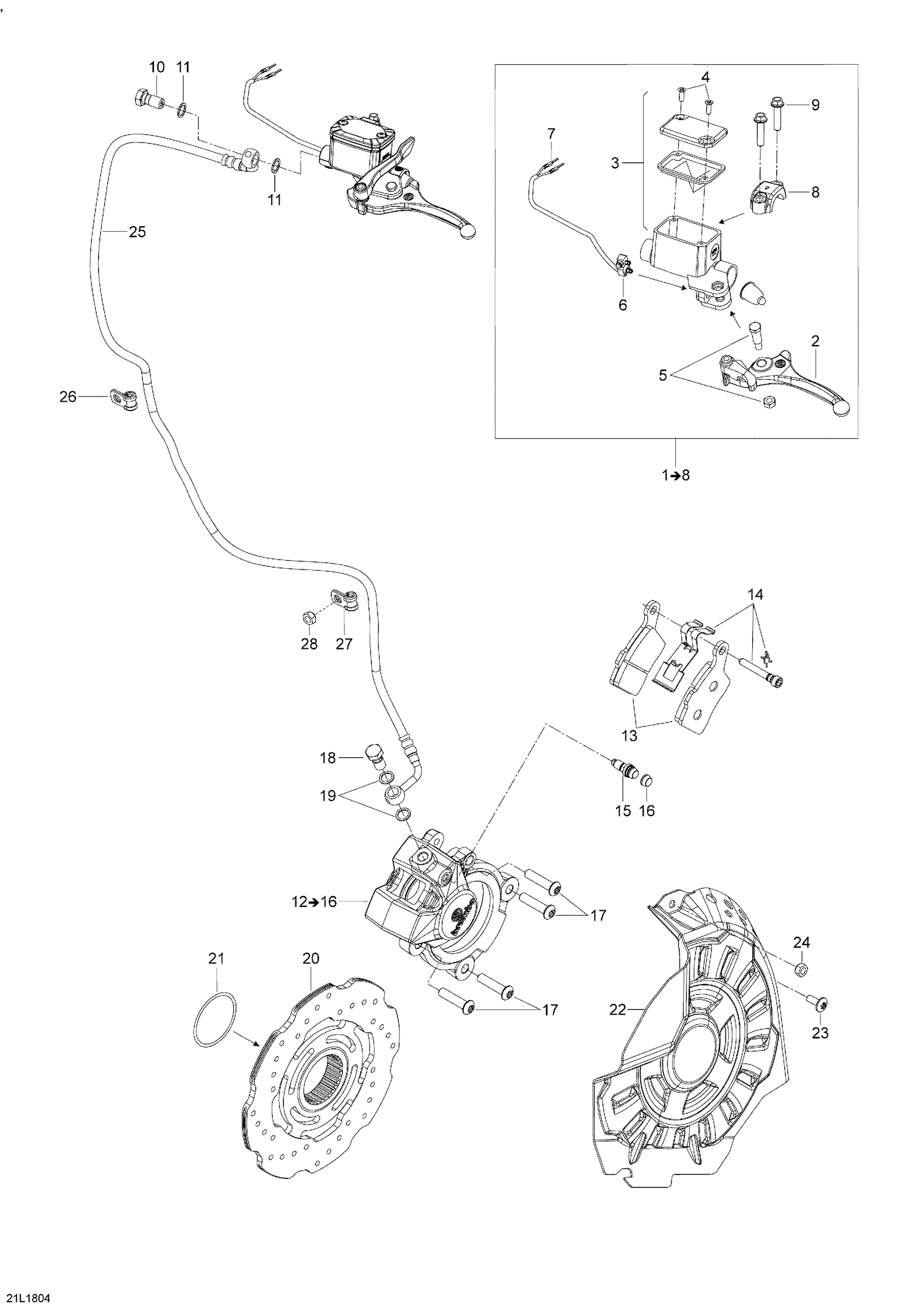

06- Brakes Rave - Rac Kit
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 507032428 | LEVER - Call your local BRP dealership |
| 3 | 415029900 | Kansi+ruuvit |
| 5 | 415030000 | Pin Ass'y |
| 6 | 507032526 | Microswitch |
| 9 | 250000447 | Hex Flanged Screw M6 X 25 |
| 10 | 507032551 | Banjo Bolt |
| 11 | 705601628 | Copper Washer This part replaces 705600310. |
| 13 | 507032489 | Brake Pads Kit |
| 14 | 507032722 | Brake Spring Kit This part replaces 507032474. |
| 15 | 507032475 | Bleeder Screw |
| 17 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
| 18 | 507032551 | Banjo Bolt |
| 19 | 705601628 | Copper Washer This part replaces 705600310. |
| 20 | 507032513 | Brake disk |
| 21 | 293300209 | O-ring |
| 22 | 507032546 | Black Disk Protector |
| 23 | 250000717 | Torx Head Screw M6 X 16 |
| 24 | 233261494 | Nut flanged elastic black zink |
| 25 | 507032540 | Hose |
| 26 | 414108400 | Open Clamp |
| 27 | 503193393 | CLAMP - Call your local BRP dealership |
