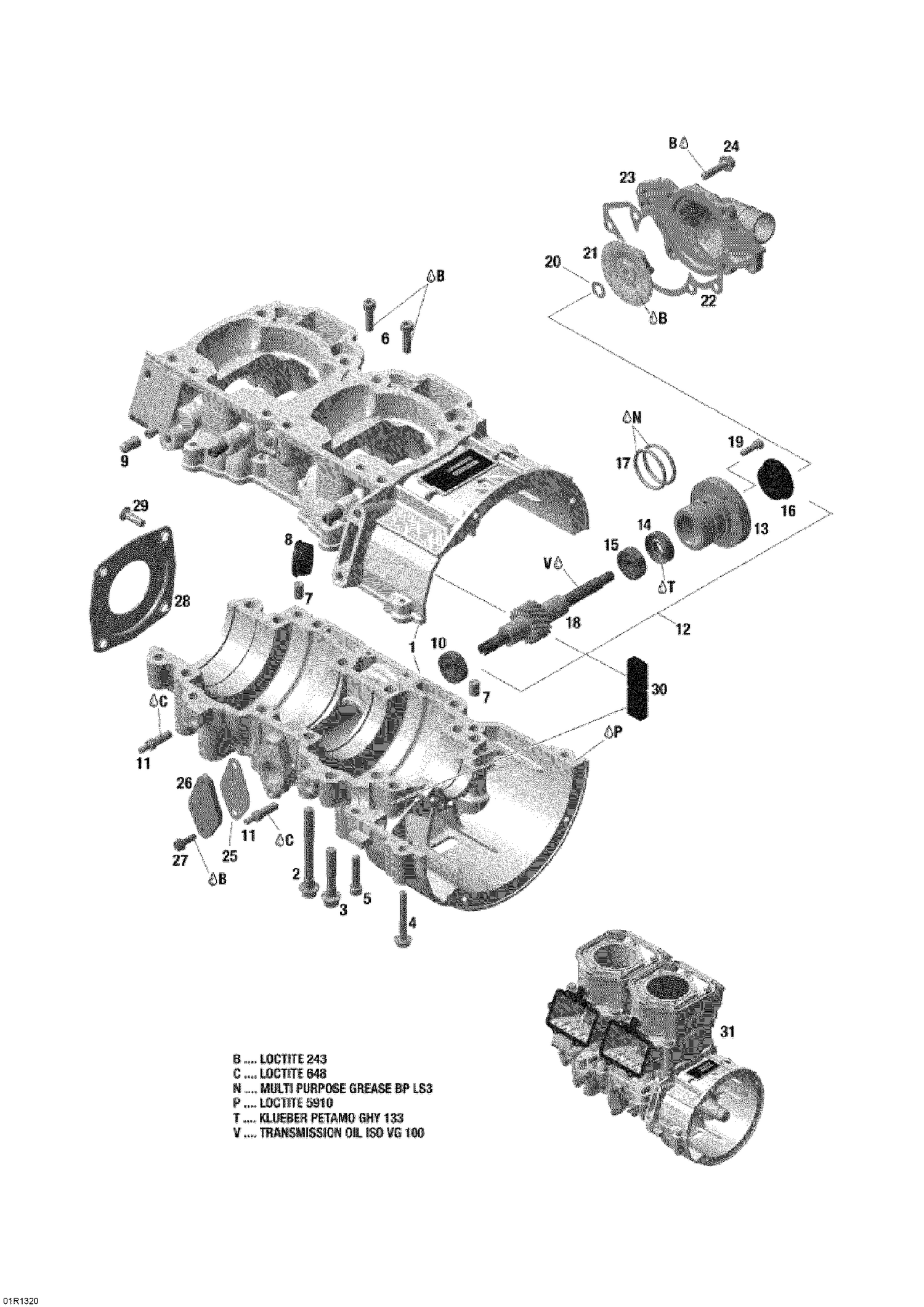

01- Crankcase And Water Pump
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10ml |
| C | 619600012 | Loctite 609, 50ml |
| N | Not | Available As Spare Part - Multipurpose Grease BP LS3 |
| P | 293800081 | Loctite 5910, 300 ml |
| T | 619600023 | Grease, 400g |
| 7 | 420632010 | Center Pin 8 X 12 |
| 8 | 420660890 | Cable Grommet |
| 9 | 420960770 | Cap |
| 10 | 420232100 | Ball Bearing |
| 11 | 420956071 | Check Valve This part replaces 420956070. |
| 13 | Not | Available As Spare Part - Step Collar |
| 15 | 420232100 | Ball Bearing |
| 18 | Not | Available As Spare Part - Water Pump Shaft |
| 20 | 420227945 | Washer |
| 23 | 420922630 | Water Pump Housing |
| 26 | 420810827 | Cover Plate This part replaces 420810825. |
| 28 | 420812422 | Oil Seal Cover This part replaces 420812420. |
| 30 | 420960925 | Rubber Stopper |
| 31 | 420059354 | Short Block 593 Ho E-Tec This part replaces 420059353. |
