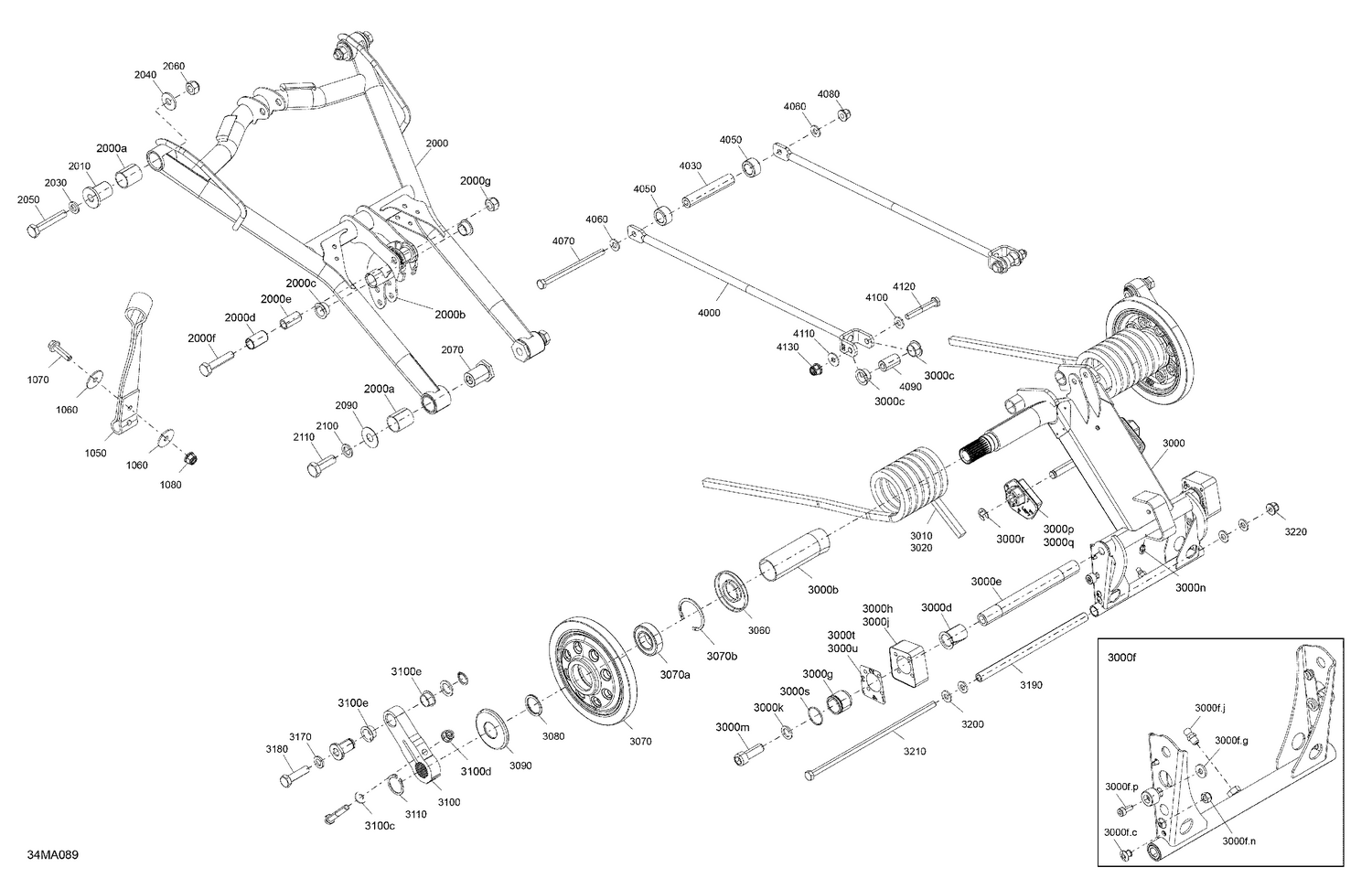

05- Suspension - Rear - Upper Section - Enduro
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1050 | 503192759 | Stopper Strap |
| 1060 | 250200128 | Flat Washer 8 mm |
| 1070 | 207683044 | Hex. Flange Screw M8 X 30 |
| 1080 | 233281466 | Elastic Flange Nut M8 |
| 2000a | 503191554 | Bushing |
| 2000b | 503192531 | Rocker |
| 2000c | 503191555 | Swivel Bushing |
| 2000d | 503193037 | Bushing |
| 2000e | 503189282 | Bushing |
| 2000f | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 2000g | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 2010 | 503190698 | Axle |
| 2030 | 503192496 | Washer |
| 2040 | 503191926 | Washer |
| 2050 | 207006056 | Hex. Cap Screw M10 X 60 |
| 2060 | 233601466 | Elastic Locking Nut M10 |
| 2070 | 503191966 | Lower Axle |
| 2090 | 503190656 | Washer |
| 2100 | 503192491 | Washer |
| 2110 | 250000537 | Hex. Cap Screw M12 X 35 |
| 3000b | 503192767 | Bushing |
| 3000c | 503191555 | Swivel Bushing |
| 3000d | 503191640 | Cushion |
| 3000e | 503192981 | Lower Shaft |
| 3000g | 503192749 | Guide Block |
| 3000h | 503192918 | LH Cam Block |
| 3000j | 503192919 | RH Cam Block |
| 3000k | 503192491 | Washer |
| 3000m | 205523554 | Socket Head Screw M12 X 35 |
| 3000n | 408200700 | Grease Fitting |
| 3000p | 503191565 | LH Cam Adjuster |
| 3000q | 503191566 | RH Cam Adjuster |
| 3000r | 293370013 | E-Circlip |
| 3000s | 503192921 | O-Ring |
| 3000t | 516004900 | LH Block Sticker Decal |
| 3000u | 516004901 | RH Block Sticker Decal |
| 3010 | 503192081 | LH Spring |
| 3020 | 503192080 | RH Spring |
| 3060 | 503190434 | Labyrinth Seal |
| 3070a | 503193548 | Ball Bearing |
| 3070b | 415129780 | Retaining Ring |
| 3080 | 503189146 | Axle Spring |
| 3090 | 503192592 | Labyrinth Ring |
| 3100c | 503192494 | Washer |
| 3100d | 233281466 | Elastic Flange Nut M8 |
| 3100e | 503191555 | Swivel Bushing |
| 3110 | 293370080 | Retaining Ring |
| 3170 | 503192496 | Washer |
| 3180 | 207204056 | Cap Screw Hex. M10 X 40 |
| 3190 | 503189156 | Pivot Arm Axle |
| 3200 | 503192494 | Washer |
| 3210 | 503192440 | Bolt M8 X 248mm |
| 3220 | 233281466 | Elastic Flange Nut M8 |
| 4000 | 503193058 | Link Rod |
| 4030 | 503193063 | Axle Bar |
| 4050 | 503193064 | Spacer |
| 4060 | 503192494 | Washer |
| 4070 | 503193499 | Screw M8 X 120, 10.9 |
| 4080 | 233281466 | Elastic Flange Nut M8 |
| 4090 | 503192555 | Axle Bar |
| 4100 | 503192494 | Washer |
| 4110 | 234082410 | Flat Washer 8 mm |
| 4120 | 207085556 | Hex. Screw M8 X 55 |
