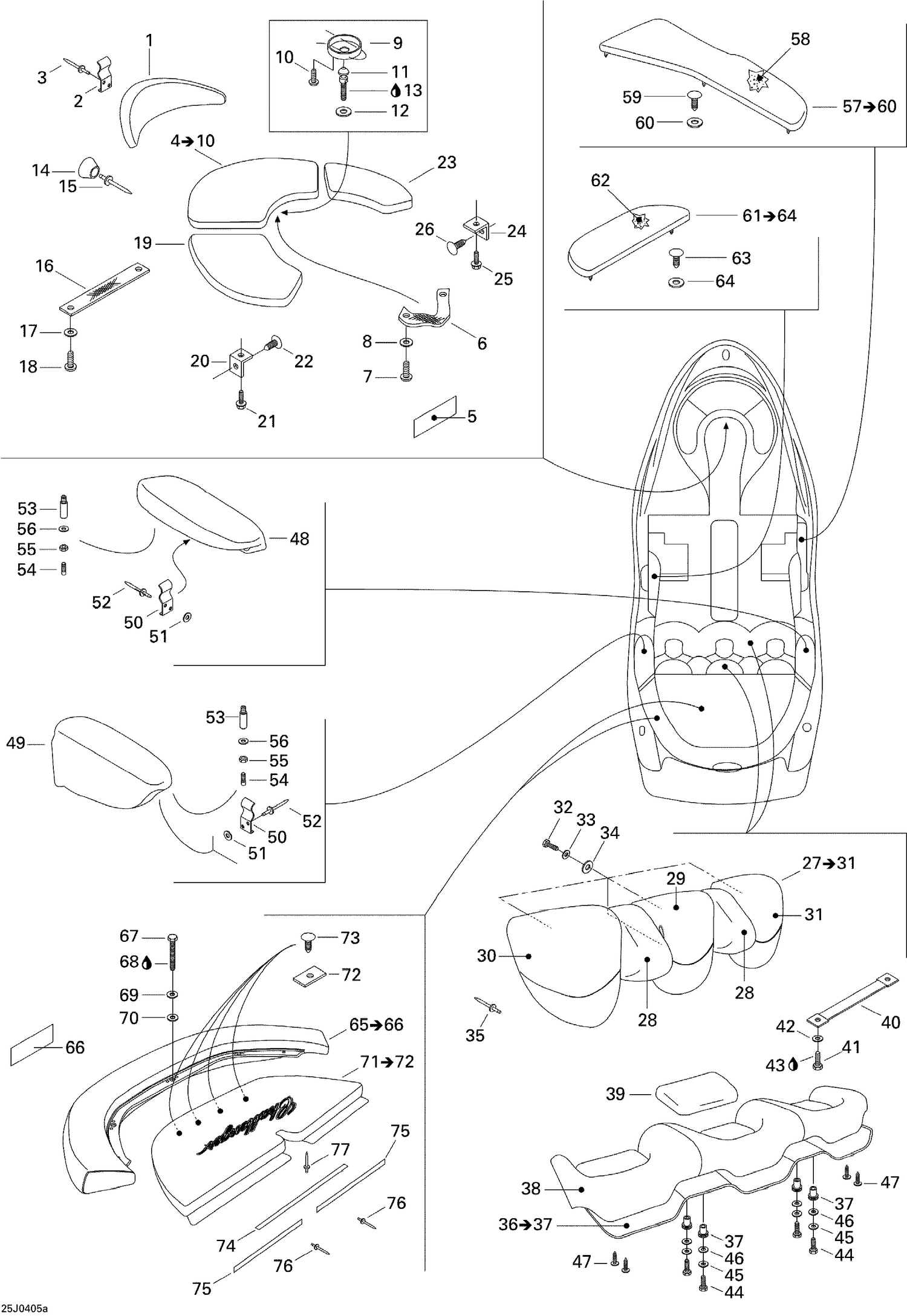

| Ref | Part Number | Description |
|---|
| 1 |
204612175 |
Front Backrest Ass'y |
| 2 |
269000388 |
SEAT SUPPORT - Call your local BRP dealership |
| 3 |
293150043 |
Pop Rivet 3/16" |
| 5 |
204610184 |
Staple Cover, Meter |
| 6 |
204610963 |
Strap |
| 7 |
241140060 |
Screw K40 X 10 |
| 8 |
234042600 |
Flat Washer 4 mm, Stainless |
| 9 |
204610178 |
Front Seat Latch |
| 10 |
205441660 |
Socket Head Screw M4 X 16 |
| 11 |
204610207 |
Seat Stud |
| 12 |
234062600 |
Flat Washer M6, Stainless |
| 13 |
293800060 |
Loctite 243, 10 ml |
| 14 |
293830043 |
Rubber Stopper |
| 15 |
293150013 |
Pop Rivet 3/16" |
| 16 |
204610963 |
Strap |
| 17 |
234042600 |
Flat Washer 4 mm, Stainless |
| 18 |
241140060 |
Screw K40 X 10 |
| 19 |
204612693 |
LH Front Seat Ass'y |
| 20 |
204610100 |
SEAT BRACKET - Call your local BRP dealership |
| 21 |
241140060 |
Screw K40 X 10 |
| 22 |
293730006 |
Black, Dart |
| 23 |
204612694 |
RH Front Seat Ass'y |
| 24 |
204610100 |
SEAT BRACKET - Call your local BRP dealership |
| 25 |
241140060 |
Screw K40 X 10 |
| 26 |
293730006 |
Black, Dart |
| 28 |
204612699 |
Bump Cover |
| 29 |
204612205 |
Backrest Cover, Silver Metallic |
| 30 |
204612206 |
RH Backrest Cover, Silver Metallic |
| 31 |
204612207 |
LH Backrest Cover, Silver Metallic |
| 32 |
207364060 |
Hex. Screw M6 X 40, Scotch Grip |
| 33 |
234062600 |
Flat Washer M6, Stainless |
| 34 |
234082600 |
Flat Washer 8 mm, Stainless |
| 35 |
293150065 |
RIVET - Call your local BRP dealership |
| 37 |
204100005 |
Anchor Washer |
| 38 |
204612209 |
Rear Seat Cover, Off White |
| 39 |
204612210 |
Rear Seat Cushion, Silver Metallic |
| 40 |
204612212 |
Rear Seat Strap, Off White |
| 41 |
207161660 |
Hex. Screw M6 X 16 |
| 42 |
234062600 |
Flat Washer M6, Stainless |
| 43 |
293800060 |
Loctite 243, 10 ml |
| 44 |
207364060 |
Hex. Screw M6 X 40, Scotch Grip |
| 45 |
234062600 |
Flat Washer M6, Stainless |
| 46 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership |
| 47 |
293730021 |
Dart |
| 48 |
204612213 |
RH Armrest Ass'y |
| 49 |
204612215 |
LH Armrest Ass'y |
| 50 |
269000388 |
SEAT SUPPORT - Call your local BRP dealership |
| 51 |
234061600 |
Stainless Flat Washer M6 |
| 52 |
293150043 |
Pop Rivet 3/16" |
| 53 |
204130015 |
Threaded Rod M5, Scotch Grip |
| 54 |
206254069 |
Socket Set Screw M5 X 40, Scotch Grip |
| 55 |
232551600 |
Hex. Elastic Nut M5 |
| 56 |
234052600 |
Flat Washer 5 mm, Stainless |
| 58 |
204610121 |
Neoprene Foam |
| 59 |
293730006 |
Black, Dart |
| 60 |
234062600 |
Flat Washer M6, Stainless |
| 62 |
204610123 |
Neoprene Foam |
| 63 |
293730006 |
Black, Dart |
| 64 |
234062600 |
Flat Washer M6, Stainless |
| 66 |
204610184 |
Staple Cover, Meter |
| 67 |
207362560 |
Hex. Screw M6 X 25, Scotch Grip |
| 68 |
293800060 |
Loctite 243, 10 ml |
| 69 |
234062600 |
Flat Washer M6, Stainless |
| 70 |
234002600 |
Flat Washer 10 mm, Stainless |
| 72 |
204610194 |
Strap |
| 73 |
293730006 |
Black, Dart |
| 74 |
204611298 |
Velcro 25 Mm X 940 Mm |
| 75 |
204611299 |
Velcro 25 Mm X 635 Mm |
| 76 |
204130050 |
POP RIVET 3/16 - Call your local BRP dealership |
