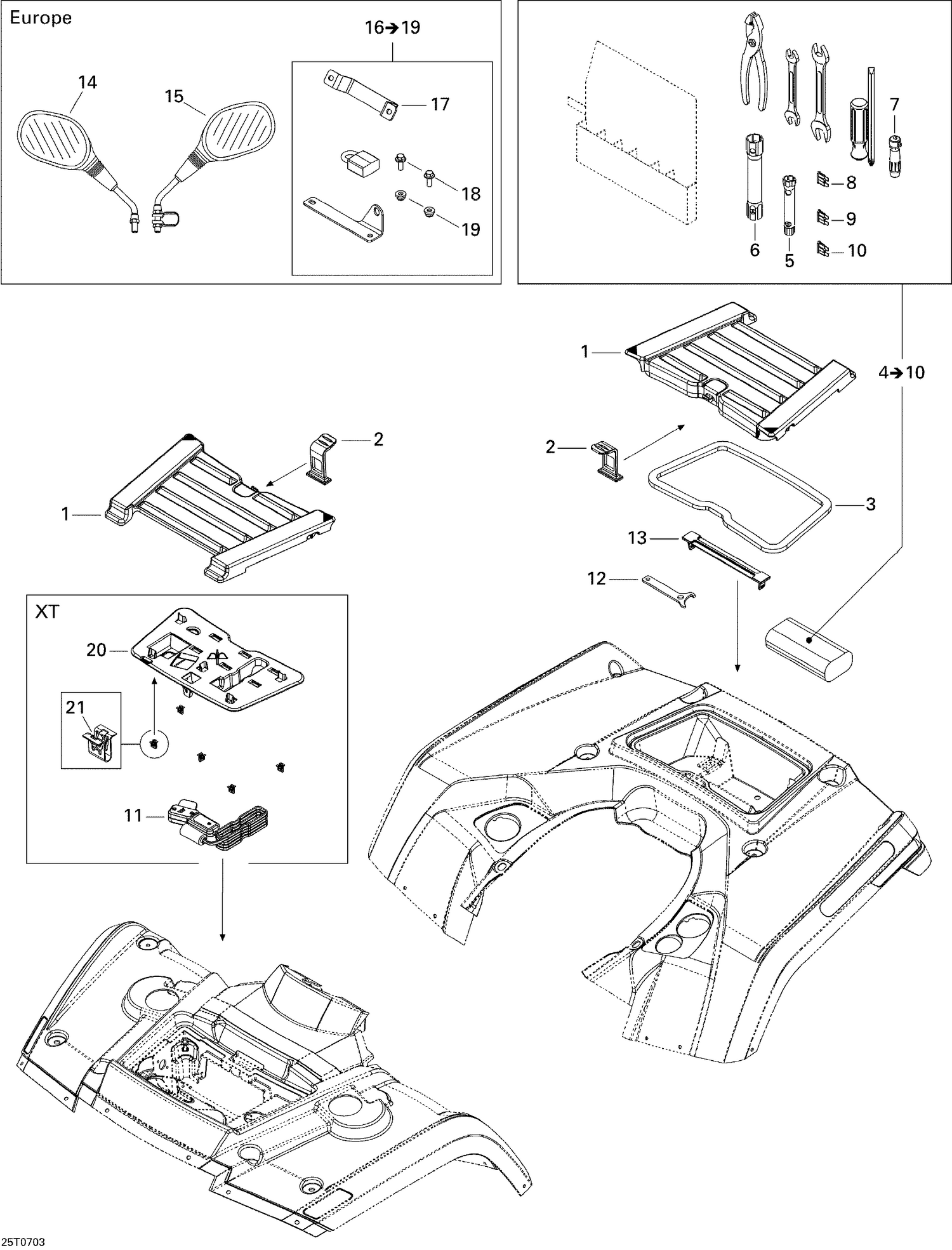

| Ref | Part Number | Description |
|---|
| 1 |
705003492 |
Storage Cover This part replaces 705001853. |
| 2 |
708200120 |
Cover Latch This part replaces 708200061. |
| 3 |
293250192 |
Neoprene Seal This part replaces 293250160. |
| 5 |
529014900 |
Socket Wrench 10/13 mm |
| 6 |
295000175 |
Socket Wrench 16/18 mm |
| 7 |
529000052 |
PRESSURE GAUGE - Call your local BRP dealership This part replaces 704700003. |
| 8 |
410917200 |
Fuse, 30 Amperes |
| 9 |
409003900 |
Fuse, 20 Amperes |
| 10 |
278000343 |
Fuse, 15 Amperes |
| 11 |
XXX |
Not Available As Spare Parts |
| 12 |
529000035 |
Adjustment Wrench This part replaces 529032900. |
| 13 |
708200121 |
COVER LATCH KIT - Call your local BRP dealership This part replaces 708200062. |
| 17 |
705000416 |
BRACKET - Call your local BRP dealership |
| 18 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 19 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 20 |
XXX |
Not Available As Spare Parts |
