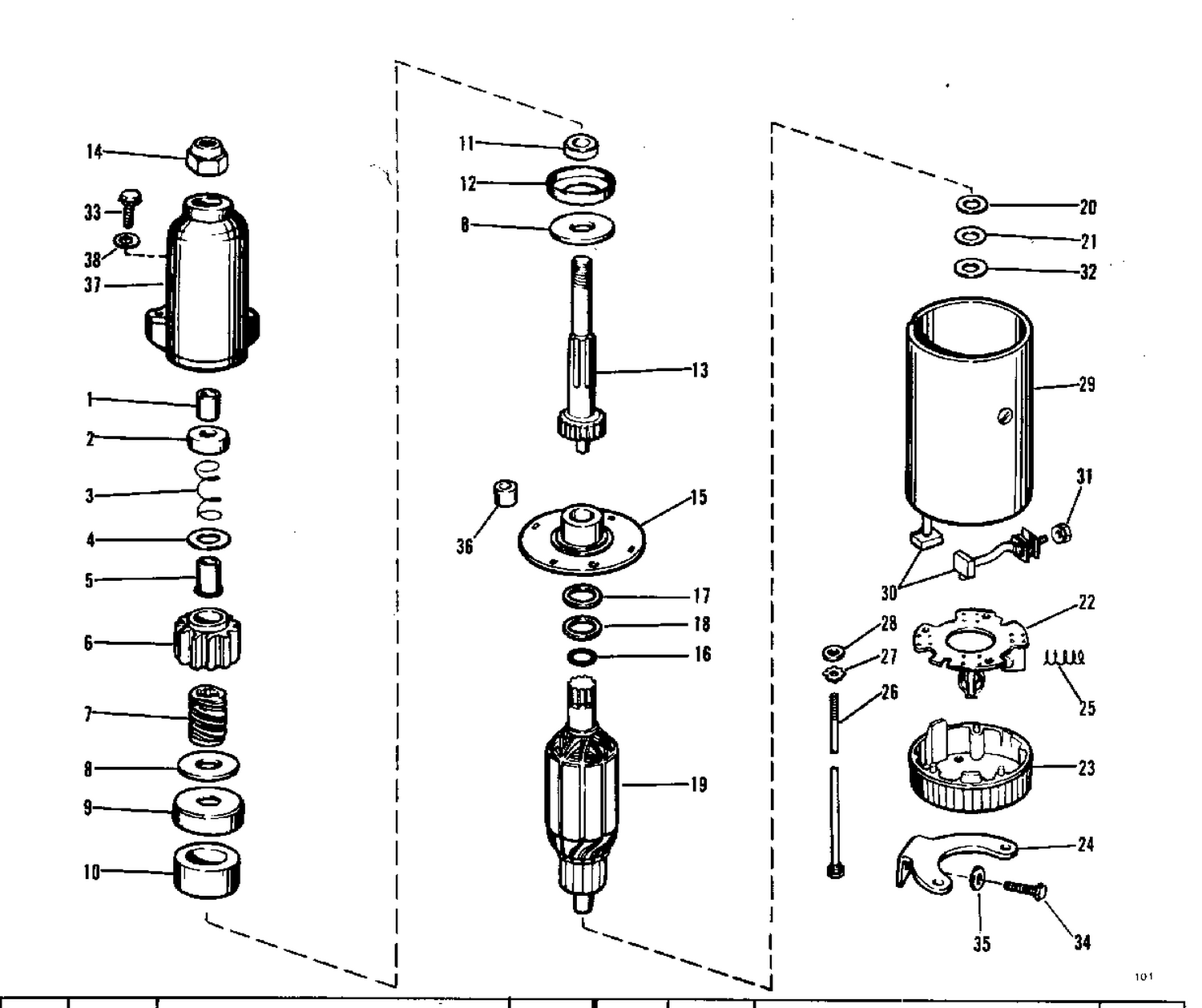

ELECTRIC STARTER GROUP
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0305545 | SLEEVE, Bendix drive |
| 2 | 0204375 | STOP, Pinion |
| 4 | 0204071 | WASHER, Pinion |
| 5 | 0204374 | SLEEVE, Anti-drift spring |
| 6 | 0204376 | PINION |
| 7 | 0204377 | SCREW SHAFT |
| 9 | 0204379 | CAP, Cushion, upper |
| 10 | 0204381 | CUSHION, Pinion |
| 11 | 0204378 | SPACE, Cushion |
| 12 | 0204380 | CAP, Cushion, lower |
| 13 | 0378178 | GEAR & SHAFT ASSY |
| 15 | 0381582 | END HEAD , Drive This part replaces 0379973. |
| 16 | 0310996 | O RING |
| 17 | 0204589 | WASHER, Fibre, 1 32" |
| 18 | 0204588 | WASHER STEEL, .042" |
| 19 | 0379971 | ARMATURE ASSY |
| 0377304 | 0377304 | STARTER DRIVE ASSEMBLY |
| 0379819 | 0379819 | STARTER MOTOR ASSY |
