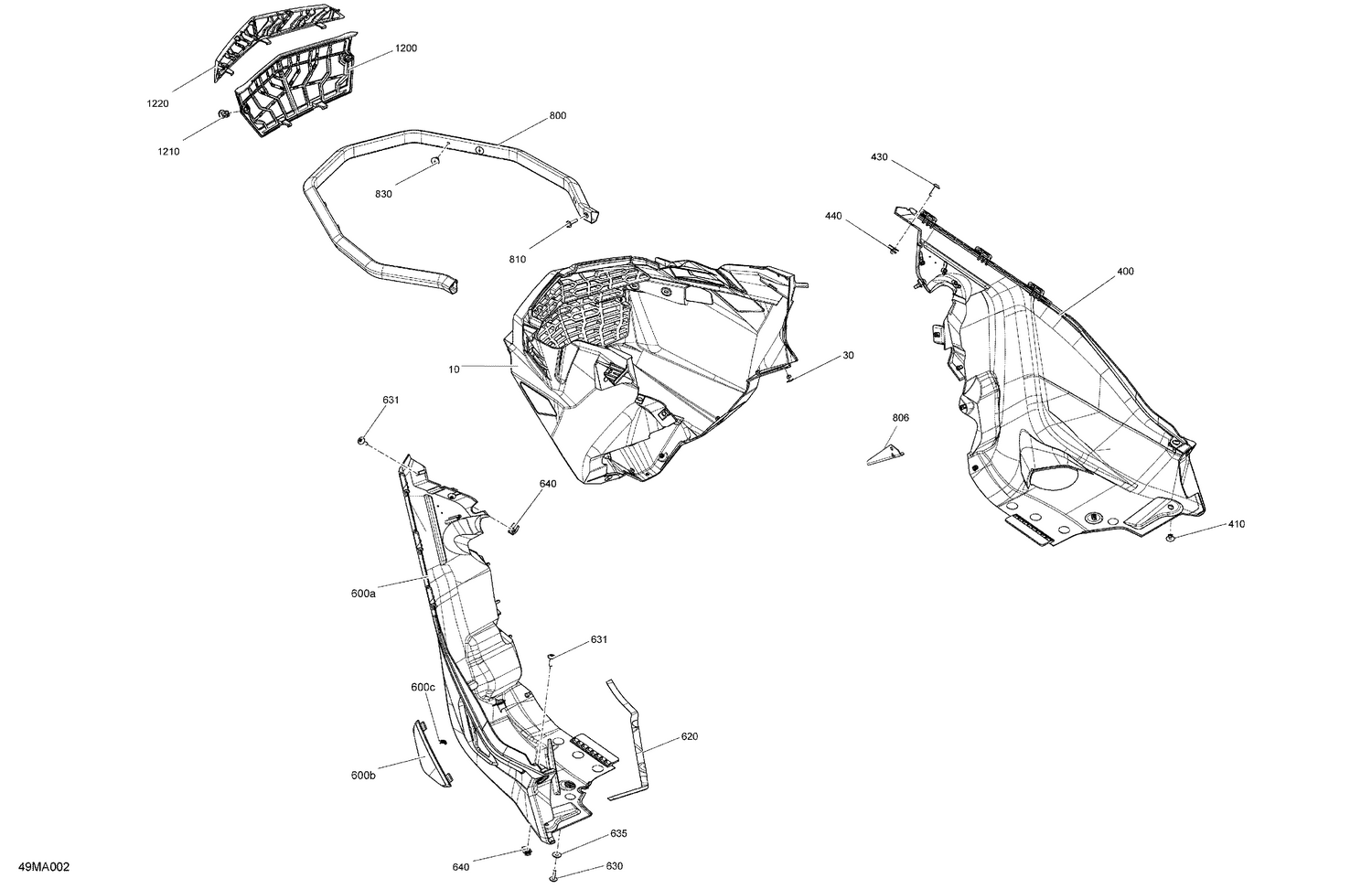

07- Body - Bottom Pan
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502007673 | Front Bottom Pan |
| 30 | 293150104 | Pop Rivet 3/16" |
| 400 | 502007929 | RH Bottom Pan |
| 410 | 293150104 | Pop Rivet 3/16" |
| 430 | 250000586 | Torx Truss M5 X 20 |
| 440 | 250000958 | Panel Nut M5 X 0.8 |
| 600a | 502007675 | LH Bottom Pan |
| 600b | 502007676 | Bottom Pan Door |
| 600c | 269800431 | Hairpin Cotter |
| 620 | 219704364 | Neoprene Seal (1PAC=3M) |
| 630 | 250000586 | Torx Truss M5 X 20 |
| 631 | 250000586 | Torx Truss M5 X 20 |
| 635 | 250200025 | Washer M5 |
| 640 | 250000958 | Panel Nut M5 X 0.8 |
| 800 | 502007460 | Front Bumper |
| 806 | 502008192 | RH Bumper Fastener |
| 810 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 | 293150104 | Pop Rivet 3/16" |
| 1200 | 502007978 | Belly Pan Filter |
| 1210 | 293150230 | Tuflok Plastic Rivet |
