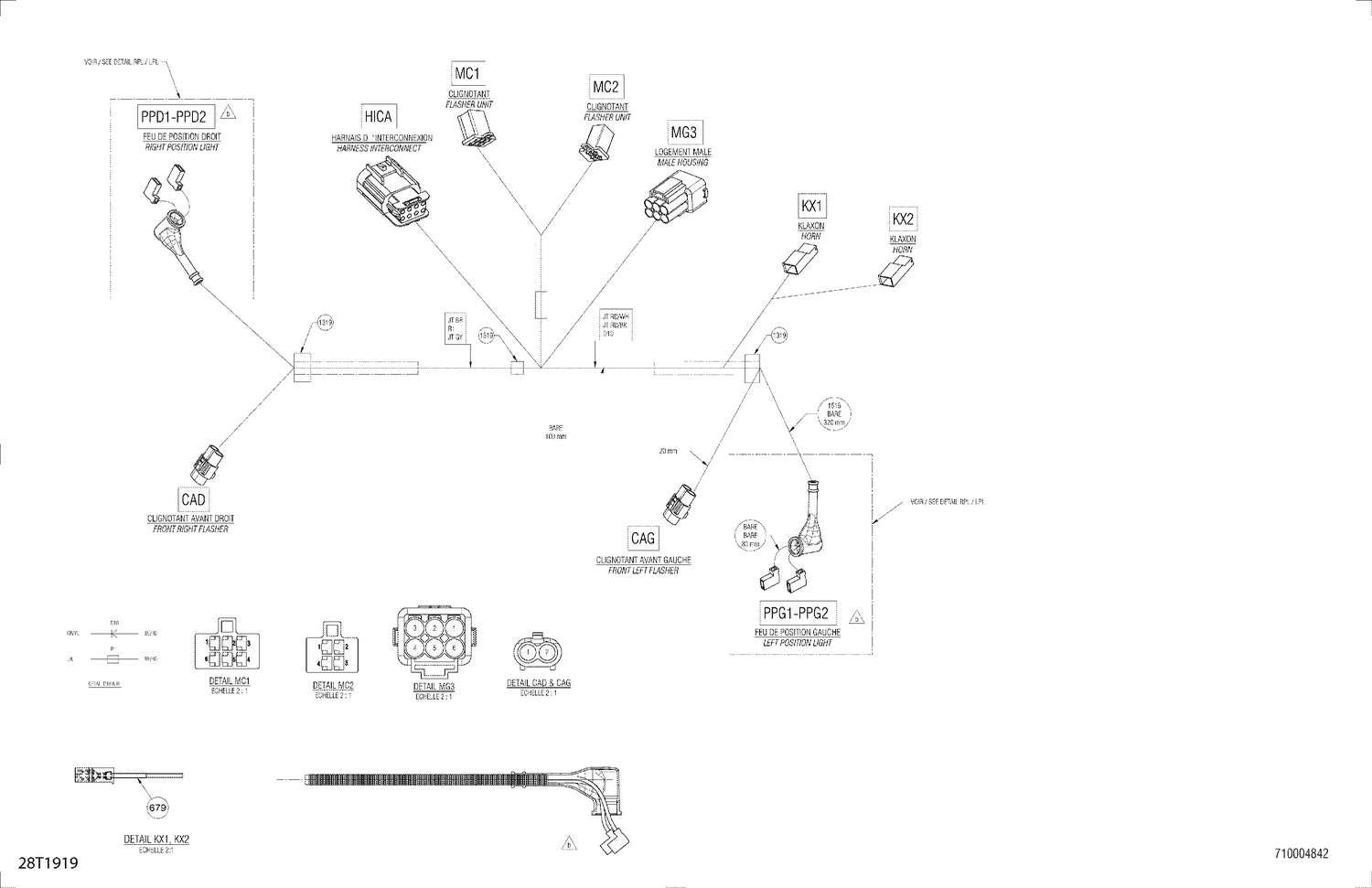

10- Main Harness 710004842
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| CAD | 409012100 | Female Terminal |
| CAD | 409012300 | Seal |
| CAG | 409012100 | Female Terminal |
| CAG | 409012300 | Seal |
| D10 | 409012700 | Diode |
| HICA | 710001038 | Clip |
| HICA | 710001224 | Terminal |
| HICA | 710001225 | Cap |
| HICA | 710001233 | Seal |
| HICA | 710001927 | Housing |
| KX1 | 219704448 | SHRINK TUBING 500MM LONG - Call your local BRP dealership |
| KX1 | 409010100 | Female Terminal |
| KX1 | 409010400 | Female Terminal Housing, 1 Circuit |
| KX2 | 219704448 | SHRINK TUBING 500MM LONG - Call your local BRP dealership |
| KX2 | 409010100 | Female Terminal |
| KX2 | 409010400 | Female Terminal Housing, 1 Circuit |
| MC1 | 710002314 | Housing |
| MC1 | 710002315 | Terminal |
| MC2 | 710002313 | Housing |
| MC2 | 710002315 | Terminal |
| MG3 | 409011300 | Male Terminal |
| MG3 | 710000080 | Cap |
| MG3 | 710000402 | Wire Seal |
| MG3 | 710001446 | Male Housing Terminal, 6 Circuits |
| PPD1 | 409010300 | Female Terminal |
| PPD1 | 710003269 | Cap Protector |
| PPD2 | 409010300 | Female Terminal |
| PPG1 | 409010300 | Female Terminal |
| PPG1 | 710003269 | Cap Protector |
| PPG2 | 409010300 | Female Terminal |
| 730 | 710004842 | Harness Ass'y |
