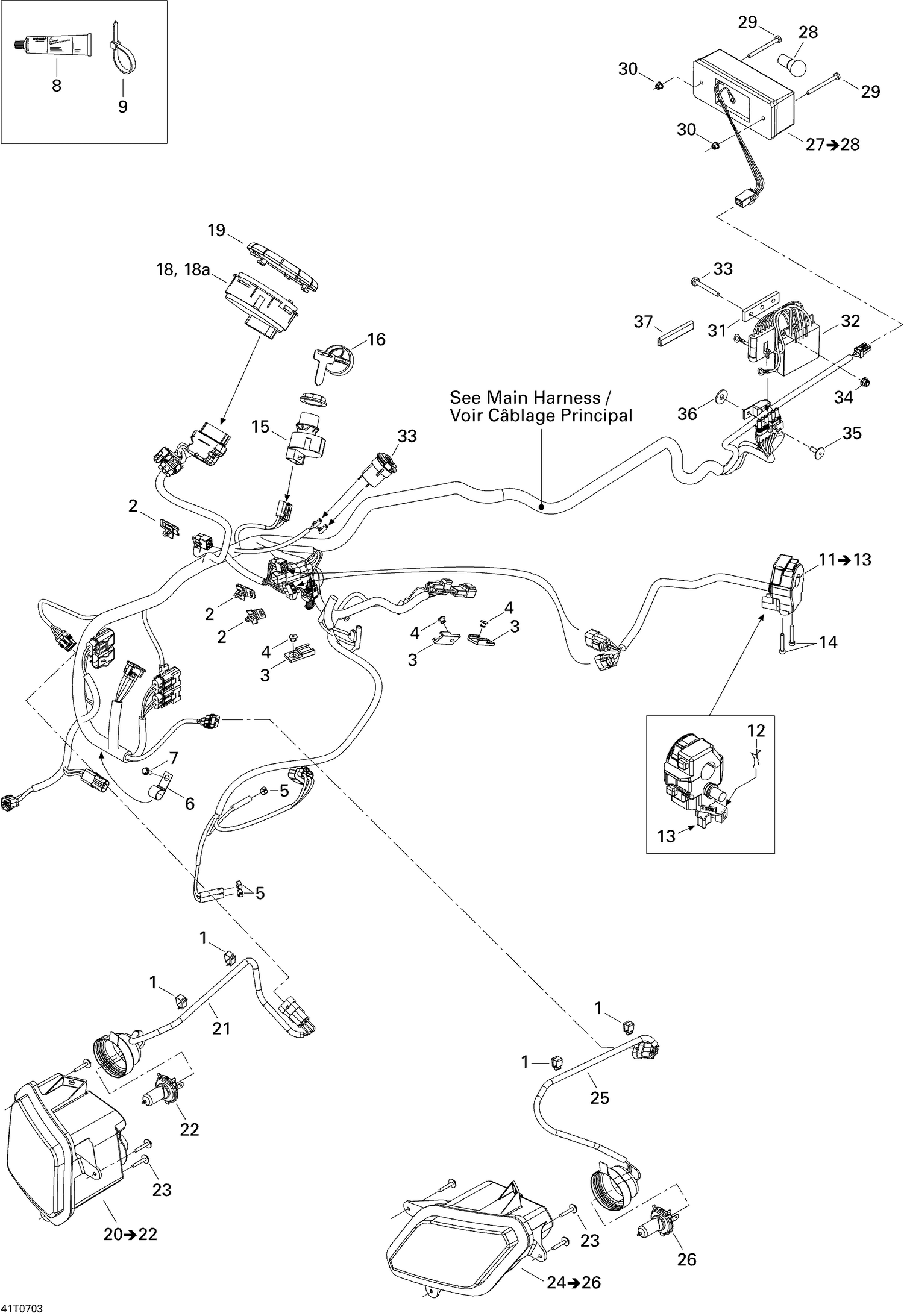

| Ref | Part Number | Description |
|---|
| 1 |
414227300 |
Clip |
| 2 |
515175283 |
Housing Support |
| 3 |
270000141 |
Clip |
| 4 |
390402400 |
Pop Rivet 3/16" |
| 5 |
293650100 |
Oetiker Clamp |
| 6 |
705600311 |
CLAMP - Call your local BRP dealership |
| 7 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 8 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 9 |
293750002 |
Tie Wrap 142 mm |
| 9 |
293750008 |
Tie Wrap 368 mm |
| 9 |
293750041 |
Tie-rap 627 mm |
| 9 |
414115200 |
Tie-Rap 180 mm |
| 12 |
710000631 |
CLIP - Call your local BRP dealership |
| 13 |
710000632 |
CHOKE LEVER - Call your local BRP dealership |
| 14 |
205053588 |
Socket Head Screw M5 X 35 |
| 15 |
710007867 |
Switch_Ignition This part replaces 710001030. |
| 16 |
715900029 |
Key, Groove on Right Side |
| 18 |
710000850 |
SPEEDOMETER - Call your local BRP dealership |
| 18a |
415128938 |
REMPLACEMENT LENS, SPEEDOMETER - Call your local BRP dealership |
| 19 |
710000353 |
TRIM RING - Call your local BRP dealership |
| 21 |
710000828 |
LIGHT HARNESS - Call your local BRP dealership |
| 22 |
710000871 |
Bulb, 12V 35/35W |
| 23 |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 25 |
710000828 |
LIGHT HARNESS - Call your local BRP dealership |
| 26 |
710000871 |
Bulb, 12V 35/35W |
| 28 |
520000758 |
Bulb This part replaces 410504100. |
| 29 |
208656091 |
PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership |
| 30 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 31 |
710000912 |
SPACER - Call your local BRP dealership |
| 32 |
710000907 |
VOLTAGE REGULATOR A'SSY - Call your local BRP dealership |
| 33 |
207665044 |
Hex. Flange Screw M6 X 50 |
| 33 |
861507200 |
Outlet Power Kit, 12 Volts |
| 34 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 35 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 36 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
