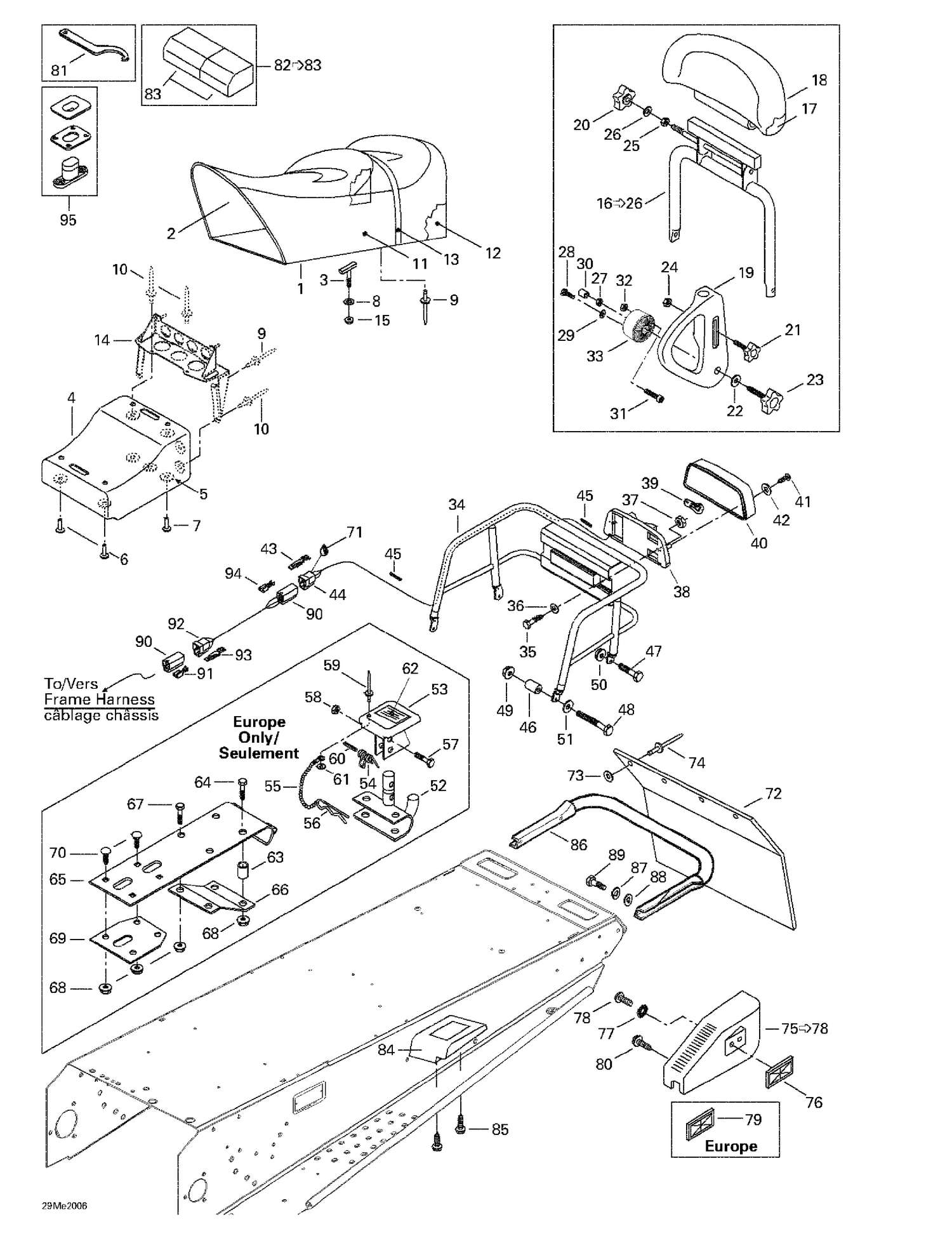

| Ref | Part Number | Description |
|---|
| Not |
Available |
As Spare Part - Wrench Fork (16/18 mm) (Not Shown) |
| 1 |
Not |
Available As Spare Part - Seat Ass'y |
| 2 |
510003597 |
Sub Seat |
| 4 |
572051200 |
Rear Trunk |
| 5 |
234051410 |
Flat Washer M5 |
| 6 |
Not |
Available As Spare Part - Pop Rivet |
| 7 |
Not |
Available As Spare Part - Pop Rivet |
| 8 |
732610072 |
Push Nut |
| 9 |
Not |
Available As Spare Part - Pop Rivet Avex |
| 10 |
Not |
Available As Spare Part - Pop Rivet |
| 11 |
510003705 |
Seat Cover |
| 12 |
415038202 |
Seat Foam |
| 13 |
415064800 |
Seat Belt |
| 14 |
Not |
Available As Spare Part - Lens Rear Support |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 17 |
510003779 |
Foam |
| 18 |
510003780 |
Cover |
| 19 |
510003542 |
Arm RH |
| 20 |
510003532 |
Fem. Handle M8 x 1.25 mm |
| 21 |
510003533 |
Handle M8 X 35 |
| 22 |
732900050 |
WASHER - Call your local BRP dealership |
| 23 |
510003534 |
Male Handle M12 x 50 mm |
| 24 |
510003576 |
Hex. Nut |
| 25 |
510003578 |
Hex. Nut |
| 26 |
510003584 |
Lock Washer |
| 27 |
Not |
Available As Spare Part - Lock Spring Nut M12 |
| 28 |
207182544 |
Hex. Screw M8 X 25 |
| 29 |
234181601 |
Lock Washer 8 mm, Stainless |
| 30 |
510003628 |
Hose |
| 31 |
205085044 |
Socket Head Screw M8 x 50 |
| 32 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 33 |
510003707 |
Pivot |
| 34 |
517273100 |
Rack |
| 35 |
207053044 |
Hex. Screw M5 X 30 |
| 36 |
517297900 |
WASHER - Call your local BRP dealership |
| 37 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 38 |
515175397 |
LAMP HOUSING - Call your local BRP dealership This part replaces 515175404. |
| 39 |
520000758 |
Bulb This part replaces 410504000. |
| 40 |
414513700 |
Lens |
| 41 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 42 |
414516400 |
Washer - Call your local BRP dealership |
| 43 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 44 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 45 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 46 |
517185600 |
Spacer |
| 47 |
207161844 |
Hex. Screw M6 X 18 |
| 48 |
207064044 |
Hex. Screw M6 X 40 |
| 49 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 50 |
233061414 |
Hex. Flange Nut M6 |
| 51 |
234061410 |
Flat Washer 6 mm |
| 52 |
517199300 |
Hitch |
| 53 |
517152700 |
Hitch Protector |
| 54 |
517152800 |
SPRING - Call your local BRP dealership |
| 55 |
Not |
Available As Spare Part - Chain (Europe) |
| 56 |
114045200 |
Hair Pin |
| 57 |
207063044 |
Hex. Screw M6 X 30 |
| 58 |
232561414 |
Elastic Stop Nut M6 |
| 59 |
390409400 |
RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership |
| 60 |
732804000 |
SPRING PIN M3 X 24 - Call your local BRP dealership |
| 61 |
Not |
Available As Spare Part - Flat Washer (Europe) |
| 62 |
414998500 |
Instruction Label (Hitch) |
| 63 |
517191700 |
SPACER - Call your local BRP dealership |
| 64 |
207065044 |
HEX. CAP SCREW M6 X 50 - Call your local BRP dealership |
| 65 |
511000019 |
Support |
| 66 |
511000022 |
REINFORCEMENT - Call your local BRP dealership |
| 67 |
207161844 |
Hex. Screw M6 X 18 |
| 68 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 69 |
517256100 |
Inner Plate |
| 70 |
207762044 |
Carriage Bolt M6 X 20 |
| 71 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 72 |
572059700 |
Snow Guard |
| 73 |
517225900 |
Flat Washer |
| 74 |
293150100 |
Pop Rivet 3/16" This part replaces 390908000. |
| 76 |
414510100 |
REFLECTOR, RED - Call your local BRP dealership |
| 77 |
234451418 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 78 |
208651041 |
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 79 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 80 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 81 |
529000035 |
Adjustment Wrench This part replaces 529032900. |
| 83 |
708200043 |
TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
| 84 |
572088700 |
RH Footrest |
| 85 |
243141630 |
Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 86 |
517243800 |
Rear Bumper |
| 87 |
234181401 |
Lock Washer 8 mm |
| 88 |
234081410 |
Flat Washer 8 mm |
| 89 |
207182044 |
Hex. Screw M8 X 20 |
| 90 |
409204300 |
Female Housing |
| 91 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 92 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 93 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 94 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 510003607 |
Arm |
LH 510003607 |
| 529000003 |
Clé |
Ouverte 15/17 mm - Appelez votre concessionnaire BRP local This part replaces 529019300. 529000003 |
| 529000003 |
FORK |
WRENCH 15/17 MM - Call your local BRP dealership This part replaces 529019300. 529000003 |
| 529000060 |
Pince |
Démarrage This part replaces 529019400. 529000060 |
| 529000060 |
Starter |
Grip This part replaces 529019400. 529000060 |
| 529014700 |
Clé |
Multiple - Appelez votre concessionnaire BRP local 529014700 |
| 529014800 |
Socket |
Wrench 21/26 mm 529014800 |
| 529014900 |
Socket |
Wrench 10/13 mm 529014900 |
| 529017300 |
Clé |
Ouverte - Appelez votre concessionnaire BRP local 529017300 |
| 529017300 |
FORK |
WRENCH - Call your local BRP dealership 529017300 |
| 529019200 |
DRIVER |
SCREW - Call your local BRP dealership 529019200 |
| 529035501 |
Spacing |
Tool 529035501 |
| 572088800 |
LH |
Footrest 572088800 |
| 572088800 |
Repose-Pieds |
GA 572088800 |
| 580642900 |
LH |
Moulding Ass'y (Cargo) 580642900 |
