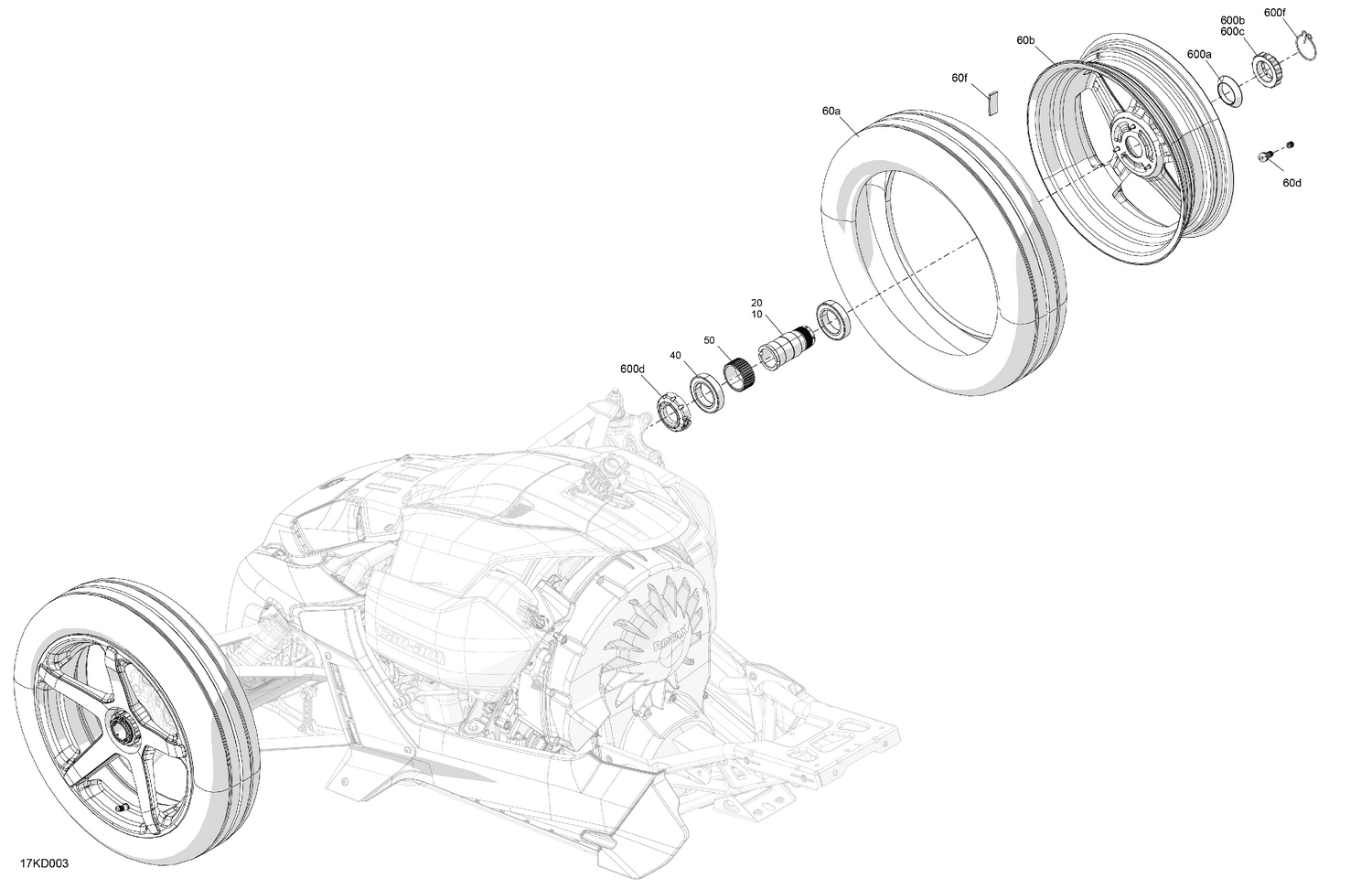

03- Drive - Front Wheels
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706204864 | LH Front Wheel Axle |
| 20 | 706204735 | RH Front Wheel Axle |
| 40 | 293350142 | Ball Bearing |
| 50 | 705601557 | Tone Ring (trigger wheel) |
| 60a | 705403055 | Front Tire 145/60R16 |
| 60b | 705403604 | Deep Black, 16 Inch Rim This part replaces 705402870. |
| 60d | 705400193 | Rim Valve With Cap |
| 60f | 705503182 | Balancing Weight |
| 600a | 705401983 | Conical Support Ring |
| 600b | 705403491 | RH Specialized Nut M45 Ass'y |
| 600c | 705402730 | Wheel Nut M45 |
| 600d | 705402677 | Hub Cap |
