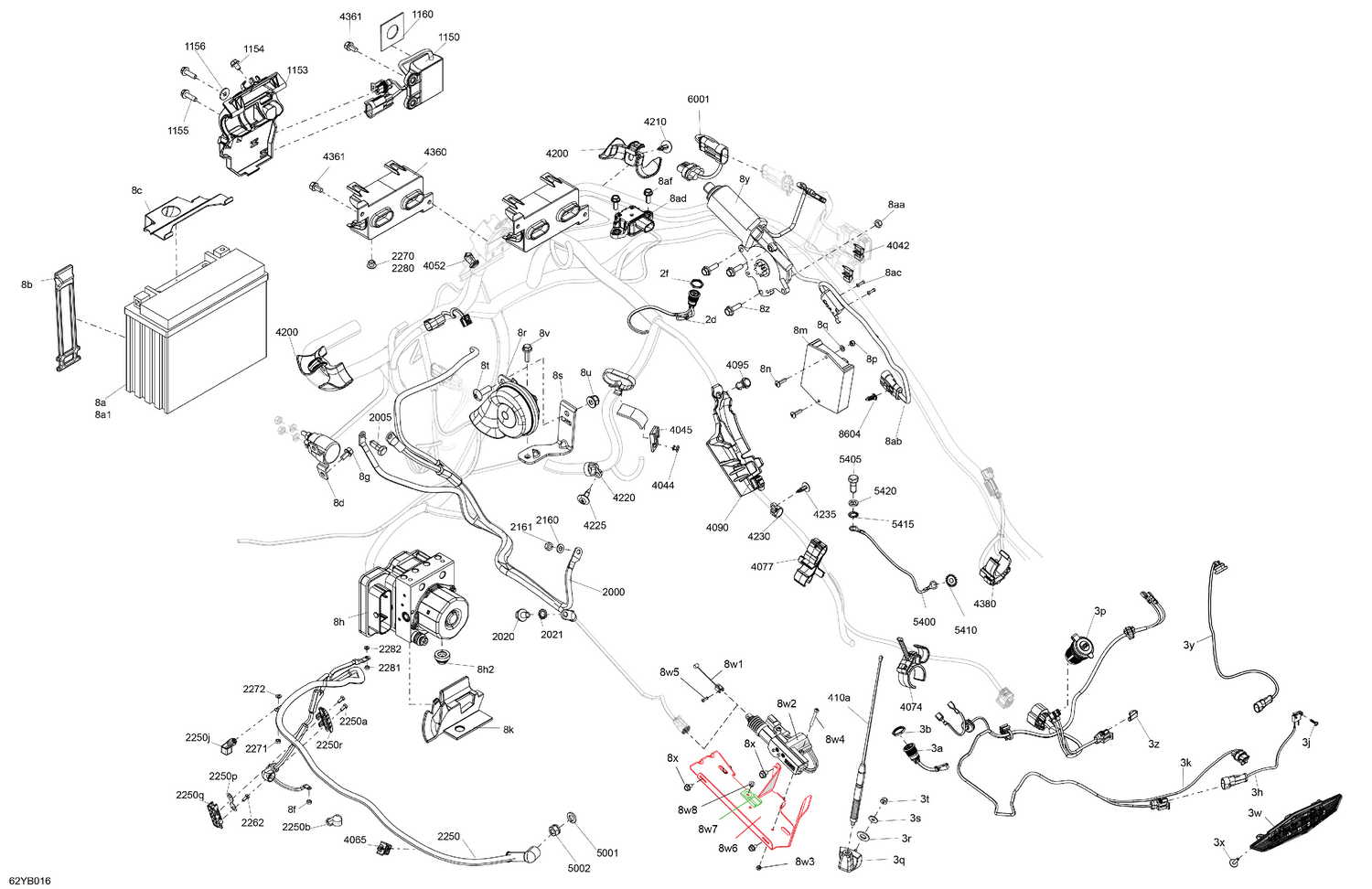

| Ref | Part Number | Description |
|---|
| 2d |
710004598 |
Switch |
| 2f |
710004108 |
Nut |
| 3a |
710004598 |
Switch |
| 3b |
710004108 |
Nut |
| 3h |
710005315 |
Open Detection |
| 3j |
250000614 |
Screw-pt.flange Oval Hd.k30 X 12 |
| 3k |
710008257 |
Upper Rear Box Wiring Harness |
| 3p |
219400510 |
USB Outlet |
| 3q |
710005631 |
Antenna Support |
| 3r |
234001410 |
Flat Washer 10 mm |
| 3s |
234052600 |
Flat Washer 5 mm, Stainless |
| 3t |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 3w |
520001785 |
Non-fonctional Rear Tail-light |
| 3x |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 3y |
710001533 |
Trunk Light |
| 3z |
409210100 |
Clip Bracket Connector (edge) |
| 8a1 |
515179142 |
Battery Bolt Kit |
| 8aa |
232561434 |
Elastic Stop Nut M6 |
| 8ab |
710001379 |
Brake Pressure Switch Ass'y |
| 8ac |
293150150 |
Pop Rivet |
| 8ad |
710005658 |
Yaw Rate Sensor |
| 8af |
210261650 |
Hex. Flange Screw M6 X 16 |
| 8b |
520000528 |
Latch |
| 8c |
710002893 |
Battery Holder |
| 8d |
278003012 |
Starter Relay |
| 8f |
232561600 |
Hex. Elastic Stop Nut M6 |
| 8g |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 8h2 |
710003279 |
Shock Damper |
| 8k |
710003996 |
VCM Harness Protector |
| 8m |
710008602 |
PBM Module Ass'y |
| 8n |
250000750 |
Torx Screw M4 X 16 |
| 8p |
232541484 |
Elastic Stop Nut M4 |
| 8q |
234041480 |
Flat Washer 4 mm |
| 8r |
710004940 |
Horn |
| 8s |
710005769 |
Horn Support |
| 8t |
250000874 |
Torx Truss M8 X 25 |
| 8u |
233281414 |
Hex. Flange Elastic Nut M8 |
| 8v |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 8w1 |
710002889 |
Reverse Cable |
| 8w2 |
710011269 |
Actuator |
| 8w3 |
232541414 |
Elastic Stop Nut M4 |
| 8w4 |
205444056 |
Socket Head Screw M4 X 40 |
| 8w5 |
390403000 |
Pop Rivet 5/32 |
| 8w6 |
710005642 |
Reverse Actuator Support |
| 8w7 |
270000141 |
Clip |
| 8w8 |
390402400 |
Pop Rivet 3/16" |
| 8x |
210261250 |
Hex. Flange Screw M6 X 12 |
| 8y |
710007256 |
Actuator Motor |
| 8z |
207662054 |
Hex. Flange Screw M6 X 20 |
| 410a |
710005434 |
Antenna |
| 1150 |
710004916 |
Dess Module |
| 1153 |
710004308 |
Wire Support |
| 1154 |
210261050 |
Hex. Forming Screw M6 X 10 |
| 1155 |
210262050 |
Hexagonal Head Screw |
| 1156 |
234062410 |
Flat Washer 6 mm |
| 1160 |
293830091 |
Rubber Bumper |
| 2000 |
710008074 |
Pos Cable |
| 2005 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 2020 |
207581244 |
Hex. Flange Screw M8 X 12, Scotch Grip |
| 2021 |
234481608 |
Serrated Lock Washer 8 mm |
| 2160 |
234061600 |
Stainless Flat Washer M6 |
| 2161 |
232561414 |
Elastic Stop Nut M6 |
| 2250a |
207161444 |
Hex. Screw M6 X 14 |
| 2250b |
710000393 |
Protector Cap |
| 2250j |
710002945 |
Battery Guard |
| 2250p |
710008102 |
Fuse 80 A |
| 2250q |
710008098 |
Fuse Holder Support |
| 2250r |
710008154 |
Fuse Holder Cover |
| 2262 |
210261250 |
Hex. Flange Screw M6 X 12 |
| 2270 |
205961060 |
Socket Head Screw M6 X 10, Scotch Grip |
| 2271 |
232061600 |
Hex. Nut M6 |
| 2272 |
234161601 |
Lock Washer Helical M6 |
| 2280 |
205961060 |
Socket Head Screw M6 X 10, Scotch Grip |
| 2281 |
232061600 |
Hex. Nut M6 |
| 2282 |
234161601 |
Lock Washer Helical M6 |
| 4042 |
710001222 |
Lock |
| 4044 |
390402400 |
Pop Rivet 3/16" |
| 4045 |
270000141 |
Clip |
| 4052 |
293150230 |
Tuflok Plastic Rivet |
| 4065 |
293750083 |
Cable Support |
| 4074 |
710004613 |
Support |
| 4077 |
710004669 |
Wire Support |
| 4090 |
710004794 |
Harness Holder |
| 4095 |
293150230 |
Tuflok Plastic Rivet |
| 4200 |
710004931 |
Harness Holder |
| 4210 |
414745900 |
Tuflock Phillips Plastic Screw |
| 4220 |
710004424 |
Tie Rap |
| 4225 |
414745900 |
Tuflock Phillips Plastic Screw |
| 4230 |
710004424 |
Tie Rap |
| 4235 |
414745900 |
Tuflock Phillips Plastic Screw |
| 4360 |
710004472 |
Fuse Holder Support |
| 4361 |
210261250 |
Hex. Flange Screw M6 X 12 |
| 4380 |
710004299 |
Cable Support |
| 5001 |
234181601 |
Lock Washer 8 mm, Stainless |
| 5002 |
232081414 |
Hex. Nut M8 |
| 5400 |
710006436 |
Fuel Tank Cable |
| 5405 |
207382060 |
Hex. Screw M8 X 20, Scotch Grip |
| 5410 |
250200041 |
Lock Washer Serrated M6 |
| 5415 |
234481608 |
Serrated Lock Washer 8 mm |
| 5420 |
250200111 |
Washer |
| 6001 |
710007190 |
Wiring Harness Adaptor |
