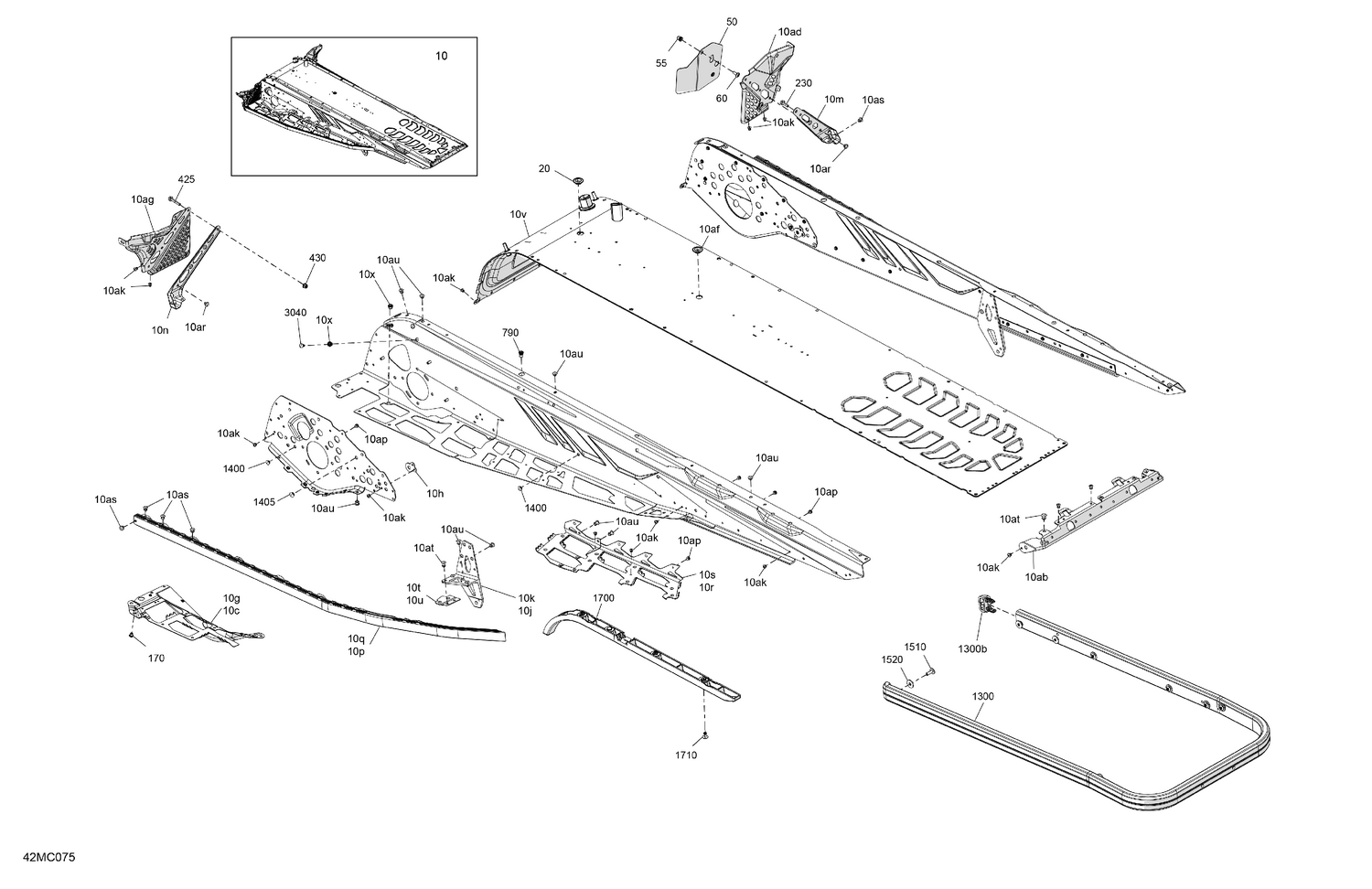

06- Frame - System - Rear Section
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 10ab | 518328990 | Rear Cap |
| 10ad | 518334509 | RH Footrest |
| 10af | 293730052 | Black, Plug |
| 10ag | 518334305 | LH Foot Protector This part replaces 518331559. |
| 10ak | 293150203 | Rivet Avibulb 3/16 |
| 10ap | 293150245 | Henrob Rivet |
| 10ar | 293150264 | Rivet Ornit 6,5 X 10.5 |
| 10as | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 10at | 293150267 | Rivet Ornit 6,5 X 16.5 |
| 10au | 293150266 | Ornit Rivet 6,5 X 14.5 |
| 10c | 518332578 | RH Footrest Reinforcement |
| 10g | 518332577 | LH Footrest Reinforcement |
| 10h | 518335959 | Front Suspension Arm Reinforcement This part replaces 518329659. |
| 10j | 518334407 | RH Rear Suspension Support This part replaces 518334407. |
| 10k | 518334406 | LH Rear Suspension Support |
| 10m | 518334507 | Stirrup Reinforcement |
| 10n | 518332924 | Deep Black, LH Chassis Reinforcement |
| 10p | 518328451 | RH Roller |
| 10q | 518328452 | LH Roller |
| 10r | 518331564 | RH Central Tunnel Reinforcement |
| 10s | 518331565 | LH Central Tunnel Reinforcement |
| 10t | 518329088 | LH Reinforcement Plate |
| 10u | 518329089 | RH Reinforcement Plate |
| 10v | 518334491 | Radiator Tunnel 154 Ass'y |
| 10x | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 20 | 293730052 | Black, Plug |
| 50 | 518331823 | Heat Shield |
| 55 | 293450275 | Insert |
| 60 | 250000717 | Torx Head Screw M6 X 16 |
| 170 | 293450267 | Insert M5 - 0.8 |
| 230 | 207562056 | Hex. Flange Screw M6 X 20 |
| 425 | 207562056 | Hex. Flange Screw M6 X 20 |
| 430 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 790 | 293450278 | Insert |
| 1300b | 520001629 | Bumper Cap |
| 1400 | 293730041 | Full Moon Dart 8 mm |
| 1405 | 293730059 | Full Moon Dart 10 mm |
| 1510 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1520 | 224061201 | Flat Washer |
| 1700 | 518329982 | Front Protector |
| 1710 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
