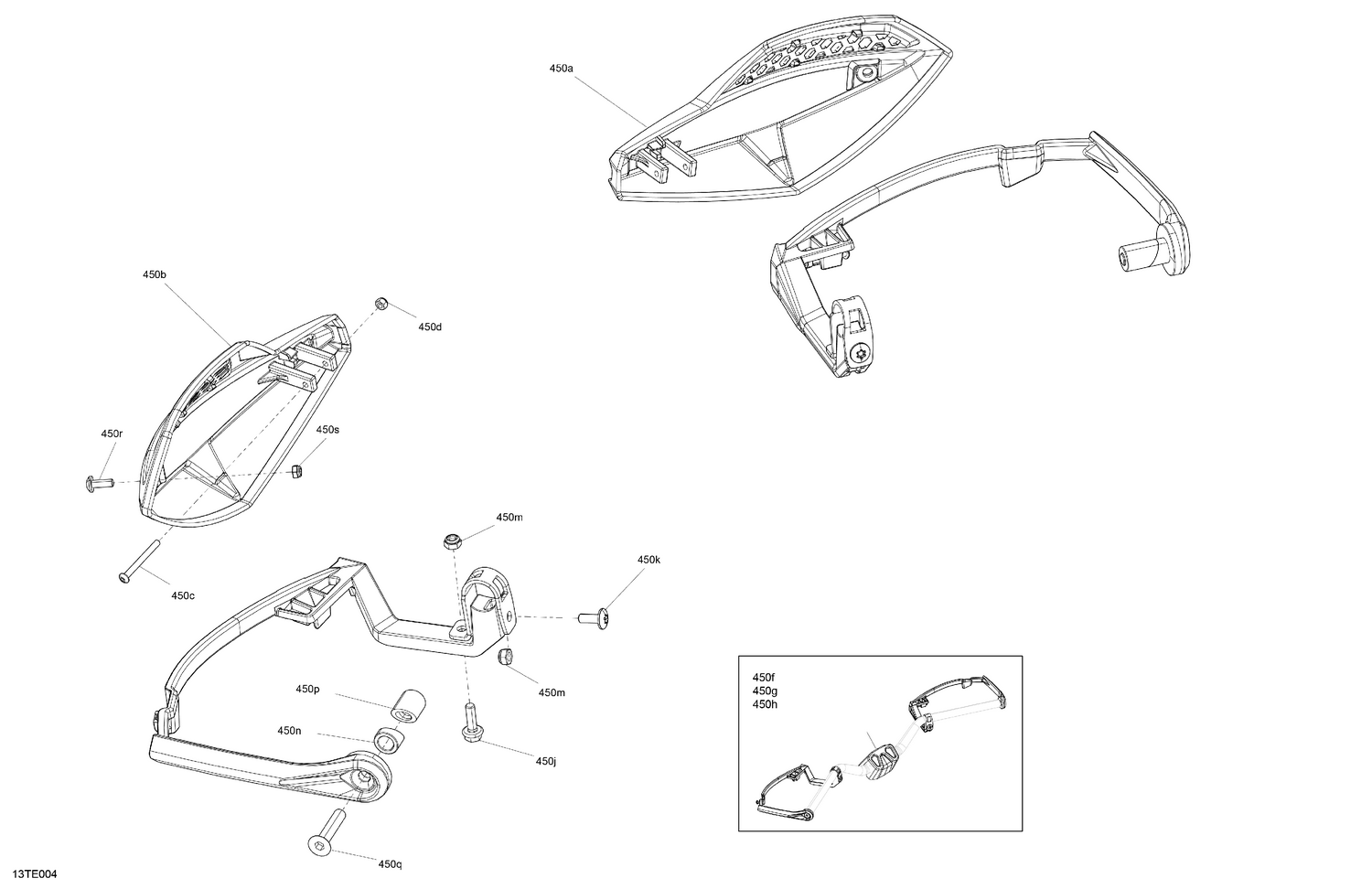

03- Mechanic - Air Deflector
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 450a | 709402971 | Legion Red, RH Hand Air Deflector Drilled |
| 450b | 709402970 | Legion Red, LH Hand Air Deflector Drilled |
| 450c | 205444056 | Socket Head Screw M4 X 40 |
| 450d | 232541414 | Elastic Stop Nut M4 |
| 450f | 715001378 | Air Deflector Support Kit |
| 450g | 715001378 | Air Deflector Support Kit |
| 450h | 715001378 | Air Deflector Support Kit |
| 450j | 207662044 | Hex. Flange Screw M6 X 20 |
| 450k | 250000717 | Torx Head Screw M6 X 16 |
| 450m | 232561600 | Hex. Elastic Stop Nut M6 |
| 450n | 709400161 | Small Bracket |
| 450p | 709400162 | Large Bracket |
| 450q | 205384034 | Socket Head Screw |
| 450r | 250000742 | Torx Screw M5 X 14 |
