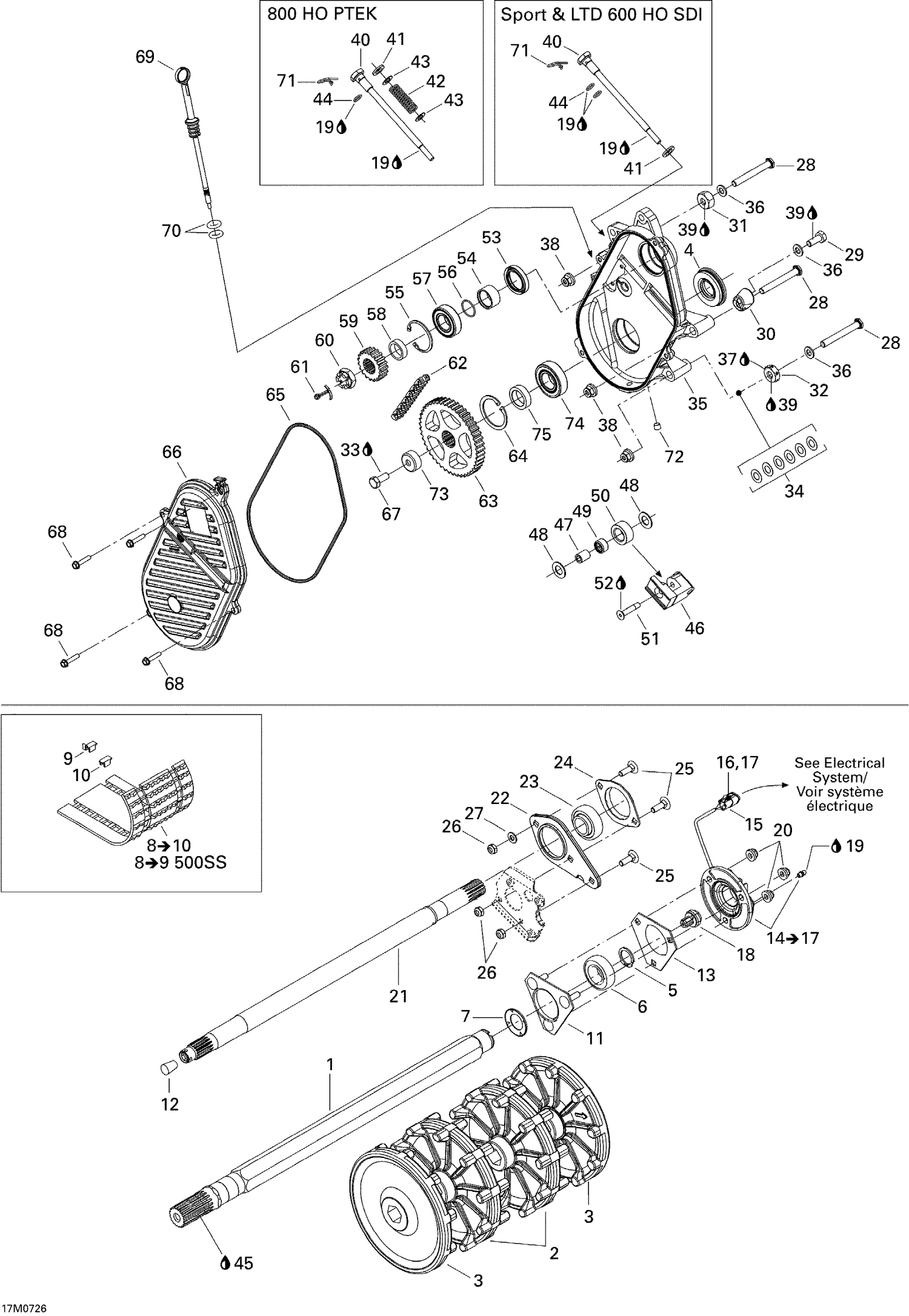

| Ref | Part Number | Description |
|---|
| 1 |
501027400 |
DRIVE AXLE - Call your local BRP dealership |
| 2 |
504152198 |
SPROCKET, 10 TEETH - Call your local BRP dealership |
| 3 |
504152199 |
HALF SPROCKET, 10 TEETH - Call your local BRP dealership |
| 4 |
504151918 |
Oil Seal Ass'y |
| 5 |
371910200 |
CIRCLIP - Call your local BRP dealership |
| 6 |
293350060 |
Ball Bearing This part replaces 504152009. |
| 7 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 9 |
415129528 |
Track Guide This part replaces 504152410. |
| 10 |
504152651 |
Cleat |
| 11 |
504151860 |
BEARING HOUSING - Call your local BRP dealership |
| 12 |
414784800 |
CORK - Call your local BRP dealership |
| 13 |
501025000 |
FLANGE - Call your local BRP dealership |
| 15 |
515175671 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 16 |
278000632 |
Female Terminal |
| 17 |
515175676 |
Female Lock, 3 Circuits |
| 18 |
504152040 |
MAGNETIC ADAPTOR - Call your local BRP dealership |
| 19 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 20 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 21 |
504152018 |
COUNTER SHAFT - Call your local BRP dealership |
| 22 |
504151968 |
SPACER - Call your local BRP dealership |
| 23 |
415129555 |
Ball Bearing Kit This part replaces 504152535. |
| 24 |
504153089 |
BEARING HOUSING ASS'Y - Call your local BRP dealership This part replaces 501026900. |
| 25 |
207782544 |
Carriage Bolt, M8 X 25 |
| 26 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 27 |
234081410 |
Flat Washer 8 mm |
| 28 |
250000151 |
HEX. SCREW M10 X 80 - Call your local BRP dealership |
| 29 |
207102544 |
Hex. Screw M10 X 25 |
| 30 |
504152252 |
Spacer |
| 31 |
504083800 |
Spacer |
| 32 |
504152237 |
SPACER - Call your local BRP dealership |
| 33 |
293800005 |
Loctite 271, 10 ml |
| 34 |
504073700 |
WASHER - Call your local BRP dealership |
| 35 |
504152481 |
CHAINCASE - Call your local BRP dealership |
| 36 |
503175800 |
Washer |
| 37 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 38 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 39 |
293800060 |
Loctite 243, 10 ml |
| 40 |
732601314 |
ADJUSTMENT SCREW - Call your local BRP dealership |
| 41 |
234001410 |
Flat Washer 10 mm |
| 42 |
XXX |
Not Available As Spare Parts |
| 43 |
XXX |
Not Available As Spare Parts |
| 44 |
414484400 |
O-Ring |
| 45 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 46 |
504151951 |
Chain Tensioner |
| 47 |
504080200 |
SPACER - Call your local BRP dealership |
| 48 |
504080300 |
WASHER - Call your local BRP dealership |
| 49 |
405403000 |
NEEDLE BEARING - Call your local BRP dealership |
| 50 |
414531300 |
ROLLER - Call your local BRP dealership |
| 51 |
732601144 |
SCREW - Call your local BRP dealership |
| 52 |
293800005 |
Loctite 271, 10 ml |
| 53 |
293200158 |
Oil Seal This part replaces 415049300. |
| 54 |
507031500 |
SPACER - Call your local BRP dealership |
| 55 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 56 |
414876700 |
O-RING - Call your local BRP dealership |
| 57 |
293350115 |
Ball Bearing This part replaces 504152006. |
| 58 |
504152587 |
SHIM - Call your local BRP dealership |
| 59 |
504153910 |
Sprocket 21 Teeth This part replaces 504096200. |
| 60 |
250000012 |
HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership |
| 61 |
371006300 |
PIN COTTER - Call your local BRP dealership |
| 62 |
504151857 |
Drive Chain, 74 Links |
| 63 |
504148500 |
Pignon À 43 Dents, Large - Appelez votre concessionnaire BRP local |
| 64 |
415064300 |
CIRCLIP, INTERIOR - Call your local BRP dealership |
| 65 |
415046400 |
O-Ring |
| 66 |
504152471 |
CHAINCASE COVER - Call your local BRP dealership |
| 67 |
207102544 |
Hex. Screw M10 X 25 |
| 68 |
210263050 |
Hex. Flange Screw M6 X 30 This part replaces 210263080. |
| 69 |
504151703 |
FILLER CAP ASS'Y - Call your local BRP dealership |
| 70 |
414969400 |
O-RING - Call your local BRP dealership |
| 71 |
414575600 |
Hair Pin |
| 72 |
504151921 |
Plug 1/8”-27 |
| 73 |
504152460 |
CAP - Call your local BRP dealership |
| 74 |
504152005 |
Ball Bearing |
