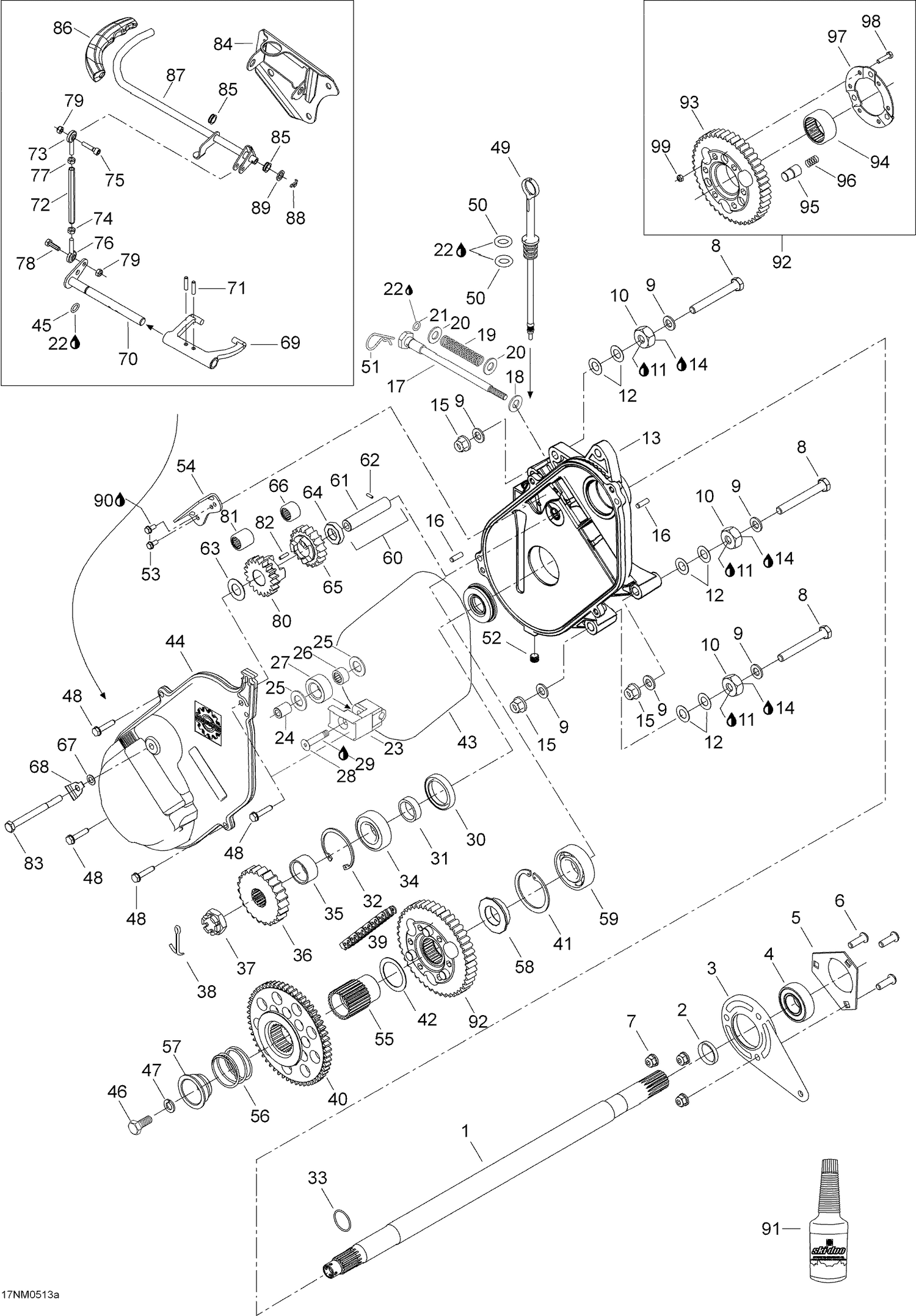

| Ref | Part Number | Description |
|---|
| 1 |
501026300 |
COUNTER SHAFT - Call your local BRP dealership |
| 2 |
504149100 |
Spacer |
| 3 |
080044200 |
Casting Spacer |
| 4 |
415129555 |
Ens Roulement Bille*Ball Bearing Kit This part replaces 504152026. |
| 5 |
501025000 |
FLANGE - Call your local BRP dealership |
| 6 |
40344 |
Socket head screw M8 x 25 |
| 7 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 8 |
40190 |
Hex, screw M10 x 80 |
| 9 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 10 |
504083800 |
Spacer |
| 11 |
293800060 |
Loctite 243, 10ml |
| 12 |
504073700 |
WASHER - Call your local BRP dealership |
| 13 |
504152062 |
Chaincase |
| 14 |
293800070 |
Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 15 |
33012 |
Elastic stop nut M10 |
| 16 |
732620001 |
CYLINDER PIN - Call your local BRP dealership |
| 17 |
504151946 |
Adjusting screw |
| 18 |
503189148 |
Hardened Washer |
| 19 |
504151945 |
SPRING - Call your local BRP dealership |
| 20 |
503125900 |
HARD WASHER - Call your local BRP dealership |
| 21 |
504151954 |
O-RING - Call your local BRP dealership |
| 22 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
| 23 |
504151940 |
Chain tensioner |
| 24 |
504080200 |
SPACER - Call your local BRP dealership |
| 25 |
504080300 |
WASHER - Call your local BRP dealership |
| 26 |
405403000 |
NEEDLE BEARING - Call your local BRP dealership |
| 27 |
414531300 |
ROLLER - Call your local BRP dealership |
| 28 |
732601144 |
SCREW - Call your local BRP dealership |
| 29 |
293800005 |
Loctite 271, 10ml |
| 30 |
293200158 |
Oil Seal This part replaces 415049300. |
| 31 |
507031500 |
SPACER - Call your local BRP dealership |
| 32 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 33 |
414876700 |
O-RING - Call your local BRP dealership |
| 34 |
293350115 |
Ball Bearing This part replaces 504152006. |
| 35 |
504147200 |
SHIM - Call your local BRP dealership |
| 36 |
504085400 |
Spriocket Z23 |
| 37 |
250000012 |
HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership |
| 38 |
41003 |
Pin |
| 39 |
504151857 |
Chain 13/74 |
| 40 |
504096800 |
SLIDING GEAR, 56 TEETH - Call your local BRP dealership |
| 41 |
415064300 |
CIRCLIP, INTERIOR - Call your local BRP dealership |
| 42 |
504094300 |
WASHER - Call your local BRP dealership |
| 43 |
415046400 |
O-ring |
| 44 |
504151845 |
COVER - Call your local BRP dealership |
| 45 |
414773200 |
O-RING - Call your local BRP dealership |
| 46 |
40196 |
Hex. screw M10 x 50 |
| 47 |
20068 |
Lock washer D10 |
| 48 |
40340 |
Socket head screw M6 x 30 |
| 49 |
504151750 |
FILLER CAP ASSY - Call your local BRP dealership |
| 50 |
414969400 |
O-RING - Call your local BRP dealership |
| 51 |
414575600 |
Hair Pin |
| 52 |
504151921 |
Plug 1/8-27 |
| 53 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 54 |
504152036 |
SLIDER CHAIN - Call your local BRP dealership |
| 55 |
504097700 |
Coupling |
| 56 |
504153178 |
Spring Release This part replaces 504096600. |
| 57 |
504151964 |
CAP - Call your local BRP dealership |
| 58 |
504076300 |
RETAINING RING - Call your local BRP dealership |
| 59 |
504152005 |
Ball bearing |
| 61 |
504083100 |
Reverse shaft |
| 62 |
250400010 |
Pin |
| 63 |
504077300 |
Spacer |
| 64 |
504078700 |
Ring |
| 66 |
414773100 |
NEEDLE BEARING - Call your local BRP dealership |
| 67 |
504082900 |
Washer |
| 68 |
504087700 |
TAB LOCK - Call your local BRP dealership |
| 69 |
504075800 |
Fork |
| 70 |
504151806 |
Fork axle |
| 71 |
414772500 |
SPRING PIN - Call your local BRP dealership |
| 72 |
504151814 |
TIE ROD - Call your local BRP dealership |
| 73 |
414773400 |
RH BALL-JOINT - Call your local BRP dealership |
| 74 |
33015 |
L.H. Nut M6 |
| 75 |
40052 |
Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 76 |
414773500 |
LH BALL-JOINT - Call your local BRP dealership |
| 77 |
33002 |
Nut M6 |
| 78 |
40030 |
Hex. screw M6 x 20 |
| 79 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 81 |
414805000 |
NEEDLE BEARING - Call your local BRP dealership |
| 82 |
570048600 |
Alignement Rod |
| 83 |
207089044 |
Hex. Screw M8 x 90 This part replaces 40090. |
| 84 |
504151823 |
SUPPORT, REVERSE - Call your local BRP dealership |
| 85 |
504151818 |
BUSHING - Call your local BRP dealership |
| 86 |
570064600 |
Grip |
| 87 |
504151810 |
HANDLE - Call your local BRP dealership |
| 88 |
371800800 |
COTTER PIN - Call your local BRP dealership |
| 89 |
503189264 |
WASHER - Call your local BRP dealership |
| 90 |
293800005 |
Loctite 271, 10ml |
| 91 |
413803300 |
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 93 |
504084400 |
Sprocket Z44 |
| 94 |
414772600 |
NEEDLE BEARING - Call your local BRP dealership |
| 95 |
504076800 |
DRIVE PIN - Call your local BRP dealership |
| 96 |
414772700 |
SPRING - Call your local BRP dealership |
| 97 |
504076100 |
RETAINER RING - Call your local BRP dealership |
| 98 |
207152044 |
Screw |
