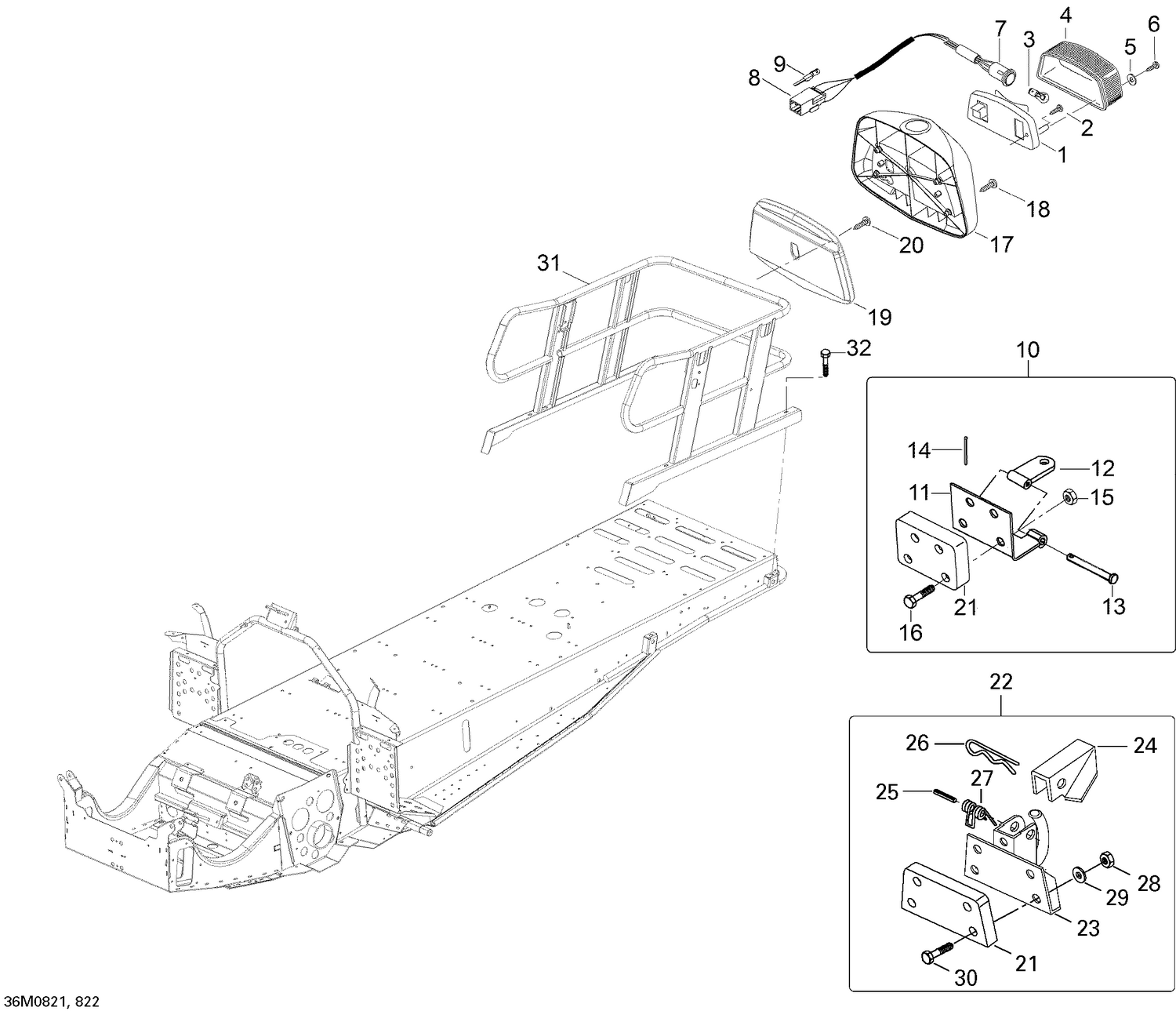

| Ref | Part Number | Description |
|---|
| 1 |
515175397 |
LAMP HOUSING - Call your local BRP dealership |
| 2 |
M40207 |
Screw 4.8 X 45 |
| 3 |
520000758 |
Bulb This part replaces 410504100. |
| 4 |
414513700 |
Lens |
| 5 |
414516400 |
Washer - Call your local BRP dealership |
| 6 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 7 |
515175852 |
Adapter |
| 8 |
Not |
Available As Spare Part - Connector Housing |
| 9 |
605642629 |
Connector AMP 926882-3 - Call your local BRP dealership This part replaces M42614. |
| 10 |
Not |
Available As Spare Part - Hitch Ass'y |
| 11 |
5344151 |
Fitting Plate This part replaces M5344151. |
| 12 |
548745 |
TONGUE WELD - Call your local BRP dealership This part replaces M548745. |
| 13 |
560309200 |
PIN-RETAINER - Call your local BRP dealership |
| 14 |
41031 |
Cotter Pin This part replaces M41031. |
| 15 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 16 |
207085044 |
Hex. Screw M8 X 50 |
| 17 |
605251392 |
MOLD TAIL LAMP - Call your local BRP dealership |
| 18 |
M40206 |
Screw 4.8 X 25 |
| 19 |
605251963 |
BASE - Call your local BRP dealership |
| 20 |
M40322 |
Screw |
| 21 |
605351510 |
SPACER - Call your local BRP dealership |
| 31 |
605156016 |
LUGGAGE RACK - Call your local BRP dealership This part replaces 605155241. |
