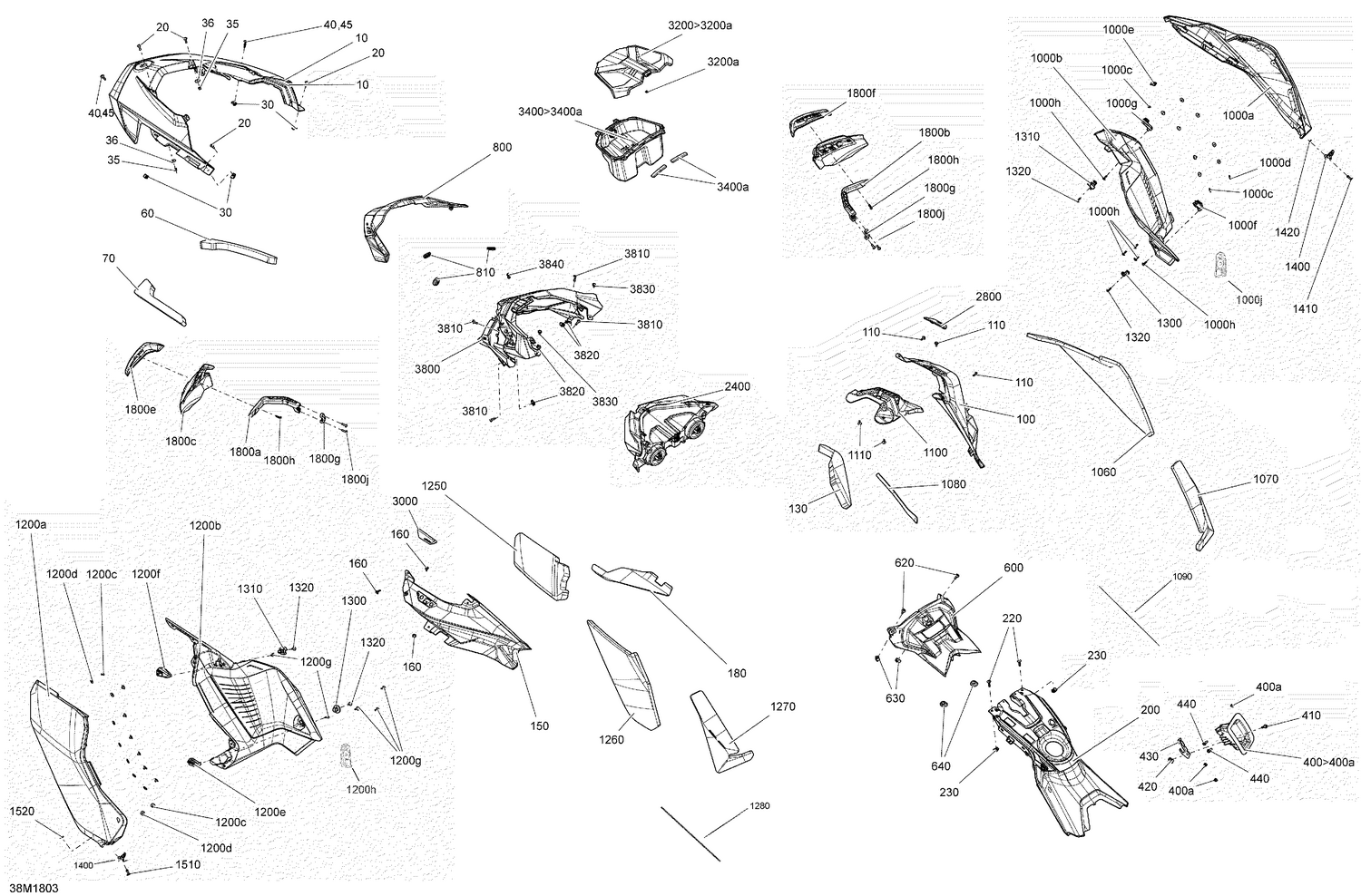

| Ref | Part Number | Description |
|---|
| 20 |
250000528 |
Torx Screw M5 X 20 |
| 30 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 35 |
233251494 |
Elastic Flange Nut M5 |
| 36 |
250200040 |
Flat Washer |
| 40 |
250000587 |
Torx Screw M5 X 26 |
| 45 |
250200166 |
Washer |
| 60 |
517305763 |
RH Front Hood Foam |
| 70 |
517305764 |
LH Front Hood Foam |
| 110 |
250000725 |
Screw M4 X 16 |
| 130 |
517306001 |
RH Hood Foam |
| 160 |
250000725 |
Screw M4 X 16 |
| 180 |
517306002 |
LH Hood Foam |
| 190 |
513033813 |
Gasket |
| 200 |
517306318 |
Rear Console |
| 220 |
250000587 |
Torx Screw M5 X 26 |
| 230 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 240 |
517304518 |
Console Nut |
| 600 |
517306117 |
Indicator Support |
| 620 |
250000587 |
Torx Screw M5 X 26 |
| 630 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 800 |
517305875 |
Deep Black, Wind Deflector |
| 800 |
517306432 |
Wind Deflector |
| 810 |
517303756 |
Grommet |
| 1000c |
293150104 |
Pop Rivet 3/16" |
| 1000d |
517124300 |
Washer |
| 1000e |
517305109 |
Rivet Plate |
| 1000f |
517305773 |
RH Rear Latch |
| 1000g |
517305979 |
RH Front Latch |
| 1000h |
250000725 |
Screw M4 X 16 |
| 1060 |
517305767 |
RH Central Panel Foam |
| 1070 |
517306116 |
RH Rear Panel Foam |
| 1080 |
517306262 |
Rubber Sheet |
| 1090 |
517306480 |
RH Rear Panel Foam |
| 1100 |
517305862 |
Deep Black, RH Grille |
| 1110 |
250000725 |
Screw M4 X 16 |
| 1200b |
517305865 |
Black - Panel Trim LH |
| 1200c |
293150104 |
Pop Rivet 3/16" |
| 1200d |
517124300 |
Washer |
| 1200e |
517305774 |
LH Rear Latch |
| 1200f |
517305980 |
LH Front Latch |
| 1200g |
250000725 |
Screw M4 X 16 |
| 1200h |
517306312 |
LH Hook |
| 1250 |
517305769 |
LH Front Panel Foam |
| 1260 |
517305770 |
LH Central Panel Foam |
| 1270 |
517305766 |
FOAM - Call your local BRP dealership |
| 1280 |
517306479 |
LH Rear Panel Foam |
| 1300 |
517305985 |
Rear Stud |
| 1310 |
517305988 |
Front Stud |
| 1320 |
250000725 |
Screw M4 X 16 |
| 1400 |
517306309 |
RH Lower Latch |
| 1400 |
517306310 |
LH Lower Latch |
| 1410 |
293150100 |
Pop Rivet 3/16" |
| 1420 |
517124300 |
Washer |
| 1510 |
293150100 |
Pop Rivet 3/16" |
| 1520 |
517124300 |
Washer |
| 1800a |
517305290 |
Deep Black, LH Arm |
| 1800b |
517305293 |
Deep Black, RH Arm |
| 1800c |
517305291 |
LH Deflector, Smoked 60% |
| 1800d |
517305294 |
RH Deflector, Smoked 60% |
| 1800e |
517305589 |
Sunburst Yellow, LH Cap, SKI-DOO |
| 1800e |
517305601 |
Deep Black, LH Cap, SKI-DOO |
| 1800f |
517305588 |
Sunburst Yellow, RH Cap, SKI-DOO |
| 1800f |
517305602 |
Deep Black, RH Cap SKI-DOO |
| 1800g |
517305296 |
Clamp |
| 1800h |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 1800j |
250000724 |
Torx Screw M5 X 20 |
| 2400 |
517305752 |
Headlamp |
| 2800 |
517306049 |
RH Hood Plate |
| 3000 |
517306050 |
LH Hood Plate |
| 3200a |
732610072 |
Push Nut |
| 3400a |
517305157 |
Seal Joint |
| 3810 |
250000528 |
Torx Screw M5 X 20 |
| 3820 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 3830 |
250000725 |
Screw M4 X 16 |
