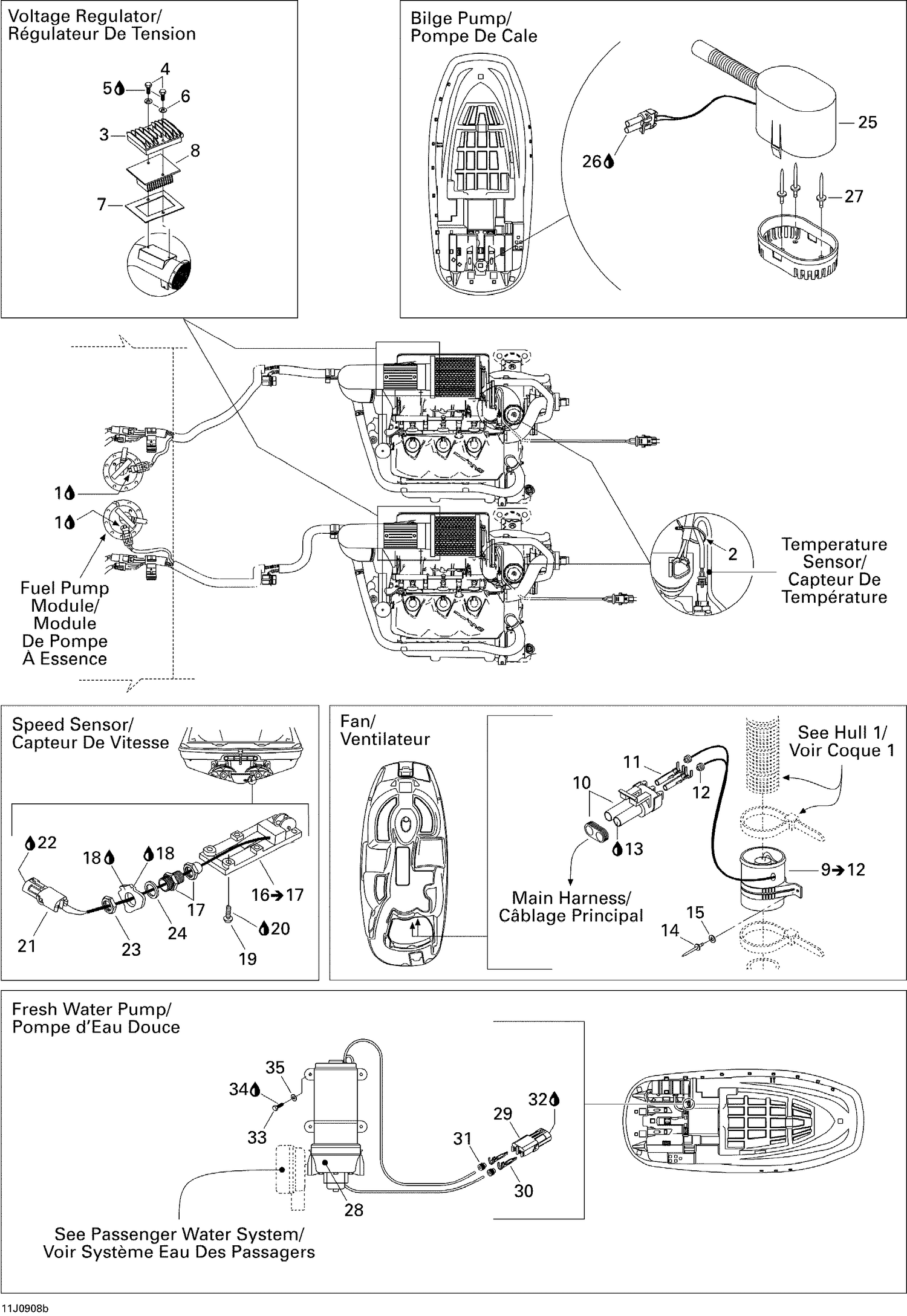

| Ref | Part Number | Description |
|---|
| 1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 2 |
293750002 |
Tie Wrap 142 mm |
| 3 |
710001103 |
Voltage Regulator |
| 4 |
204100226 |
HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership |
| 5 |
293800060 |
Loctite 243, 10 ml |
| 6 |
211200025 |
Lock Washer 1/4” |
| 7 |
204471293 |
SEAL - Call your local BRP dealership |
| 8 |
204471296 |
RECTIFIER HEAT SINK - Call your local BRP dealership |
| 10 |
278000220 |
Male Connector, 2 Circuits |
| 11 |
278000223 |
Female Terminal |
| 12 |
278000218 |
Wire Seal |
| 13 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 14 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 15 |
234052600 |
Flat Washer 5 mm, Stainless |
| 17 |
293710031 |
ELECTRIC CONNECTION - Call your local BRP dealership |
| 18 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 19 |
208551060 |
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 20 |
293800060 |
Loctite 243, 10 ml |
| 21 |
278000281 |
Female Terminal Housing, 3 Circuits |
| 22 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 23 |
293710032 |
LOCKING NUT - Call your local BRP dealership |
| 24 |
278000416 |
SEAL WASHER - Call your local BRP dealership |
| 25 |
204471431 |
Bilge Pump |
| 26 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 27 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 28 |
204470524 |
FRESH WATER PUMP R4305-144K - Call your local BRP dealership |
| 29 |
278000217 |
Female Housing, 2 Circuits |
| 30 |
278000222 |
Male Terminal |
| 31 |
278000218 |
Wire Seal |
| 32 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 33 |
207152060 |
Hex. Screw M5 X 20 |
| 34 |
293800060 |
Loctite 243, 10 ml |
