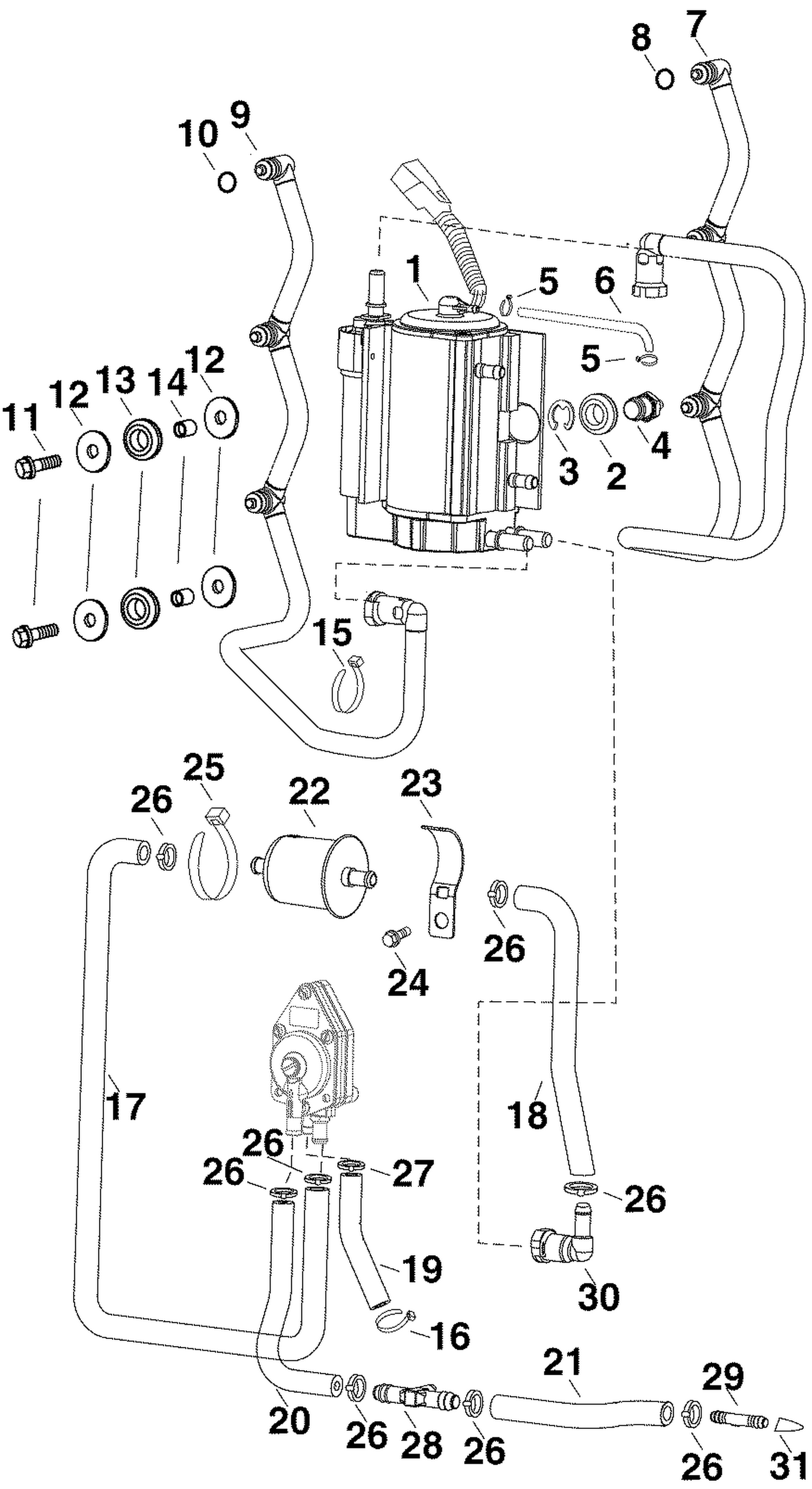

| Ref | Part Number | Description |
|---|
| 1 |
5005177 |
FUEL VAPOR SEPARATOR/ PUMP Assy |
| 3 |
0510487 |
RETAINING RING |
| 7 |
5005348 |
FUEL RAIL Assy, Supply |
| 9 |
5005347 |
FUEL RAIL Assy, Return |
| 14 |
0335328 |
SCREW, Connector |
| 15 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 16 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 17 |
0350792 |
HOSE, Fuel pump to fuel filter |
| 18 |
0348561 |
HOSE, Fuel filter to vapor separator |
| 20 |
0350998 |
HOSE, Oil tee to fuel pump |
| 21 |
0351226 |
HOSE, Fuel inlet to tee |
| 22 |
5007335 |
FILTER AY, Fuel This part replaces 5005266. |
| 23 |
0351009 |
CLAMP, Fuel filter to C/C |
| 24 |
0312455 |
BOLT,Throttle lever retainer |
| 28 |
0345701 |
FITTING, Fuel to Oil tee |
