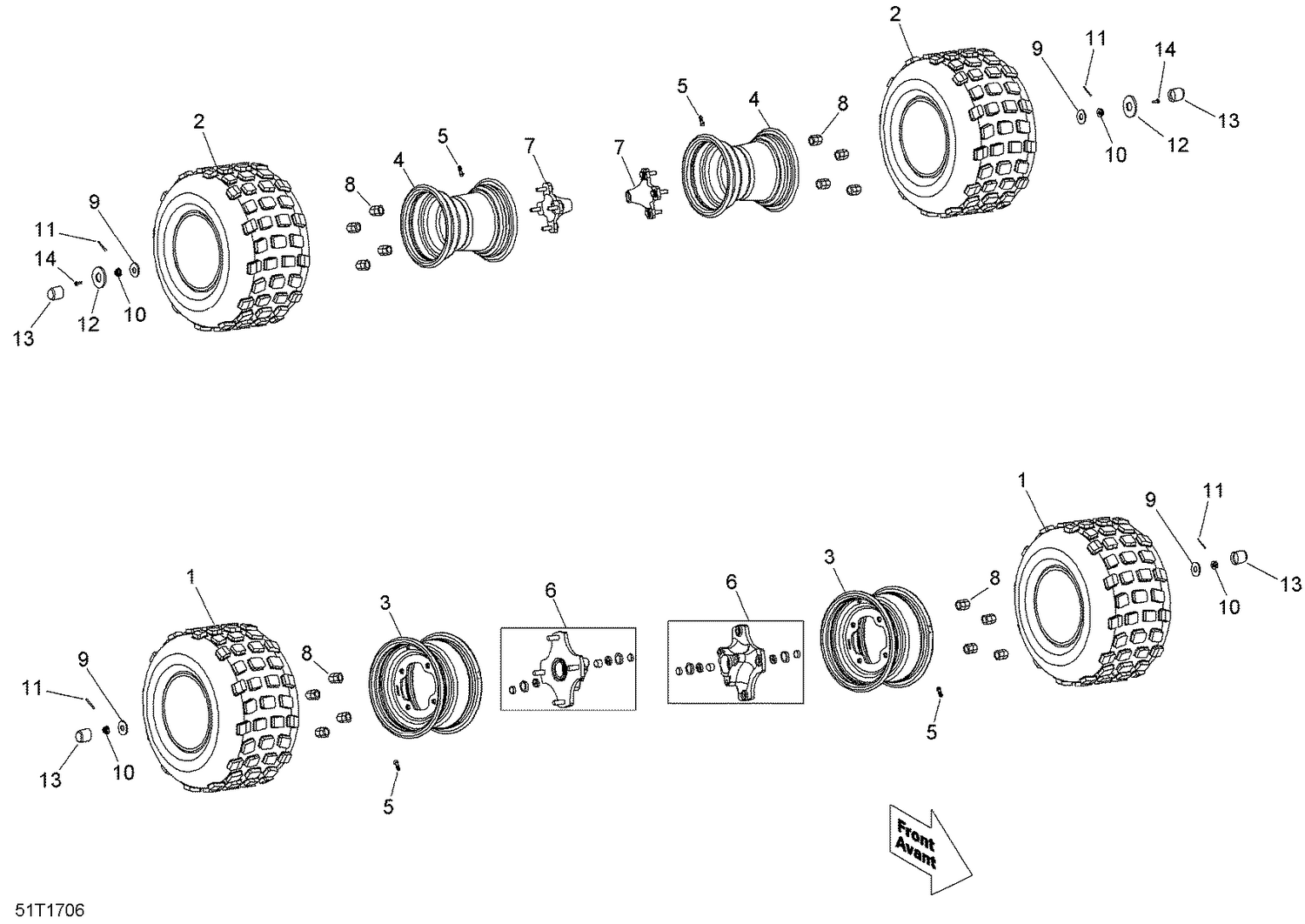

07- Wheels And Tires
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V42711DGF01HLL | Front Tire |
| 2 | V42712DGF01HLL | Rear Tire |
| 3 | V42708DGF00H | Front Rim |
| 4 | V42709DGF00H | Rear Rim |
| 5 | V42751MAA000LL | Rim Valve |
| 6 | V44650CEK010LL | Front Hub |
| 7 | V44630CEK010SLLL | Rear Wheel Axle Fixed Bracket |
| 8 | V9030210017LL | Auminium Nut M10 |
| 9 | V55002MAA010LL | Washer |
| 10 | V9405214000LL | Castle Nut M14 |
| 11 | V9420130032LL | Cotter Pin |
| 12 | V55002MEM010ZCLL | Rear Wheel Washer This part replaces V55002MEM010ZC. |
| 13 | V53456CEK030LL | Rubber Cap |
