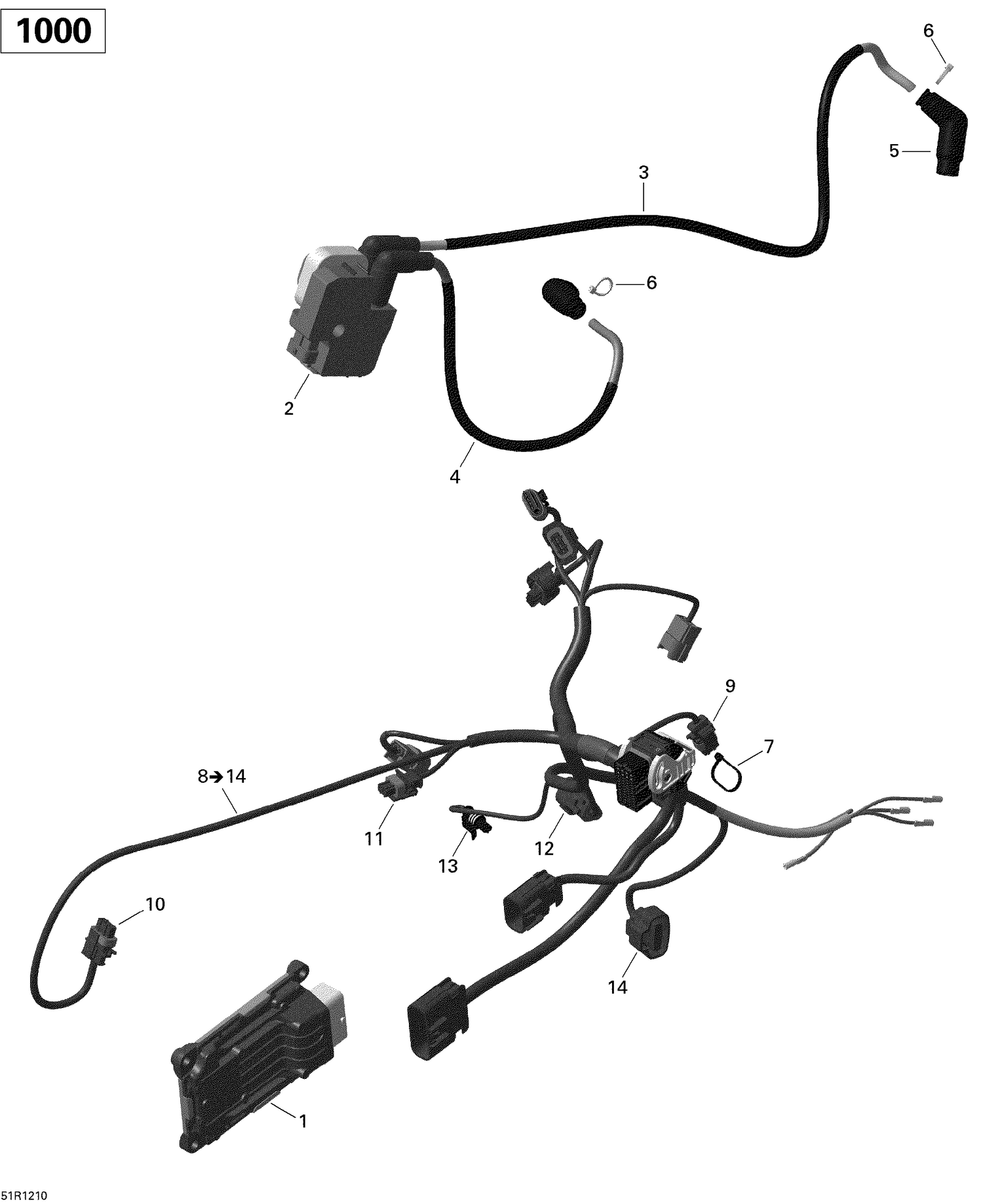

10- Engine Harness And Electronic Module
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 278001546 | Ignition Coil |
| 3 | 420665333 | Spark Plug Cable, 790 mm, Rear This part replaces 420665330. |
| 4 | 420665333 | Spark Plug Cable, 790 mm, Rear This part replaces 420664300. |
| 5 | 420265248 | Spark Plug Connector |
| 6 | 420866710 | Tie Rap |
| 7 | 293750001 | Tie Wrap 94 mm |
| 9 | 278001005 | Male Housing, 2 Circuits |
| 10 | 278000997 | Male Housing, 3 Circuits |
| 11 | 278001005 | Male Housing, 2 Circuits |
| 12 | 278002378 | Male Housing This part replaces 409207000. |
| 13 | 278001012 | Male Housing, 1 Circuit |
