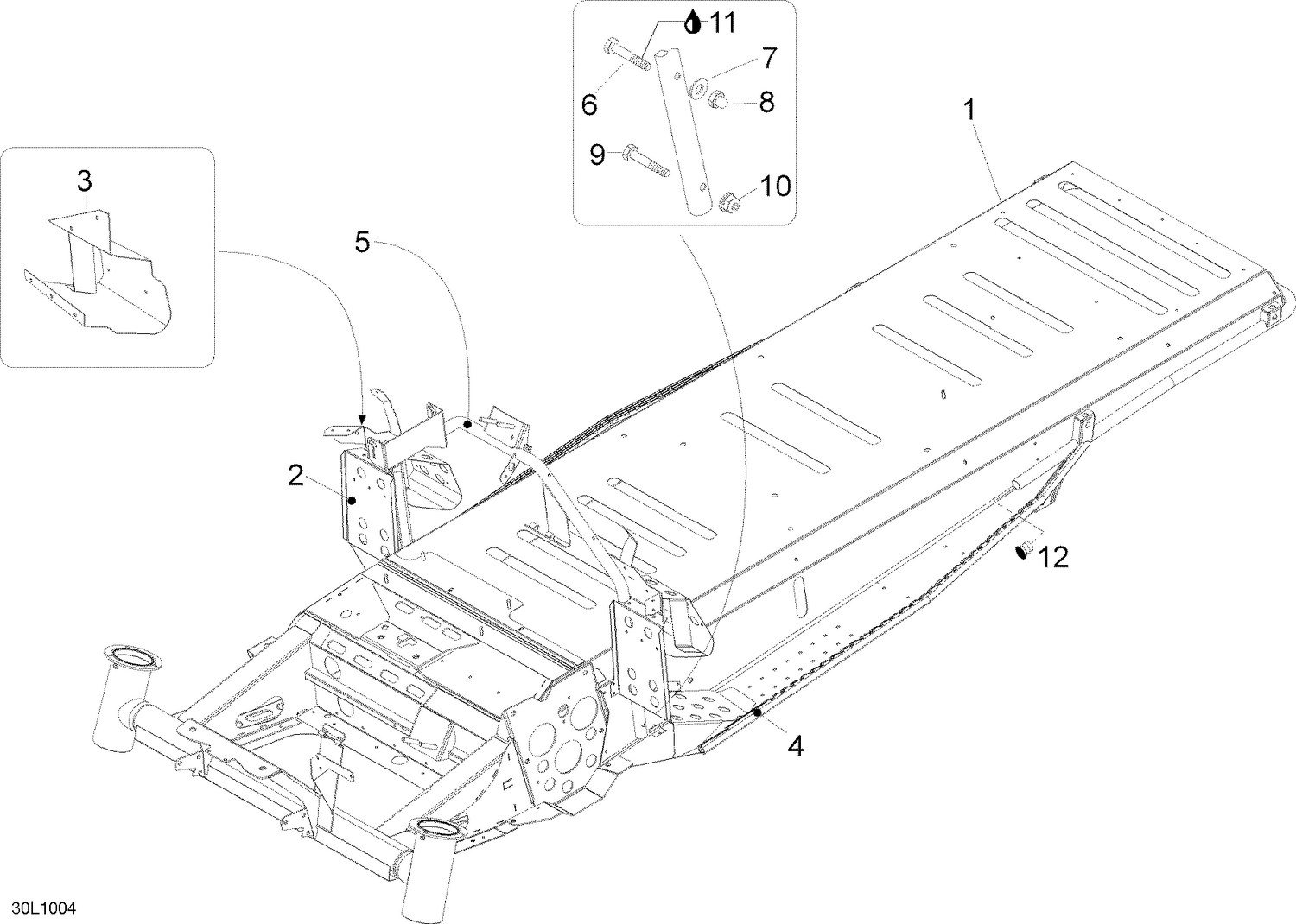

09- Frame (Army)
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 605153502 | R.H. Footrest |
| 2 | 605153503 | L.H. Footrest |
| 3 | 605253504 | RH TOE REST - Call your local BRP dealership |
| 3 | 605253505 | LH TOE REST - Call your local BRP dealership |
| 4 | 605253506 | RH REINFORCEMENT - Call your local BRP dealership |
| 4 | 605253507 | LH REINFORCEMENT - Call your local BRP dealership |
| 5 | 605153465 | Bar Support |
| 6 | 40003 | Hex. screw M6 x 35 |
| 7 | 20003 | Washer A6,4 |
| 8 | 33051 | Nut M6 |
| 9 | 40002 | Hex. screw M6 x 40 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 293800060 | Loctite 243, 10 ml |
| 12 | 28210 | Plug |
