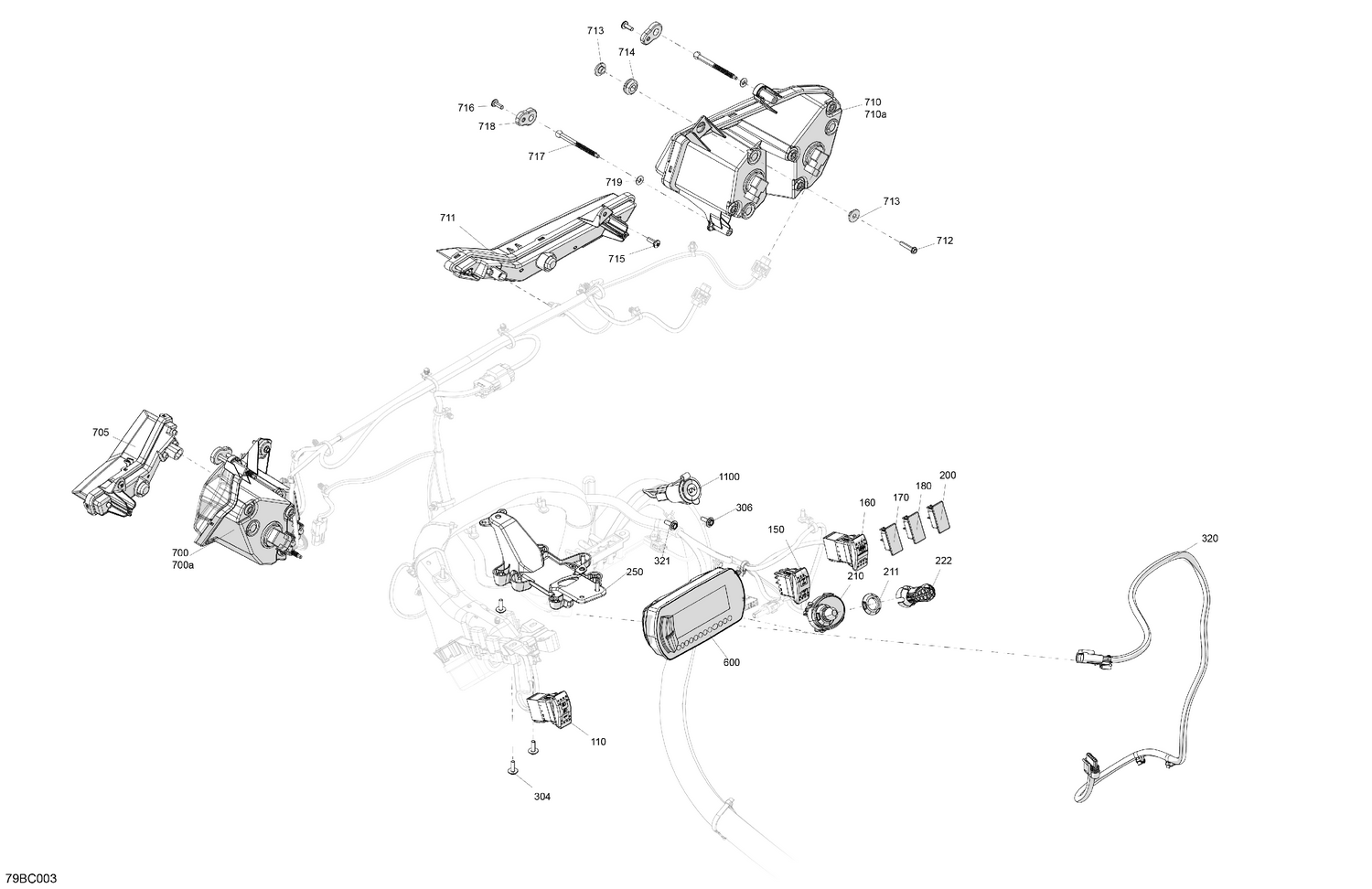

08- Electric - Front Section
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 710004492 | Light Switch |
| 150 | 710005489 | Switch 2X4 |
| 160 | 710005470 | Differential Lock Switch |
| 170 | 710007173 | Plug Carling |
| 180 | 710007173 | Plug Carling |
| 200 | 710007173 | Plug Carling |
| 210 | 515179305 | Terminal DESS One Wire |
| 211 | 278004274 | Specialized Nut |
| 250 | 710005672 | Housing Support |
| 304 | 250000959 | Screw PT Type K-50 X 16 |
| 306 | 250000959 | Screw PT Type K-50 X 16 |
| 320 | 710005929 | Trottle Pedal Harness |
| 321 | 250000959 | Screw PT Type K-50 X 16 |
| 600 | 710007407 | Multifunction Compact Gauge |
| 700a | 715900141 | Bulb 12V 55W |
| 705 | 710008973 | Deep Black, LH Front Headlight Trim |
| 710a | 715900141 | Bulb 12V 55W |
| 711 | 710008974 | Deep Black, RH Front Headlight Trim |
| 712 | 250000724 | Torx Screw M5 X 20 |
| 713 | 710004749 | Shoulder Bushing |
| 714 | 709000582 | Grommet |
| 715 | 250000720 | Torx Screw K50 X 16 |
| 716 | 207551056 | Hex. Flange Screw M5x10 |
| 717 | 710005837 | Ajustment Screw |
| 718 | 293900157 | Ball Socket |
| 719 | 293300192 | O-Ring |
