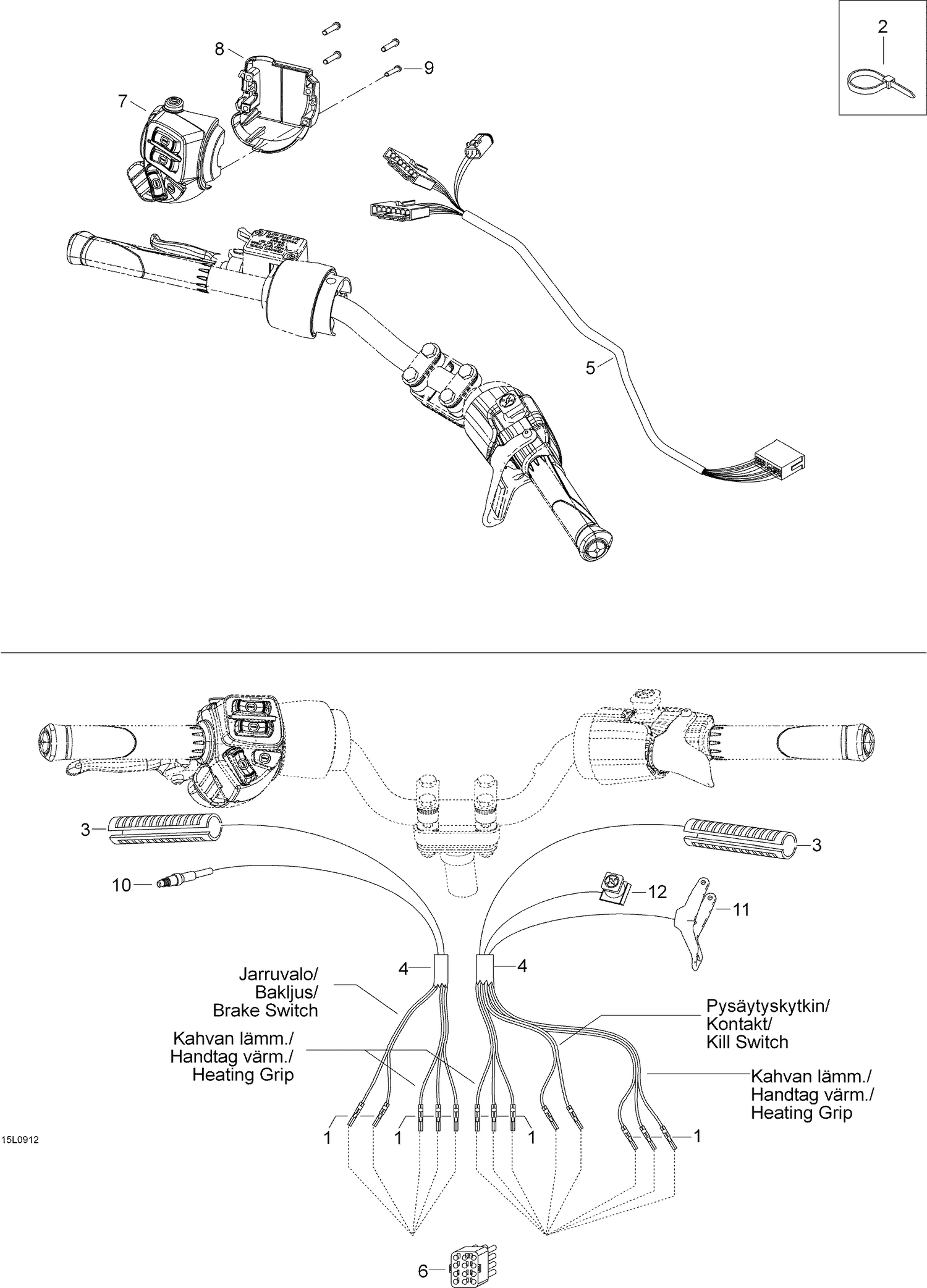

| Ref | Part Number | Description |
|---|
| 1 |
605642628 |
CONNECTOR - Call your local BRP dealership |
| 2 |
293750008 |
Tie-Rap 368 mm This part replaces 27100. |
| 2 |
414115200 |
Tie-Rap 180 mm This part replaces 27026. |
| 3 |
515175664 |
Heater grip element |
| 4 |
39023 |
Plastic Tubing d=6, musta - Call your local BRP dealership |
| 5 |
605354616 |
STEERING HARNESS ASS'Y - Call your local BRP dealership |
| 6 |
42617 |
Male terminal housing (15 circuits) |
| 7 |
605356204 |
SWITCH HOUSING LH - Call your local BRP dealership This part replaces 605354729. |
| 8 |
515175926 |
Cover |
| 9 |
40903 |
Plastofast-screw 3.5 x 25 |
| 10 |
507032366 |
Microswitch ass'y |
| 11 |
512059481 |
Throttle Handle This part replaces 512059107. |
