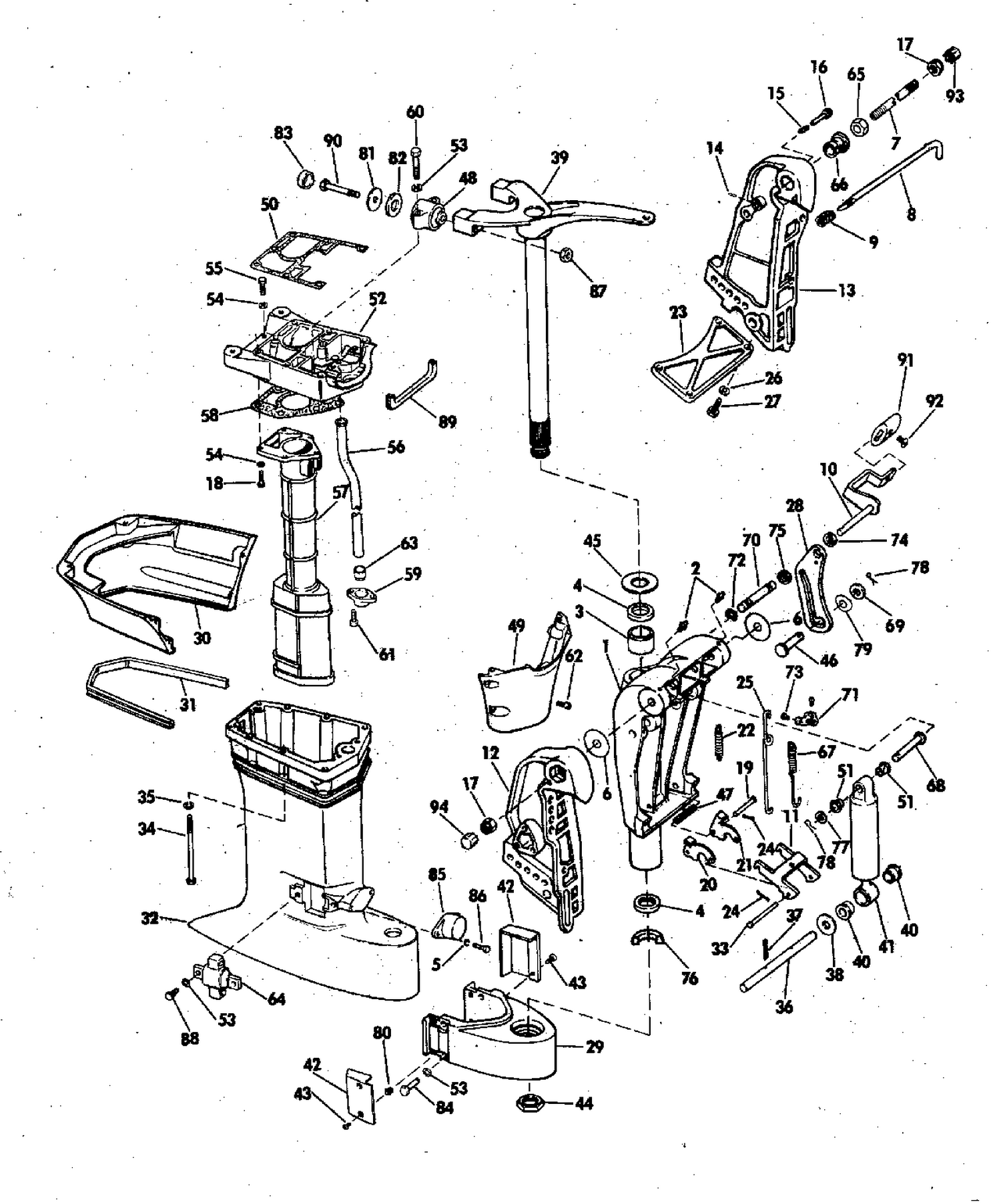

| Ref | Part Number | Description |
|---|
| 1 |
0385668 |
SWIVEL BRACKET |
| 3 |
0317783 |
BUSHING |
| 4 |
0318158 |
SEAL |
| 6 |
0317782 |
THRUST WASHER |
| 7 |
0317769 |
TILT TUBE |
| 8 |
0385512 |
THRUST ROD ASSEMBLY |
| 9 |
0317781 |
SPRING, Thrust rod |
| 10 |
0385703 |
SHAFT & LEVER ASSEMBLY |
| 11 |
0318222 |
LOCKING LEVER |
| 12 |
0319788 |
STERN BRACKET, Starboard This part replaces 0317737. |
| 13 |
0386005 |
STERN BRACKET & LOCK PIN, Port |
| 16 |
0318906 |
LOCK PIN |
| 17 |
0323599 |
LOCKNUT This part replaces 0316828. |
| 19 |
0315023 |
PIN, Link |
| 20 |
0318221 |
LINK, Reverse lock starboard |
| 21 |
0318220 |
LINK, Reverse lock port |
| 22 |
0318289 |
SPRING, Reverse lock |
| 23 |
0317784 |
PLATE, Sterm bracket |
| 24 |
0302858 |
GOUPILLE, fendue - Tringlerie de verrouillage de marche arrière |
| 25 |
0319979 |
ROD, Rev lock release This part replaces 0318219. |
| 26 |
0307708 |
RONDELLE GROWER |
| 27 |
0305282 |
BOLT, Bowl & suction piece This part replaces 0301218. |
| 28 |
0385691 |
TILT LOCK |
| 29 |
0317833 |
MOUNT BRACKET ASSY |
| 30 |
0340777 |
COVER, Housing, rear This part replaces 0206006. |
| 31 |
0314024 |
SEAL HOUSING, Outer |
| 32 |
0318181 |
EXHAUST HOUSING, Outer |
| 33 |
0315022 |
PIN, Link to locking lever |
| 34 |
0133022 |
SCREW |
| 35 |
0120255 |
LOCKWASHER |
| 36 |
0315028 |
PIVOT PIN, Shjock absorber |
| 37 |
0302804 |
COTTER IN |
| 38 |
0307764 |
WASHER, Inner |
| 39 |
0385552 |
STEERING ARM ASSY, Long |
| 40 |
0315222 |
BUSHING SHOCK ABSORB |
| 41 |
0385532 |
SHOCK ABSORBER |
| 42 |
0313784 |
COVER, Mount bracker |
| 43 |
0314245 |
SCREW |
| 44 |
0318159 |
NUT, Mount bracket |
| 45 |
0317788 |
THRUST WASHER, Pivot shaft |
| 46 |
0318280 |
PIN, Tilt lock |
| 47 |
0316208 |
SPACER, Line reverse lock |
| 48 |
0384896 |
RUBBER MOUNT ASSEBMLY |
| 49 |
0206008 |
COVER, Exh housing, front |
| 50 |
0313763 |
GASKET, Adapter |
| 51 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 52 |
0318287 |
ADAPTER, Exhaust housing |
| 55 |
0329894 |
SCREW This part replaces 0302510. |
| 56 |
0317235 |
WATER TUBE, Inlet |
| 57 |
0313402 |
EXHAUST HOUSING, Inner |
| 58 |
0317293 |
GASKET, Housing to adapter |
| 59 |
0305181 |
COUPLING, Flange |
| 60 |
0306423 |
BOLT |
| 61 |
0306446 |
SCREW, Coupling to adapter |
| 62 |
0305745 |
SCR., Lwr. mtr. cover frt. and rear |
| 63 |
0305145 |
GROMMET |
| 64 |
0384897 |
RUBBER MOUNT |
| 65 |
0317793 |
SPACER |
| 66 |
0319787 |
BUSHING This part replaces 0317789. |
| 67 |
0318290 |
SPRING, Reverse lock |
| 69 |
0316403 |
SPRING WASHER |
| 70 |
0318257 |
BUSHING, Tilt lock shaft |
| 71 |
0318256 |
BELLCRANK, Reverse lock |
| 72 |
0318291 |
RET.RING, Tilt lock bushing |
| 73 |
0319108 |
SCREW BELCRANK |
| 74 |
0204406 |
WASHER, Tilt lock lever |
| 76 |
0317792 |
KEEPER, Pivot shaft |
| 77 |
0127386 |
RONDELLE This part replaces 0303913. |
| 79 |
0303775 |
WAHSER, Lever to hsg |
| 80 |
0313785 |
GROMMET |
| 81 |
0321232 |
RETAINER WASHER This part replaces 0313546. |
| 82 |
0313580 |
WASHER |
| 83 |
0313581 |
BUMBER, Mount screw |
| 84 |
0306503 |
SCREW, Short |
| 85 |
0382388 |
THRUST MOUNT ASSEMBLY |
| 86 |
0329894 |
SCREW This part replaces 0302510. |
| 87 |
0314898 |
L'NUT, Stud, alt frt |
| 88 |
0552940 |
SCREW, Stern bracket This part replaces 0313699. |
| 89 |
0314059 |
SEAL, Adapter to cover |
| 90 |
0317919 |
SCREW, Rubber mount upper to bracket |
| 91 |
0329012 |
KNOB Tilt & reverse lock handle This part replaces 0318157. |
| 92 |
0318238 |
SCREW |
