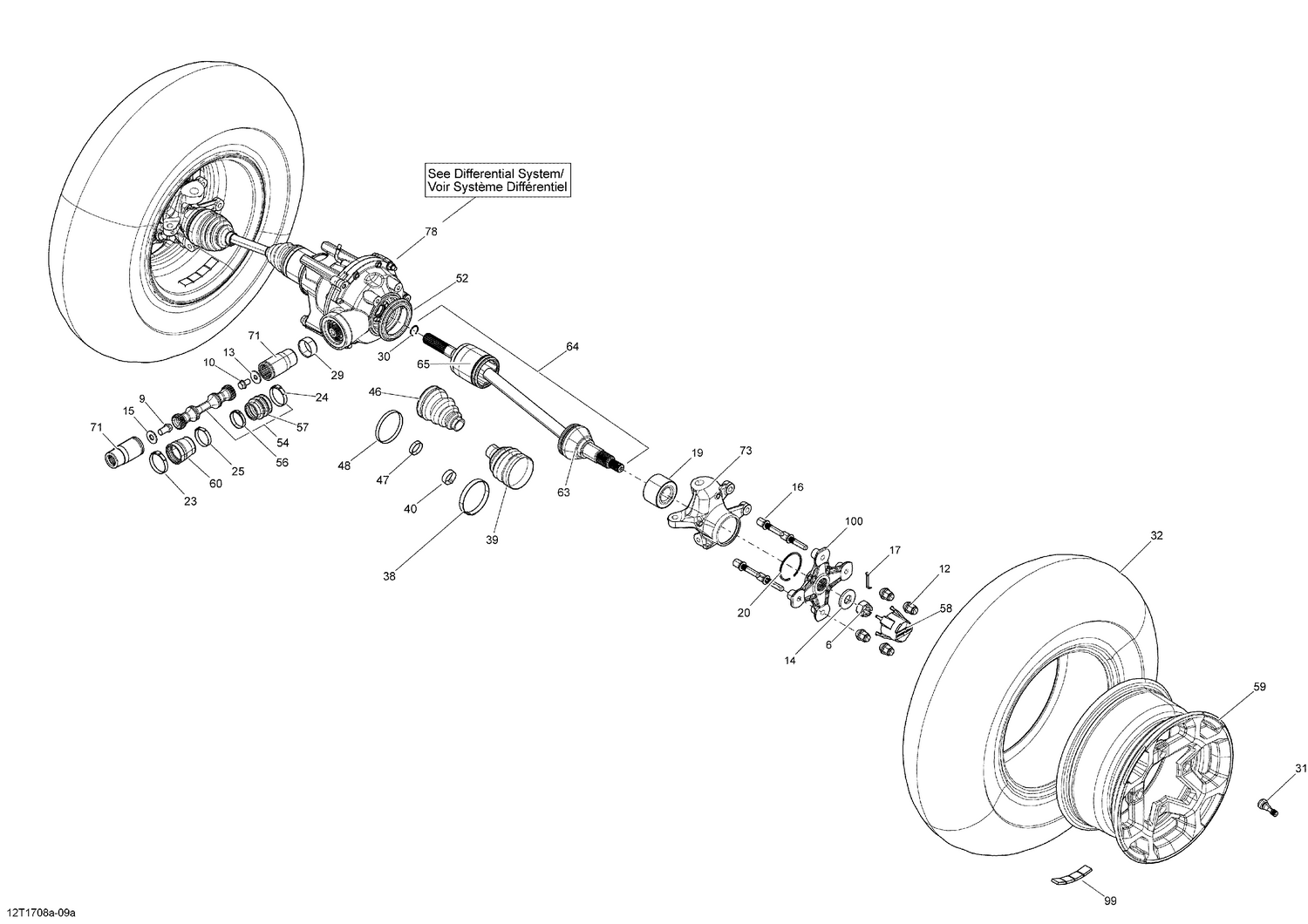

07- Drive System, Front
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 9 | 250001042 | Hex Flange Screw M12 X 20 This part replaces 250000540. |
| 10 | 250001044 | Hex. Flange Screw M10 X 16 S.GRIP This part replaces 250000615. |
| 13 | 250200014 | Flat Washer M10 |
| 14 | 250200171 | Conical Spring Washer M18 This part replaces 250200049. |
| 15 | 250200102 | Flat Washer M12 |
| 17 | 250400036 | Cotter Pin |
| 19 | 293350150 | Ball Bearing This part replaces 293350040. |
| 20 | 293370019 | Circlip |
| 23 | 293650138 | Oetiker Gear Clamp 44.0MM |
| 24 | 293650138 | Oetiker Gear Clamp 44.0MM |
| 25 | 293650199 | Oetiker Gear Clamp |
| 29 | 705400036 | Wear Ring |
| 30 | 705401349 | Circlip Joint |
| 31 | 705400193 | Rim Valve With Cap |
| 32 | 705401331 | Tire |
| 38 | 715900282 | Oetiker Clamp |
| 39 | 705401345 | Boot Kit, Wheel Side |
| 40 | 715900283 | Oetiker Clamp, Small |
| 46 | 705401346 | Boot Kit, Differential Side |
| 47 | 715900261 | Oetiker Clamp, Small |
| 48 | 715900284 | Oetiker Clamp, Large |
| 52 | 705400780 | Wear Sleeve |
| 54 | 705400913 | Propeller Shaft |
| 56 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 57 | 715900118 | Rubber Boot |
| 58 | 705400928 | Wheel Cap |
| 60 | 705401093 | Rubber Boot |
| 63 | 705401344 | CV Joint |
| 64 | 705401115 | LH Front - Premium CV Axle |
| 64 | 705401116 | RH Front - Premium CV Axle |
| 65 | 705401348 | RH Plunging Joint |
| 65 | 705401350 | LH Plunging Joint |
| 71 | 703500678 | Front Bushing Shaft Kit |
| 73 | 705403307 | LH Knuckle This part replaces 705401290. |
| 73 | 705403308 | RH Knuckle This part replaces 705401291. |
| 78 | 703500908 | Front Differential This part replaces 705401511. |
