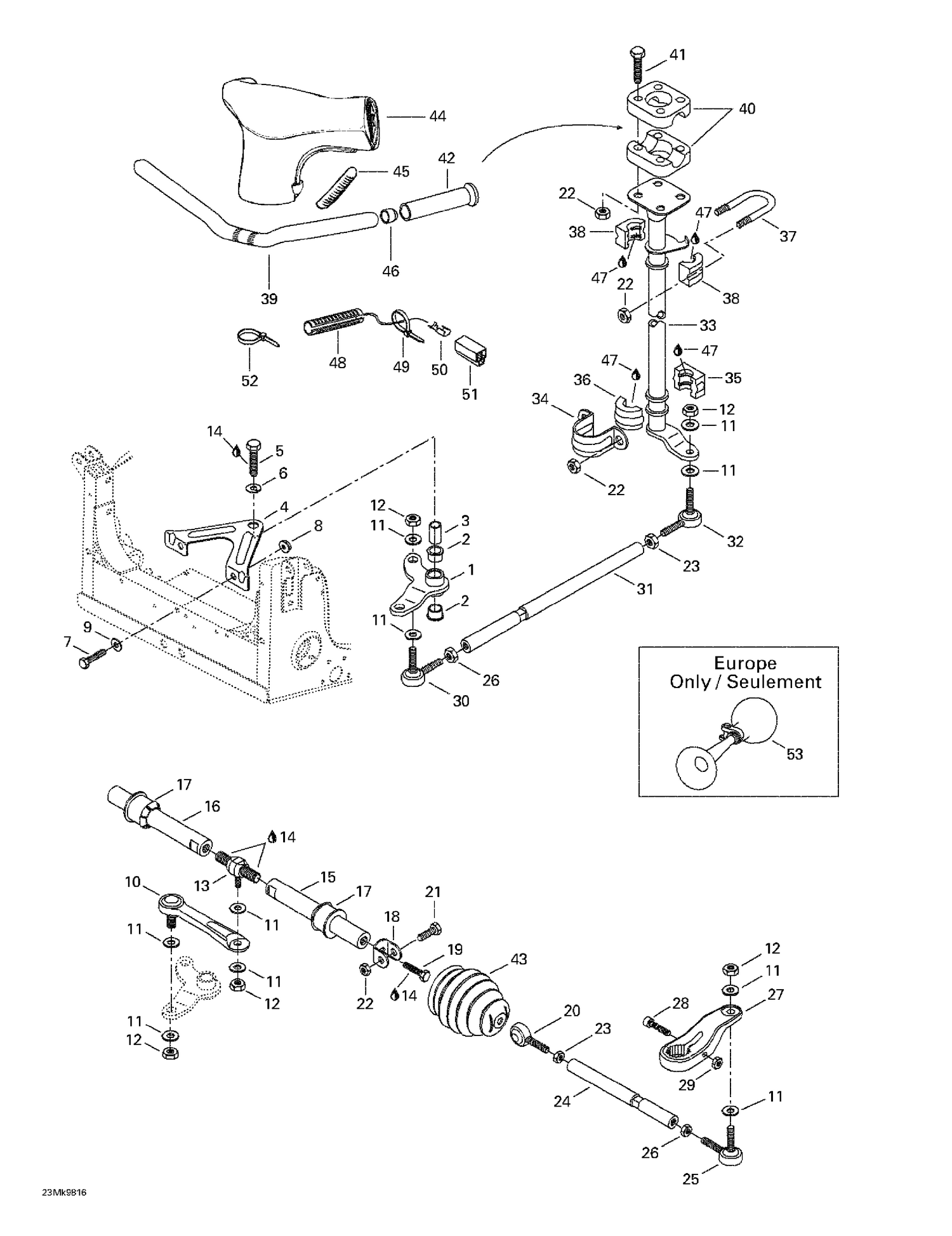

| Ref | Part Number | Description |
|---|
| 1 |
506129500 |
Pivot Arm |
| 2 |
415041100 |
CUSHION - Call your local BRP dealership |
| 3 |
506131500 |
Pivot |
| 4 |
506138400 |
PIVOT SUPPORT - Call your local BRP dealership |
| 5 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership This part replaces 222006065. |
| 6 |
Not |
Available As Spare Part - Lock Washer 10 mm |
| 7 |
Not |
Available As Spare Part - Hex. Screw M6 x 60 |
| 8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 9 |
224061121 |
Flat Washer |
| 10 |
415059800 |
Ball Stud Lever |
| 11 |
503175800 |
Washer |
| 12 |
232501416 |
Elastic Flange Nut M10 This part replaces 732610042. |
| 13 |
415053300 |
Ball Joint (Double) |
| 14 |
293800005 |
Loctite 271, 10 ml This part replaces 413707400. |
| 15 |
506129400 |
Sliding Bar (Short) |
| 16 |
506129402 |
Sliding Bar (Long) |
| 17 |
572108500 |
Cushion |
| 18 |
506138300 |
Bracket |
| 19 |
207102544 |
Hex. Screw M10 X 25 This part replaces 222002565. |
| 20 |
415048600 |
LH Ball Joint |
| 21 |
207084044 |
Hex. Screw M8 X 40 This part replaces 222084065. |
| 22 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 23 |
250100016 |
LH Threaded Hex. Jam Nut M10 This part replaces 732610011. |
| 24 |
506129600 |
Tie-Rod |
| 25 |
506151491 |
Ball Joint This part replaces 415012400. |
| 26 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 27 |
506138100 |
RH Steering Arm |
| 28 |
222983565 |
Allen Screw M8 x 35 |
| 29 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 30 |
506151492 |
RH BALL JOINT - Call your local BRP dealership This part replaces 414768000. |
| 31 |
506131200 |
Tie Rod |
| 32 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 414768100. |
| 33 |
506129700 |
Main Tube |
| 34 |
517126200 |
Retainer Support |
| 35 |
572064400 |
Bushing |
| 36 |
572064500 |
BUSHING - Call your local BRP dealership |
| 37 |
506060600 |
U-clamp |
| 38 |
572067100 |
HALF-BUSHING - Call your local BRP dealership |
| 39 |
506142000 |
Handlebar |
| 40 |
277000142 |
STEERING CLAMP - Call your local BRP dealership |
| 41 |
207085544 |
Hex. Screw M8 X 55 This part replaces 222085565. |
| 42 |
506151530 |
RH Grip 6-1/2" This part replaces 572100500. |
| 43 |
570054100 |
Tie-Rod Cap |
| 44 |
572079000 |
Steering Padding |
| 45 |
572106200 |
KEYWAY - Call your local BRP dealership |
| 46 |
572081900 |
HANDLEBAR END - Call your local BRP dealership |
| 47 |
413706100 |
LITHIUM GREASE, 400 GR - Call your local BRP dealership |
| 48 |
410113100 |
Heating Grip |
| 49 |
293750001 |
Tie Wrap 94 mm |
| 50 |
561503200 |
Female Terminal PACKARD |
| 51 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
| 52 |
414115200 |
Tie-Rap 180 mm |
| 506138200 |
Bras |
De Direction GA 506138200 |
| 506138200 |
LH |
Steering Arm 506138200 |
