Home / BRP / 2007 / Summit / Summit X, 2007 000CG7A00 000CG7B00 000CG7C00 000CG7D00 000CH7A00 000CH7B00 000CH7C00 000CH7D00 000CP7A00 000CP7B00 000CP7C00 000CP7D00 / 05- Drive System X

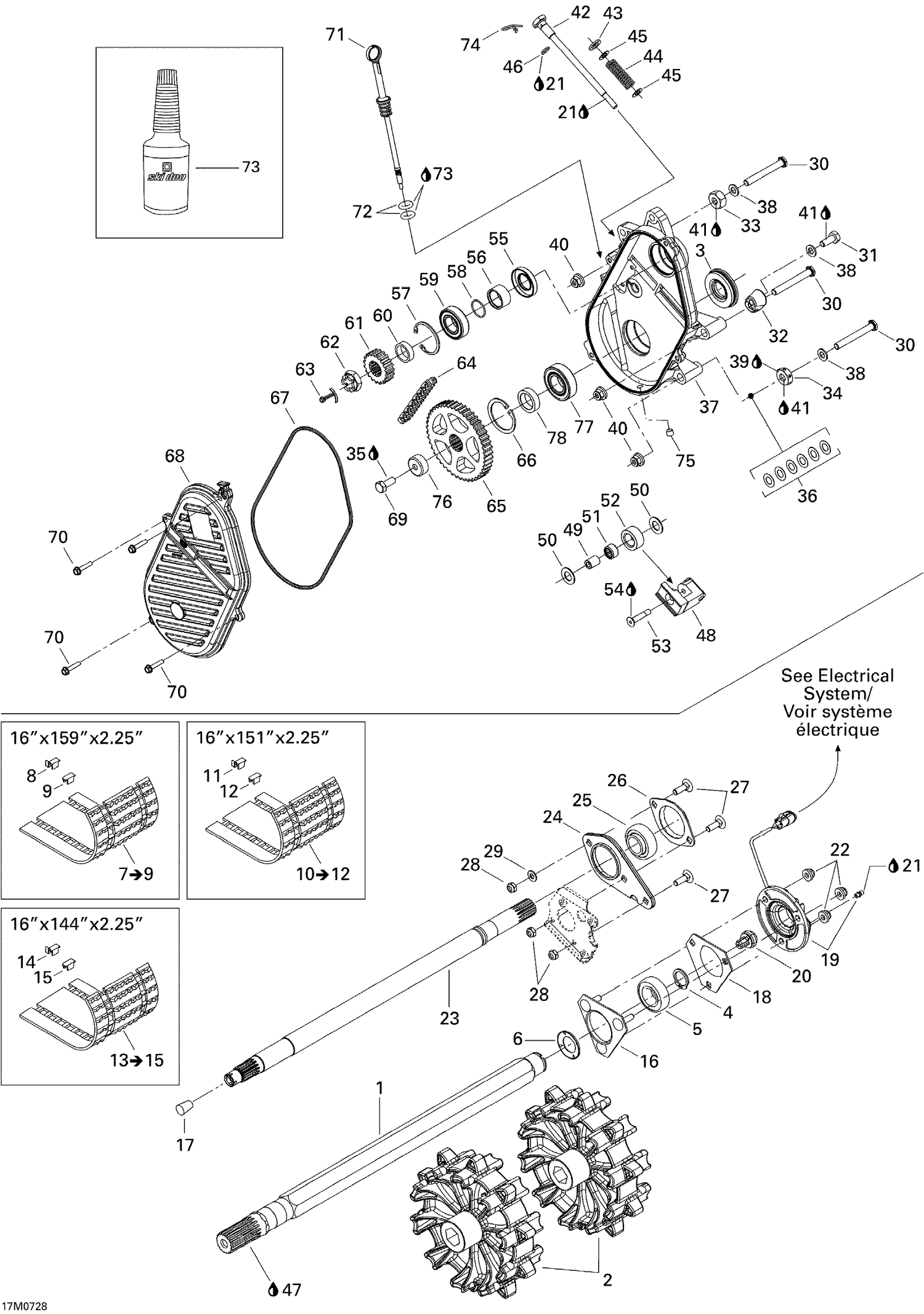

05- Drive System X

05- Drive System X

Parts (72)

RefPart NumberDescription
1 501027400 DRIVE AXLE - Call your local BRP dealership
2 504152503 DOUBLE SPROCKET, 9 TEETH - Call your local BRP dealership
3 504151918 Oil Seal Ass'y
4 371910200 CIRCLIP - Call your local BRP dealership
5 293350060 Ball Bearing This part replaces 504152009.
6 501017400 BEARING PROTECTOR - Call your local BRP dealership
8 415129528 Track Guide This part replaces 415129222.
9 504152651 Cleat This part replaces 504152652.
11 415129528 Track Guide This part replaces 415129222.
12 504152651 Cleat This part replaces 504152652.
14 415129528 Track Guide This part replaces 415129222.
15 504152651 Cleat This part replaces 504152652.
16 504151860 BEARING HOUSING - Call your local BRP dealership
17 414784800 CORK - Call your local BRP dealership
18 501025000 FLANGE - Call your local BRP dealership
19 504152345 Rotation Sensor
20 504152040 MAGNETIC ADAPTOR - Call your local BRP dealership
21 219700417 SYNTHETIC GREASE, 400 G - Call your local BRP dealership
22 233281414 Hex. Flange Elastic Nut M8
23 504152020 COUNTER SHAFT - Call your local BRP dealership
24 504151968 SPACER - Call your local BRP dealership
25 415129555 Ball Bearing Kit This part replaces 504152535.
26 504153089 BEARING HOUSING ASS'Y - Call your local BRP dealership This part replaces 501026900.
27 207782544 Carriage Bolt, M8 X 25
28 232581414 Hex. Elastic Stop Nut M8
29 234081410 Flat Washer 8 mm
30 250000151 HEX. SCREW M10 X 80 - Call your local BRP dealership
31 207102544 Hex. Screw M10 X 25
32 504152252 Spacer
33 504083800 Spacer
34 504152237 SPACER - Call your local BRP dealership
35 293800005 Loctite 271, 10 ml
36 504073700 WASHER - Call your local BRP dealership
37 504152482 CHAINCASE - Call your local BRP dealership
38 503175800 Washer
39 219704461 LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
40 233201414 Hex. Flange Elastic Nut M10
41 293800060 Loctite 243, 10 ml
42 504151946 Adjustment Screw
43 503189148 Washer
44 504151945 SPRING - Call your local BRP dealership
45 503189564 Washer
46 504151954 O-RING - Call your local BRP dealership
47 219700417 SYNTHETIC GREASE, 400 G - Call your local BRP dealership
48 504151940 Chain Tensioner
49 504080200 SPACER - Call your local BRP dealership
50 504080300 WASHER - Call your local BRP dealership
51 405403000 NEEDLE BEARING - Call your local BRP dealership
52 414531300 ROLLER - Call your local BRP dealership
53 732601144 SCREW - Call your local BRP dealership
54 293800005 Loctite 271, 10 ml
55 293200158 Oil Seal This part replaces 415049300.
56 507031500 SPACER - Call your local BRP dealership
57 371901700 CIRCLIP - Call your local BRP dealership
58 414876700 O-RING - Call your local BRP dealership
59 293350115 Ball Bearing This part replaces 504152006.
60 504152587 SHIM - Call your local BRP dealership
62 250000012 HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership
63 371006300 PIN COTTER - Call your local BRP dealership
65 504152238 Pignon À 45 Dents
66 415064300 CIRCLIP, INTERIOR - Call your local BRP dealership
67 415046400 O-Ring
68 504152471 CHAINCASE COVER - Call your local BRP dealership
69 207102544 Hex. Screw M10 X 25
70 210263050 Hex. Flange Screw M6 X 30 This part replaces 210263080.
71 504151703 FILLER CAP ASS'Y - Call your local BRP dealership
72 414969400 O-RING - Call your local BRP dealership
73 413803300 SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
74 414575600 Hair Pin
75 504151921 Plug 1/8”-27
76 504152460 CAP - Call your local BRP dealership
77 504152005 Ball Bearing
